Description
Easily test both 10G Ethernet and USB 2 connected devices in an RF Shielded test environment. Innovative new Patented design is NOT a low pass filter - which can impact data signals.
- Space and cost saving with two interface filters in one housing
- Unique ability to discern between Data and unwanted signals
- 10GBASE-T Ethernet speeds as well as 2.5G and 5G BASE-T
- Passes all USB 2.0 signals while rejecting Cellular, LTE, WiFi and other signals above 700 MHz
- Patented Ethernet filtering design utilizes new approach to filtering high speed data signals
- 80 db isolation in test system from 50 MHz to over 6 GHz
- Rugged machined aluminum construction
- PoE power passing compatible
- Excellent RF Isolation

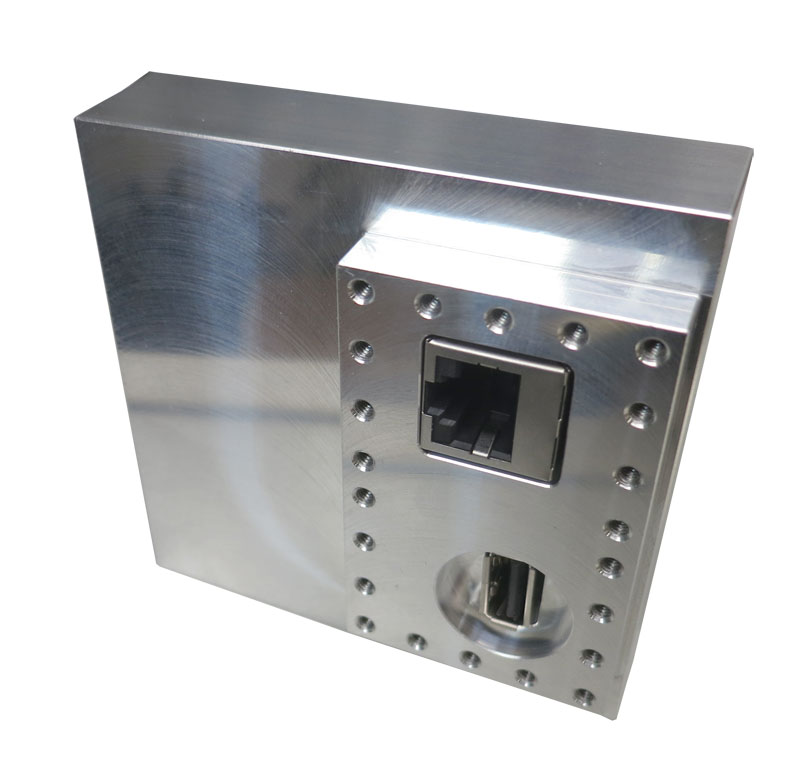

JRE's LAN10G-USB 2 Filter consists of two separate and independent filtered interfaces inside of one rugged machined aluminum housing.
The Ethernet data filter operates on an entirely new principle in data signal filtering. Previous filter designs used low pass filtering on the data lines to attenuate interfering wireless RF signals - however, as data speeds have increased, the data signals fall within the same frequency range as the interfering signals. Thus, simple low pass filtering cannot be used since such a filter will attenuate both the data and the interference.
Our Patented design uses an innovative application of signal phasing techniques and topology to filter out all RF signals except for the desired data signals. This ability to discriminate between data signals and undesired RF signals is especially valuable when testing at Ethernet 10GBASE-T data rates (since the signaling rate falls within Wireless signal frequencies), or when testing devices where the potential RF interfering frequencies fall within the pass band of a low pass filtered interfaces (such as wireless keyfobs or RFID devices).
Fully USB2 and Ethernet 10GBASE-T compliant, correct enumeration process ensures any test ‘hiccups’ will be properly exchanged between devices, ie: no hang-ups are undetected, a problem when using fiber optic or other such interfaces. The filter 'appears' to the connected devices as just a meter or two longer data cable.
The USB interface consists of a balanced pair of bi-directional data lines and an unbalanced power and return pair. Standard USB Type A connectors are used allowing simple and reliable connection to your USB devices. The data line filters pass the up to 480 Mbps of USB Type 1 or 2 data while providing rejection greater than 80dB from 1 GHz through 6 GHz. The power line filters pass the DC power and return while providing rejection greater than 80dB from 400 MHz through 6 GHz. Included is a USB Type A Male to Male jumper cable.
The Ethernet filtered interface consists of balanced pairs of data lines utilizing proprietary signal phasing techniques, there are no low pass filters on any of the data conductors. Standard RJ-45 Female connectors are used allowing simple and reliable connection to your test devices. The data line filtering passes the Ethernet data while providing rejection of 80 dB to undesired RF wireless signals. Included is a short Ethernet male to male jumper cable. Fully compatible with all PoE devices.
Download datasheet: LAN-10G USB 2
Download hole pattern: LAN-USB HOLE LAYOUT
Mounting screws are 4-40 and included with filter. Clearance hole size is 0.1285" diameter - #30 or 3.3mm drill
Features and Benefits
- Reduces interference from signals outside of the desired data
- Two filters in one housing saves money and space
- Ethernet PoE power passing compatible
- Heavy duty machined aluminum case for reliable shielding and ruggedness
- Patented unique Ethernet design discerns between data and RF signals
- Extremely wideband operation, from low VHF through microwave
- Multiple points of attachment secures without rotation or loosening
Specifications
Data Line Balanced Impedance: 90-100 Ohms typical
Insertion loss: Data lines 5 dB, DC resistance 0.1 ohms, 1 A, 60V
Dimensions
Outside: 3.2" H x 3.2" W x 0.8" D (80 x 80 x 20 mm)

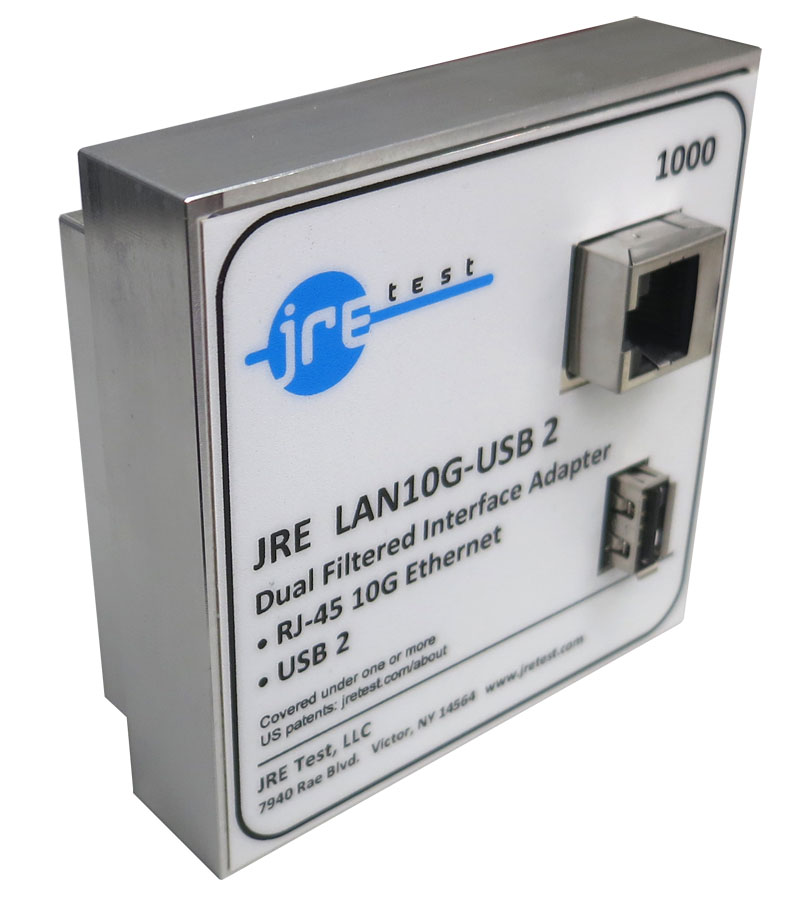

JRE LAN10G-USB 2 Dual Filtered Interface Adapter
LAN Filter: RJ-45 Female jacks
USB Filter: USB Type A Female connectors
Cables included: USB type A 1 meter long M-M, Ethernet RJ-45 1 meter M-M
Power capability: 60 VDC at 1 amp. DC resistance each leg, 0.1 ohms max.
