I/O Interfaces

Showing all 18 results

JRE HDMI-1 HDMI 1.4 (and higher) Filtered Interface
$480.00
HDMI with Ethernet Ver.1.4 compliant filter, usable at higher HDMI versions/speeds using active cables

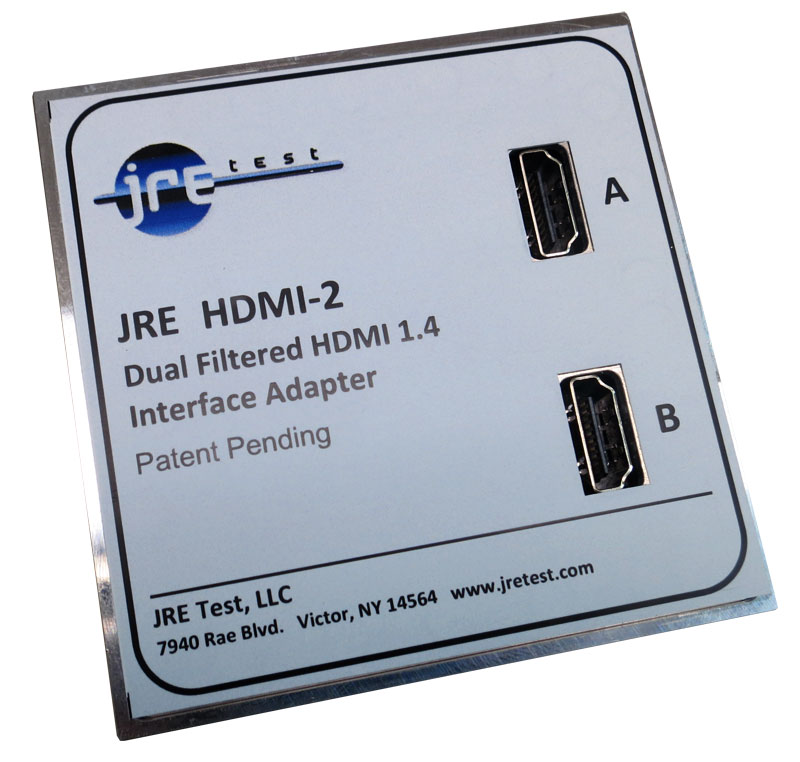

JRE HDMI-2 Dual HDMI 1.4 (and higher) Filtered Interface
$950.00
Dual HDMI with Ethernet Ver.1.4 compliant filter, usable at higher HDMI versions/speeds using active cables
JRE LAN-1 RJ-45 Ethernet 10/100/1000 Filtered Interface
$435.00
Passes all Ethernet 10/100/1000 signals while rejecting Cellular, LTE, WiFi and other signals above 700 MHz. Over 80 db attenuation > 1 GHz with flat response < 480 MHz
JRE LAN-10G-1 RJ-45 Filtered 10GBASE-T Ethernet Interface
$545.00
Test 10GBASE-T Ethernet compliant devices in a shielded RF Enclosure.

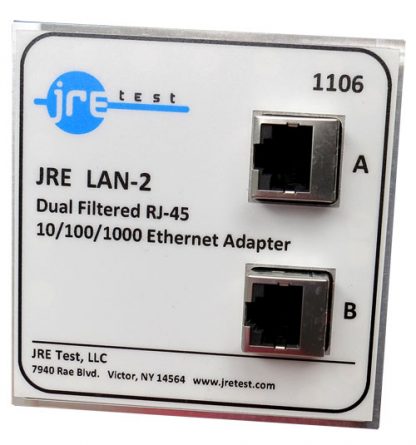

JRE LAN-2 Dual Ethernet 10/100/1000 Filtered Interface
$815.00
Dual Channel Ethernet filtered interface. RJ-45 Ethernet 10/100/1000 passes Ethernet while rejecting Cellular, LTE, WiFi and other signals above 700 MHz.

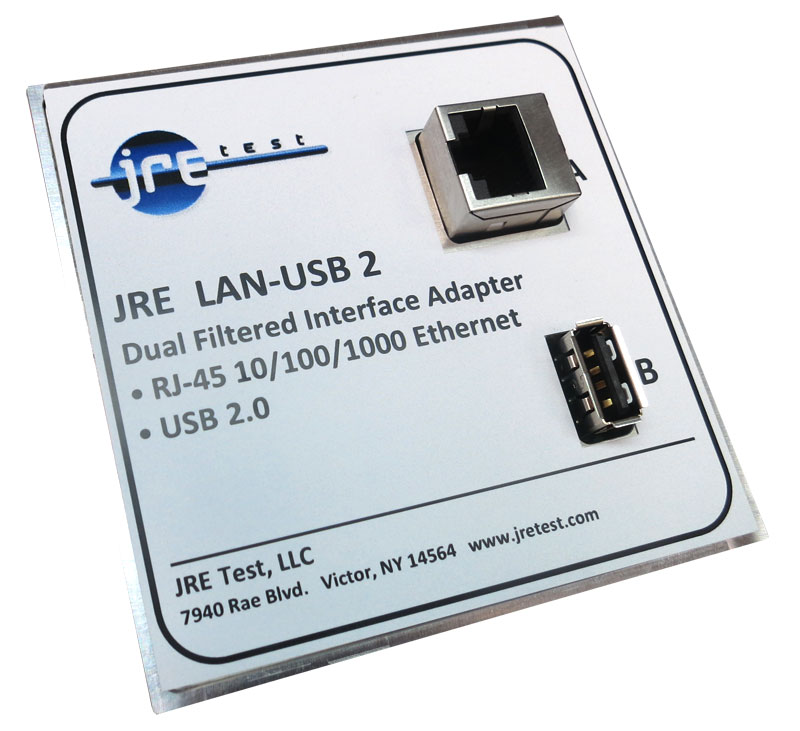

JRE LAN-USB 2 Dual Filtered Interface: RJ-45 Ethernet and USB 2
$770.00
Dual filtered interface in one housing. RJ-45 Ethernet 10/100/1000 and USB 2 filter.

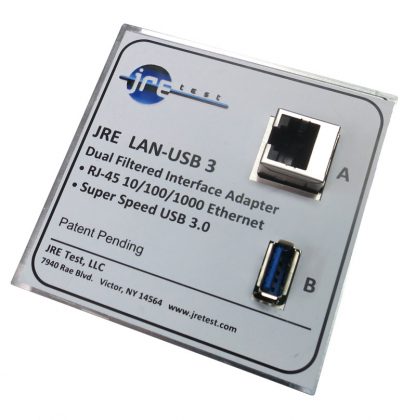

JRE LAN-USB 3 Dual Filtered Interface: RJ-45 Ethernet and USB 3 ‘Super Speed’
$880.00
Dual filtered interface in one housing. RJ-45 10/100/1000 Ethernet and USB 3 'Super Speed'.

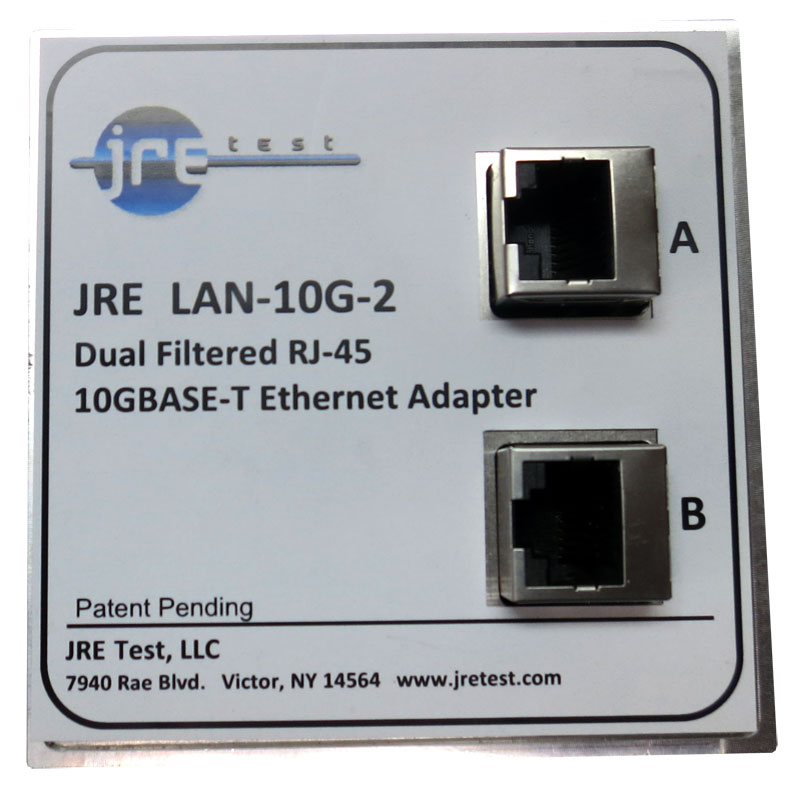

JRE LAN10G-2 Dual Filtered Interface: 10GBASE-T Ethernet
$1,060.00
Dual filtered interface in one housing. 10GBASE-T Ethernet

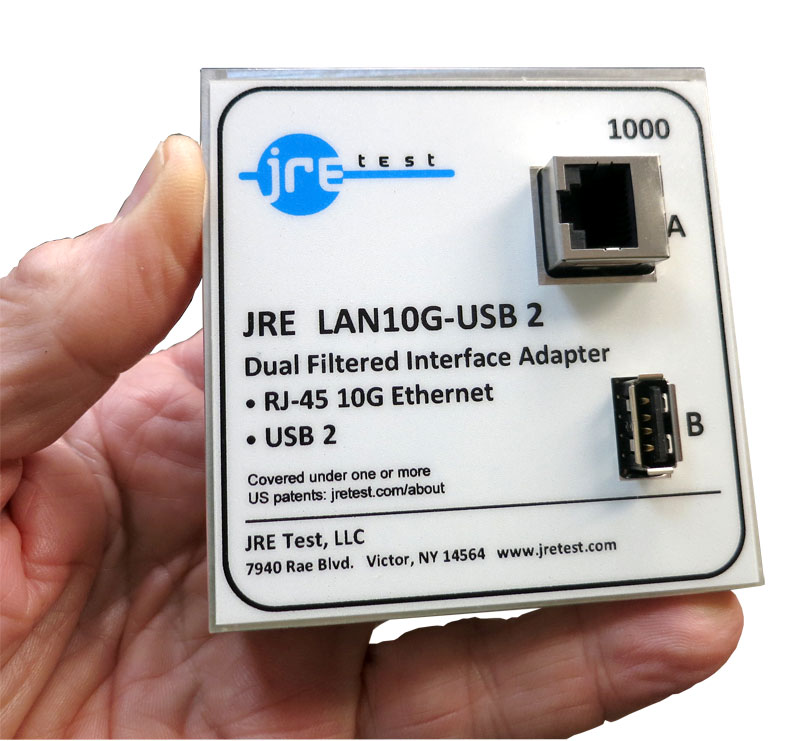

JRE LAN10G-USB 2 Dual Filtered Interface: 10GBASE-T Ethernet and USB 2
$880.00
Dual filtered interface in one housing. 10GBASE-T Ethernet and USB 2
JRE LAN10G-USB 3 Dual Filtered Interface: 10GBASE-T Ethernet and USB 3 ‘Super Speed’
$995.00
Dual filtered interface in one housing. 10GBASE-T Ethernet and USB 3 'Super Speed'.
JRE MS-1 Magnetic Switch for door
$90.00
JRE Magnetic door switch
JRE PEM-1 Filtered Power Entry Module
$249.00
Provides RF filtered AC line mains power to devices within the test chamber
JRE UFI-1 Universal Filtered Interface
$445.00
Eight independent filtered lines allow connections for virtually any device, ideal for: Automotive Ethernet, CAN, DSI Bus, BroadR, 100/1000BaseT1, FlexRay, 802.3, LVDS, CML, RS232/422/485, Audio, TRS/XLR, 20mA current loop
JRE USB 2-1 USB 2.0 High Speed Filtered Interface
$369.00
Test USB 2.0 compliant devices in a shielded RF Enclosure.
JRE USB 2-2 Dual USB 2.0 High Speed Filtered Interface
$725.00
Dual channel USB 2.0 filter. Test USB 2.0 compliant devices in a shielded RF Enclosure.
JRE USB 3-1 USB 3.0 ‘SuperSpeed’ Filtered Interface
$480.00
Test USB 3.0 'Super Speed' compliant devices in a shielded RF Enclosure.
JRE USB 3-2 Dual USB 3.0 ‘SuperSpeed’ Filtered Interface
$950.00
Dual channel USB 3.0 'Super Speed' filter. Test USB 3.0 compliant devices in a shielded RF Enclosure.
JRE USB C-1 USB Type C ‘SuperSpeed’ Filtered Interface
$549.00
Test USB C Type 'Super Speed' compliant devices in a shielded RF Enclosure.
