JRE 3036 RF Shielded Test Enclosure

$4,595.00

Inside dimensions: 34.5″ H x 26″ W x 28.5″ D (875 x 660 x 725 mm)

SKU: JRE 3036 Category:

Description

Our largest benchtop enclosure - ideal for tall RF devices

  • Roomy 34.5 x 26 x 28.5 inches 875 x 725 x 660 mm inside
  • Rugged multiple hinges keep door sealed RF tight
  • Includes 'honeycomb' style vents, fans optional
  • Wide selection of I/O options using three of our universal I/O plates!
  • Rugged welded aluminum construction
  • Quad ganged latches ensure tight RF shielding
  • Keyed locking latch available (add $29)
  • Please note that test chambers do not include any RF connectors or interface filters.
    Any connections to a device inside the chamber have to be suitably filtered in order to maintain shielding isolation. See "Filtered Interface and Connector I/O Options" below for details.

For testing tall devices, the JRE 3036 is ideal! Large enough to fit entire computer systems inside, as well as their associated components, everything will be securely isolated from the outside world. Our exclusive ‘honeycomb’ vent allows ventilation while still maintaining superb RF isolation, fans may be optionally added.

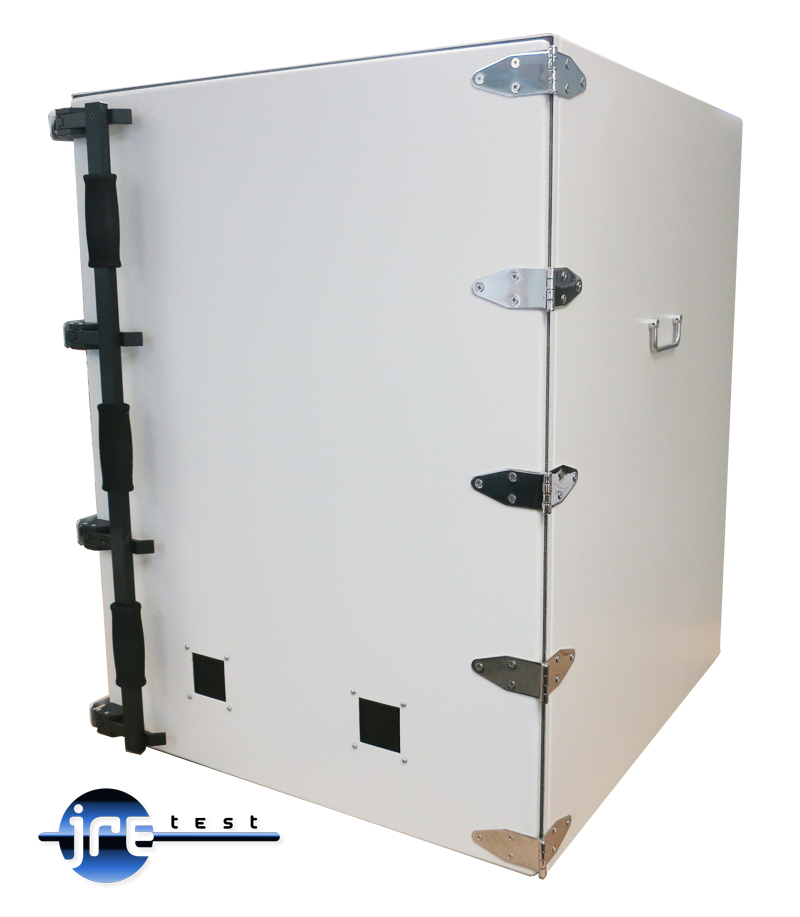

Featuring rugged welded aluminum construction, you can be assured of its tight RF shielding effectiveness. Long life door gasket material along with double edge engagement not only provides solid RF shielding, but smooth trouble free operation over its lifespan. Rugged quad ganged lockable latches ensures tight RF shielding while five heavy duty stainless steel hinges minimizes door droop for smooth, secure closure.

Our wide selection of I/O connectors allow almost any device to be interfaced inside the enclosure, and internal electromagnetic absorbing material reduces RF reflections and hot-spots.

Download datasheet: JRE3036

Features and Benefits

  • Double contact door shields ensures repeatable measurements

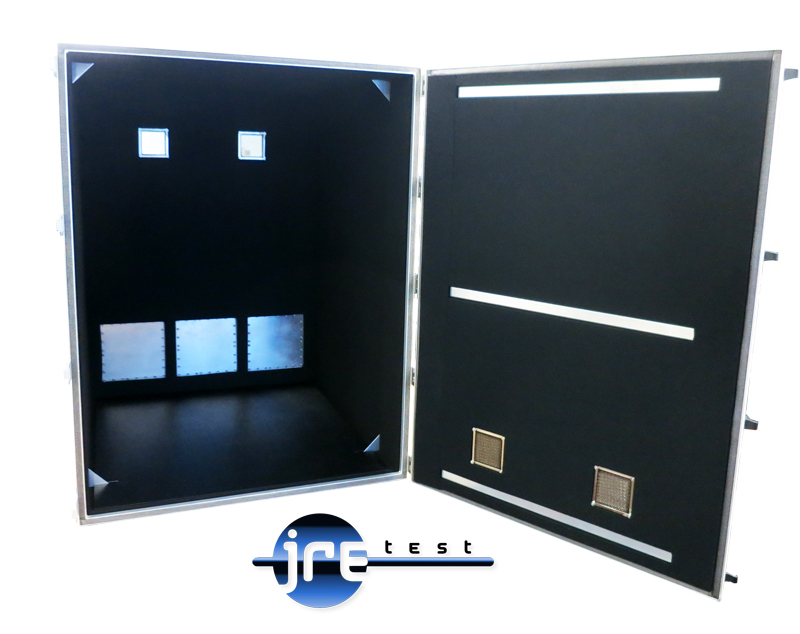

  • 3/4" (19 mm) thick RF absorbing foam deadens standing waves and reflections
  • Heavy duty stainless steel friction hinges
  • Rugged welded aluminum construction for long life
  • Wide variety of connector options for every use
  • Includes 'honeycomb' style vents, fans optional

Connectors

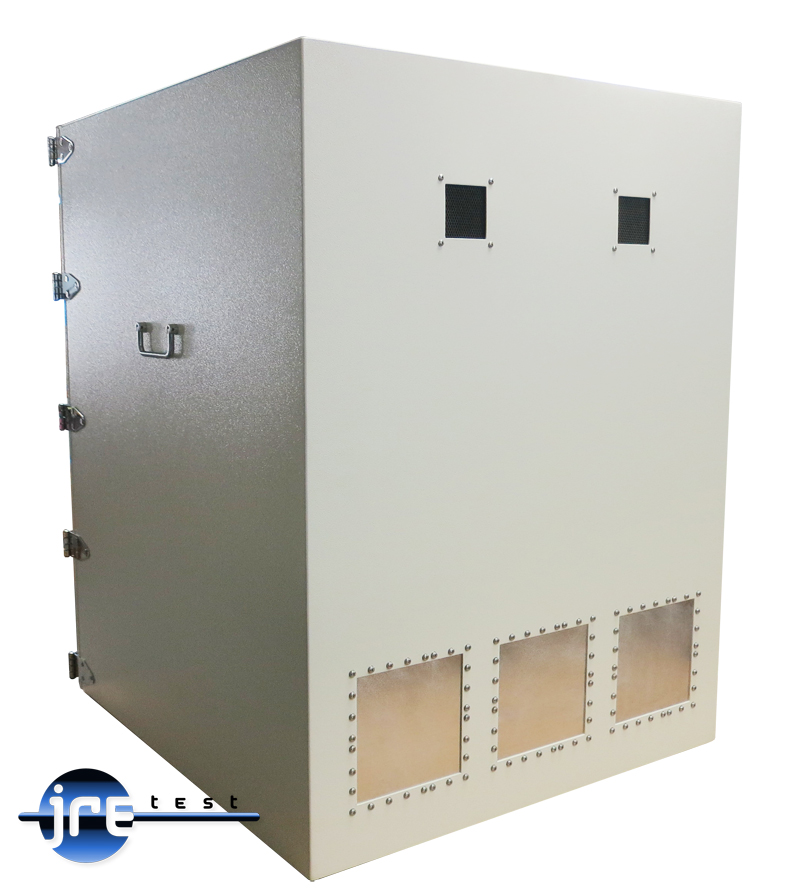

Three universal I/O plates (7" x 7" 180 x180mm) with incredible connector options. Easily changed in the field for multiple uses. JRE Test "C" size I/O plates.

Isolation

-100dB from DC to 1GHz, -95dB to 3GHz, -85dB to 6GHz

All JRE Test chambers, and many JRE filtered interfaces, can be optionally ordered to operate to 28 GHz @ > 85dB isolation, contact the factory for details

Dimensions and weights

Outside: 36" H x 27.5" W x 30" D
915 x 700 x 760 mm
Inside: 34.5" H x 26" W x 28.5" D
875 x 660 x 725 mm
Weight: 85 lbs  38.6 kg
Shipping weight and dimensions: 153 lbs  69.5 kg
49" x 41" x 36", 1245mm x 1040mm x 915mm

JRE 3036 Filtered Interface and Connector I/O Options

Configuring your JRE RF Test Chamber is simple, fast and easy. Choose from these ready-to-go I/O plates with the most common filtered interfaces and connectors and your test chamber can be shipped in just a few days - or have a custom design in about a week, with whatever connectors and filtered interfaces you desire. To help organize your thoughts on what interfaces and connectors you may need, here is a link to a handy 'Configuration Worksheet'.

See all the Fast-Track, in stock I/O plates with the most common filtered interfaces and connectors here.

Want a different set of connectors or filtered interfaces? Contact JRE with your requirements and a custom I/O plate will be designed expressly for your test chamber. This plate will then be populated with the selected interfaces, mounted on the test chamber, final tested and then shipped to you. Other options such as fans, vents. internal AC power strips, fiber optic connectors can all be accommodated. JRE’s extensive inventory allows us to ship your custom configured test chamber in as little as one week!





The world leader for a reason...

JRE’s RF Test chambers are used by hundreds of test labs and production facilities throughout the world. Fast off-the-shelf delivery, superb technical support and leading edge patented designs help you to confidently design and test any wireless product with exact, repeatable results. The industry's widest line of standard RF test enclosures provides superior isolation from VLF to over 6 GHz, covering the entire range of popular commercial, private and government communications systems. Need to go higher for 5G or microwave tests? Our 'Enhanced' option provides industry leading isolation all the way up to 28 GHz. Whether you are designing, integrating, or production testing the next generation Wi-Fi, WLAN, 5G Cellular, or IoT, you can rely on JRE to ensure your tests are reliable and repeatable.
