JRE LAN10G-2 Dual Filtered Interface: 10GBASE-T Ethernet


Dual filtered interface in one housing. 10GBASE-T Ethernet

SKU: JRE LAN10G-2 Category:

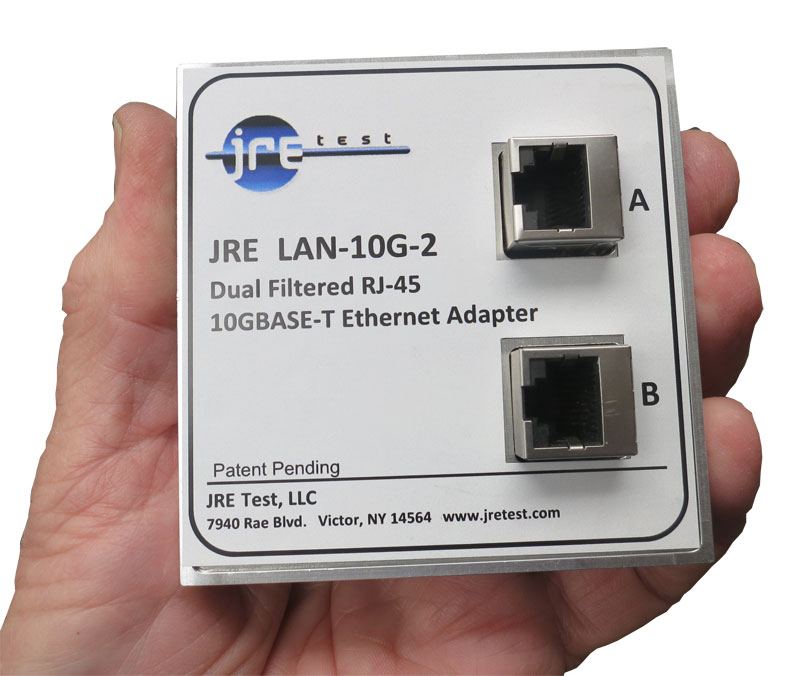

JRE LAN-10G-2 Dual RJ-45 Filtered 10GBASE-T Ethernet Interface

Easily test 10GBASE-T Ethernet devices in an RF Shielded test environment! Innovative new Patented design is NOT a low pass filter - which can impact data signals

  • Space and cost saving with two interface filters in one housing
  • Unique ability to discern between Data and unwanted signals
  • 10GBASE-T Ethernet speeds as well as 2.5G and 5G BASE-T
  • Patented filtering design utilizes new approach to filtering high speed data signals
  • 80 db isolation in test system from 50 MHz to over 6 GHz
  • Rugged machined aluminum construction
  • PoE power passing compatible
  • Excellent RF Isolation

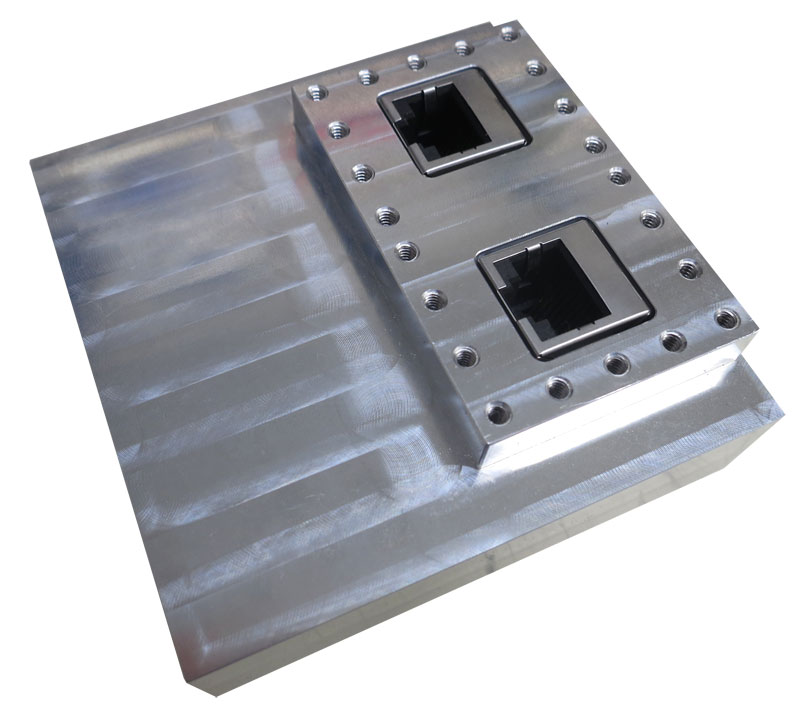

The JRE LAN-10G-2 Filtered Interface consists of two Ethernet 10GBASE-T compliant filters, using standard RJ-45 connectors, inside a single machined aluminum housing which provides exceptional RF shielding on all data and power lines.

These data filters operate on an entirely new principle in data signal filtering. Previous filter designs used low pass filtering on the data lines to attenuate interfering wireless RF signals - however, as data speeds have increased, the data signals fall within the same frequency range as the interfering signals. Thus, simple low pass filtering cannot be used since such a filter will attenuate both the data and the interference.

Our Patented design uses an innovative application of signal phasing techniques and topology to filter out all RF signals except for the desired data signals. This ability to discriminate between data signals and undesired RF signals is especially valuable when testing at both Ethernet 10GBASE-T and USB 3 Super Speed data rates (since the signaling rate falls within Wireless signal frequencies), or when testing devices where the potential RF interfering frequencies fall within the pass band of a low pass filtered interfaces (such as wireless keyfobs or RFID devices).

Fully Ethernet 10GBASE-T compliant with direct 'copper' connection between RJ-45 ports, this ensures any test ‘hiccups’ will be properly exchanged between devices, ie: no hang-ups are undetected, a problem when using fiber optic or other such interfaces. The filter 'appears' to the devices as a couple meter long Ethernet cable.

The Ethernet filtered interface consists of balanced pairs of data lines utilizing proprietary signal phasing techniques, there are no low pass filters on any of the data conductors. Standard RJ-45 Female connectors are used allowing simple and reliable connection to your test devices. The data line filtering passes the Ethernet data while providing rejection of 80 dB to undesired RF wireless signals. Included is a short Ethernet male to male jumper cable. Fully compatible with all PoE devices. Includes two M-M Ethernet cable with RJ-45 connectors.

Tight RF shielding to the enclosure wall is assured by the use of a series of 4-40 size mounting screws (template included for stand alone installation). Tests made on competitive filters utilizing a single hole mount with large securing nut were prone to leakage since the coarse thread pitch does not allow a reliable flat seat against the enclosure wall. Additionally, the single mechanical point of securing the filter is subject to loosening and even a tiny loss of tightness results in leakage. Our specifications are measured with the filter installed in an enclosure - and with the same reliability no matter how many times connectors are inserted or the filter bumped or jostled. The smaller size also allows more filters on the I/O plate.

Download datasheet: LAN10G-2

Download hole pattern: LAN-2 HOLE LAYOUT
Mounting screws are 4-40 and included with filter. Clearance hole size is 0.1285" diameter - #30 or 3.3mm drill

Features and Benefits

  • Reduces interference from signals outside of the desired data
  • Two filters in one housing saves money and space
  • Low loss, appears to the devices as just a longer Ethernet cable
  • Ethernet PoE power passing compatible
  • Heavy duty machined aluminum case for reliable shielding and ruggedness
  • Patented unique design discerns between data and RF signals
  • Extremely wideband operation, from low VHF through microwave
  • Multiple points of attachment secures without rotation or loosening


Data Line Balanced Impedance:  90-100 Ohms typical

Insertion loss:  Data lines 5 dB, DC resistance 0.1 ohms, 1 A, 60V


Outside: 3.2" H x 3.2" W x 0.8" D (80 x 80 x 20 mm)

JRE LAN10G-2 Dual RJ-45 Filtered 10GBASE-T Ethernet Interface Adapter

LAN Filter: RJ-45 Female jacks

Cables included: Ethernet RJ-45 1 meter M-M

Power capability: 60 VDC at 1 amp. DC resistance each leg, 0.1 ohms max.


JRE Test’s RF Shielded Test Enclosures deliver real value and save time over in-house fabricated test solutions. Our fast off-the-shelf delivery, unbeatable price and performance make us the first choice for all your RF test needs. The industry's widest line of enclosures provides superior RF isolation from 10 MHz to over 6 GHz, covering the entire range of popular commercial, private and government communications systems. Whether you are designing, integrating, or conformance testing the next generation Wi-Fi, WLAN, 3G Cellular device, you can rely on JRE Test to provide a seamless solution that is compatible with today’s technology and is ready for the future.
