JRE 2830 RF Shielded Test Enclosure

Large benchtop RF shielded test enclosure with three I/O plates for tremendous interface capability — ideal for testing multiple devices in one chamber, or large devices that need plenty of connections.

• Roomy 18.5 x 26.5 x 28.5 inches inside (470 x 670 x 725 mm) in a 28" wide x 30" deep package
• Excellent RF shielding isolation: −100 dB DC to 1 GHz, −95 dB to 3 GHz, −85 dB to 6 GHz
• Three removable C-size I/O plates for a wide selection of I/O options — tremendous interface capability, reconfigurable as your test needs change
• Light weight — only 60 lbs! Compare to similar products that weigh over 100 lbs
• Includes 'honeycomb' style vents — optional fans available

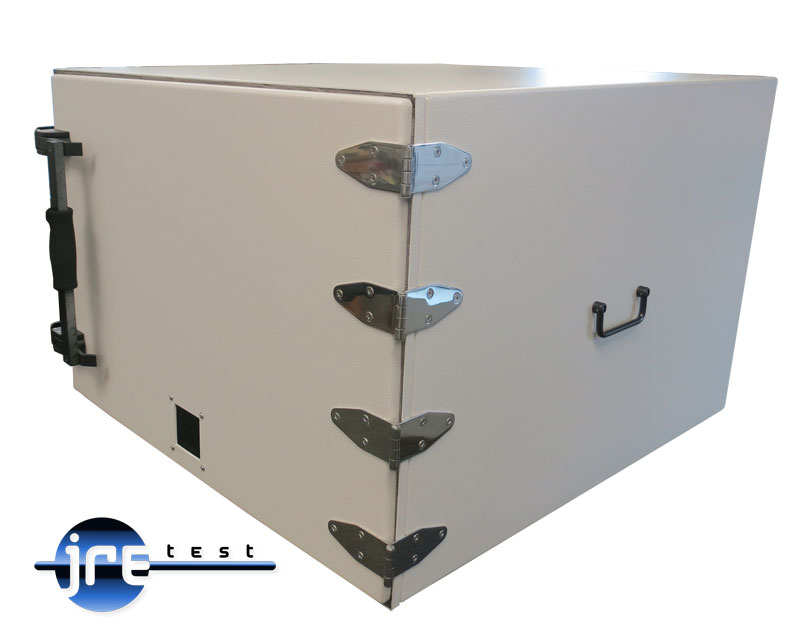

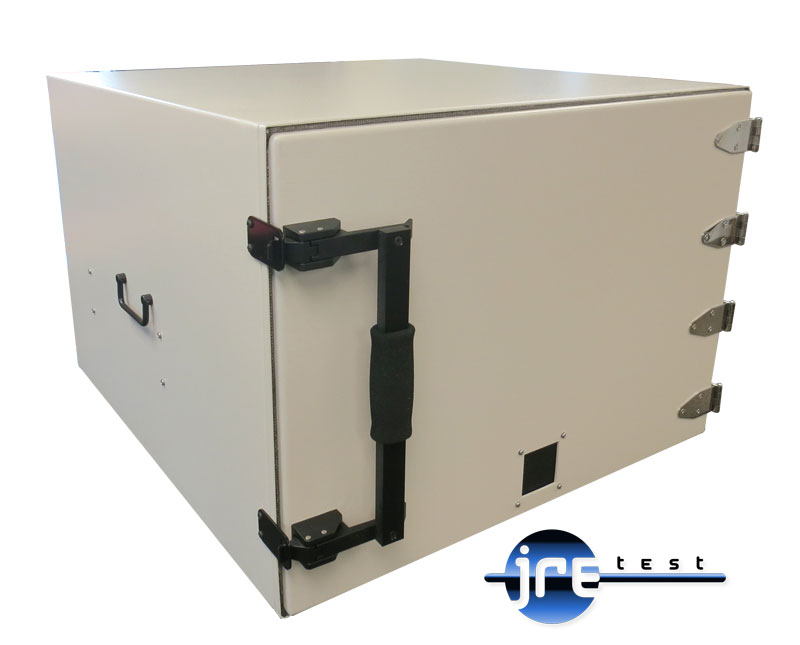

• Quad hinges and single-handle door closure keep the door sealed RF-tight for speedy testing
• Keyed locking latch available (add $29)
• Rugged welded aluminum construction, made in the USA on our own fabrication line
• Optional MW upgrade extends isolation to 28 GHz for 5G FR2, UWB, and Wi-Fi 6E/7 work
• Please note: test chambers do not include any RF connectors or interface filters. Any connection to a device inside the chamber must be suitably filtered to maintain shielding isolation. See the filtered interface and connector options below.

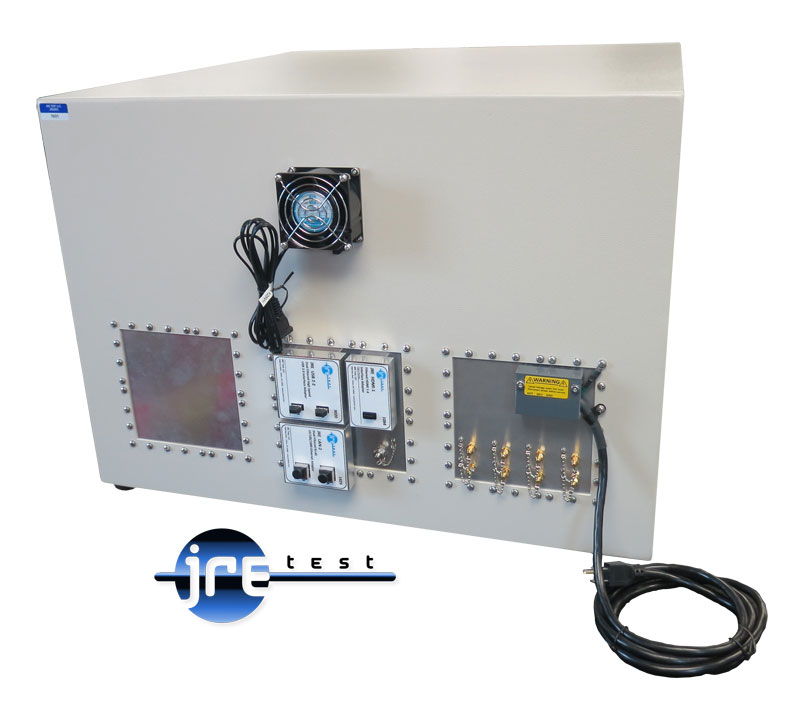

Three Plates, Tremendous Interface Capability

Ideal for testing multiple devices in one enclosure — or just large devices — the JRE 2830 is perfectly suited for your tests. Triple I/O plates allow tremendous interface capability, room to populate a large mix of connectors and filtered interfaces across three plates, which is exactly what multi-device and high-channel-count setups demand. Our exclusive honeycomb vents allow ventilation while still maintaining superb RF isolation, and fans may be optionally added. Easy access comes via our single-handle door closure for speedy testing and reliable operation over time. If you need the largest standard chamber we make, the JRE 3036 offers three plates in an even taller interior for entire computer systems.

Featuring rugged welded aluminum construction, you can be assured of its tight RF shielding effectiveness. Long-life door gasket material along with our double-edge contact engagement provides solid RF shielding and smooth, trouble-free operation over the life of the chamber. The extra-wide opening makes placement of internal devices easy. Inside, LS-30 RF absorbing foam tames reflections and hot-spots so your measurements stay clean and repeatable.

The Removable I/O Plate — Your Chamber Never Becomes Obsolete

Every JRE chamber uses a removable, CNC-machined I/O plate — a design JRE engineers originated over forty years ago. The three C-size plates recess into the chamber wall and do not intrude into your test volume. Because they swap out in the field with a few screws, one 2830 can be reconfigured for many different test setups over its life. Our wide selection of filtered I/O interfaces — USB, Ethernet, power, HDMI and more — lets almost any device be connected inside while keeping the RF environment sealed up tight. Browse the C-size populated I/O plates for the most common pre-built configurations.

Not sure what connections you need? The Configuration Worksheet is a quick way to organize your interface and connector needs before you order. Tell us exactly what RF connectors and filtered interfaces you require and we will build and final-test your chamber in the exact configuration you will be using.

Download datasheet: JRE2830

• Double contact door shields ensures repeatable measurements
• 3/4” (19 mm) thick RF absorbing foam deadens standing waves and reflections. Temperature rating of 90 degrees Celsius, UL 94V-0 flammability rating
• Heavy duty quad stainless steel hinges
• Includes 'honeycomb' style vents, fans optional
• Rugged welded aluminum construction for long life
• Wide variety of connector options for every use

Triple universal I/O plates (7" x 7" 180 x180mm) with incredible connector options. Easily changed in the field for multiple uses. JRE Test "C" size I/O plate.

-100dB from DC to 1GHz, -95dB to 3GHz, -85dB to 6GHz

All JRE Test chambers, and many JRE filtered interfaces, can be optionally ordered to operate to 28 GHz @ > 85dB isolation, contact the factory for details

Outside: 20" H x 28" W x 30" D
510 x 710 x 760 mm
Inside: 18.5" H x 26.5" W x 28.5" D
470 x 670 x 725 mm
Weight: 60 lbs  27.3kg
Shipping weight and dimensions: 129 lbs  58.6 kg
42" x 42" x 30", 1070mm x 1070mm x 760mm

Configuring your JRE RF Test Chamber is simple, fast and easy. Choose from these ready-to-go I/O plates with the most common filtered interfaces and connectors and your test chamber can be shipped in just a few days - or have a custom design in about a week, with whatever connectors and filtered interfaces you desire. To help organize your thoughts on what interfaces and connectors you may need, here is a link to a handy 'Configuration Worksheet'.

See all the Fast-Track, in stock I/O plates with the most common filtered interfaces and connectors here.

Want a different set of connectors or filtered interfaces? Contact JRE with your requirements and a custom I/O plate will be designed expressly for your test chamber. This plate will then be populated with the selected interfaces, mounted on the test chamber, final tested and then shipped to you. Other options such as fans, vents. internal AC power strips, fiber optic connectors can all be accommodated. JRE’s extensive inventory allows us to ship your custom configured test chamber in as little as one week!

JRE’s RF Test chambers are used by hundreds of test labs and production facilities throughout the world. Fast off-the-shelf delivery, superb technical support and leading edge patented designs help you to confidently design and test any wireless product with exact, repeatable results. The industry's widest line of standard RF test enclosures provides superior isolation from VLF to over 6 GHz, covering the entire range of popular commercial, private and government communications systems. Need to go higher for 5G or microwave tests? Our 'Enhanced' option provides industry leading isolation all the way up to 28 GHz. Whether you are designing, integrating, or production testing the next generation Wi-Fi, WLAN, 5G Cellular, or IoT, you can rely on JRE to ensure your tests are reliable and repeatable.
