RF Shielded Test Enclosure — Benchtop — JRE 0709-P

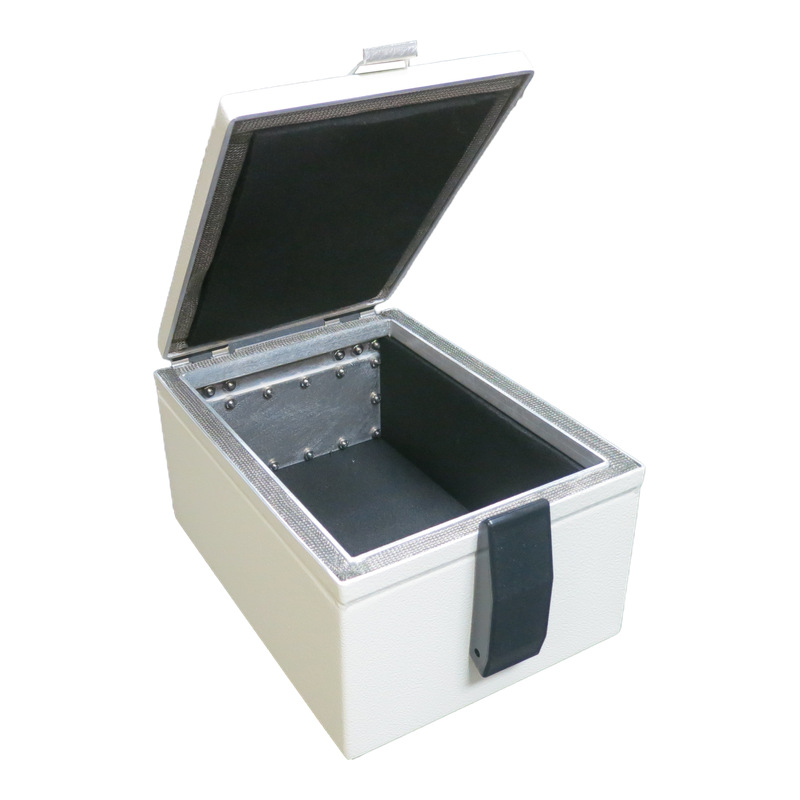

JRE 0709 supplied with a field-replaceable A-size I/O plate, configured to the connectors and filtered interfaces you specify.
JRE 0709-P specifications
- Inside dimensions
- 3.375" H x 6.0" W x 8.5" D (85 x 150 x 215 mm)
- Outside dimensions
- 4.625" H x 7.25" W x 9.75" D (115 x 185 x 250 mm)
- Isolation
- −100 dB DC to 1 GHz, −95 dB to 3 GHz, −85 dB to 6 GHz
- Weight
- 5 lbs (2.3 kg)
- Shipping Weight
- 6 lbs (2.7 kg)
- Shipping Dimensions
- 13" x 10" x 9" (330mm x 255mm x 230mm)
- RF Absorbing Foam
- 1/2" (13 mm) thick LS-30, temp rating 90°C, UL 94V-0
- I/O Plate Size
- A-size
- Construction
- Rugged welded aluminum
- Hinges
- Dual heavy duty stainless steel friction hinges
JRE 0709-P overview
The JRE 0709-P is the compact starting point when the enclosure size is settled but the wall connections need to be chosen around the test. Its removable plate keeps the enclosure useful as those connections change, without consuming the internal test volume.
- Interior measures 3.375" H x 6.0" W x 8.5" D (85 x 150 x 215 mm).
- Outside dimensions are 4.625" H x 7.25" W x 9.75" D (115 x 185 x 250 mm).
- A-size I/O plate is field-replaceable with simple hand tools for later reconfiguration.
- RF connectors and interface filters are not included, leaving the plate configuration open.
- Isolation is −100 dB from DC to 1 GHz, −95 dB to 3 GHz, and −85 dB to 6 GHz.
- 1/2" (13 mm) LS-30 RF absorbing foam reduces reflections and hot-spots.
- Welded aluminum construction and dual stainless steel friction hinges support regular bench handling.
The 0709-P is $645.00 and in stock. I would choose it when the A-size plate needs to follow your own mix of filtered interfaces and RF connectors. The open configuration is the point: settle those wall connections around the test before the plate is populated.
