RF Shielded Test Enclosure — Benchtop — JRE 2220A
Large clamshell enclosure with gas-assisted opening, a 13" H x 20.5" W x 18.5" D interior, and two C-size I/O plates.
JRE 2220A specifications
- Inside dimensions
- 13" H x 20.5" W x 18.5" D (330 x 520 x 470 mm)
- Outside dimensions
- 14.5" H x 22" W x 20" D (370 x 560 x 510 mm)
- Isolation
- −100 dB DC to 1 GHz, −95 dB to 3 GHz, −85 dB to 6 GHz
- Weight
- 35 lbs 16 kg
- Shipping Weight
- 42 lbs 19.1 kg
- Shipping Dimensions
- 26" x 26" x 21" (660mm x 660mm x 535mm)
- I/O Plates
- Two C-size (7" x 7" / 180 x 180mm), removable
- RF Absorbing Foam
- 3/4" (19 mm) thick, LS-30, UL 94V-0, 90°C rated
- Construction
- Rugged welded aluminum, made in USA
- Optional MW Upgrade
- > 85 dB isolation to 28 GHz
JRE 2220A overview
Repeatedly cycling a large DUT through the chamber makes loading motion part of the test workflow. The JRE 2220A gives the operator a short path into the chamber, with top access that avoids reaching through a raised doorway. Gas struts assist the clamshell lid and hold it in place.
- Interior: 13" H x 20.5" W x 18.5" D (330 x 520 x 470 mm) for larger connected devices.
- Outside: 14.5" H x 22" W x 20" D (370 x 560 x 510 mm) on the bench.
- Isolation: −100 dB DC to 1 GHz; −95 dB to 3 GHz; −85 dB to 6 GHz.
- Two field-changeable C-size plates: 7" x 7" (180 x 180 mm) for substantial I/O capacity.

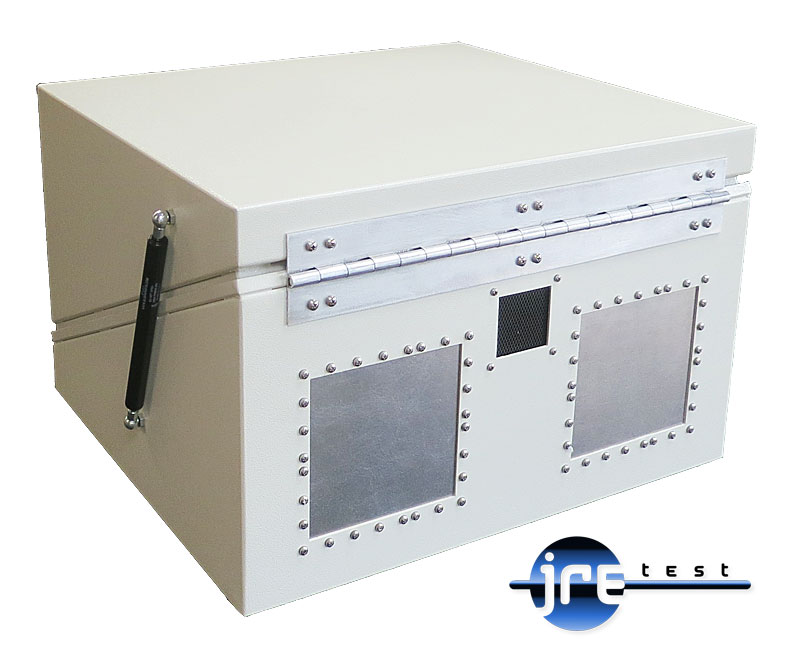

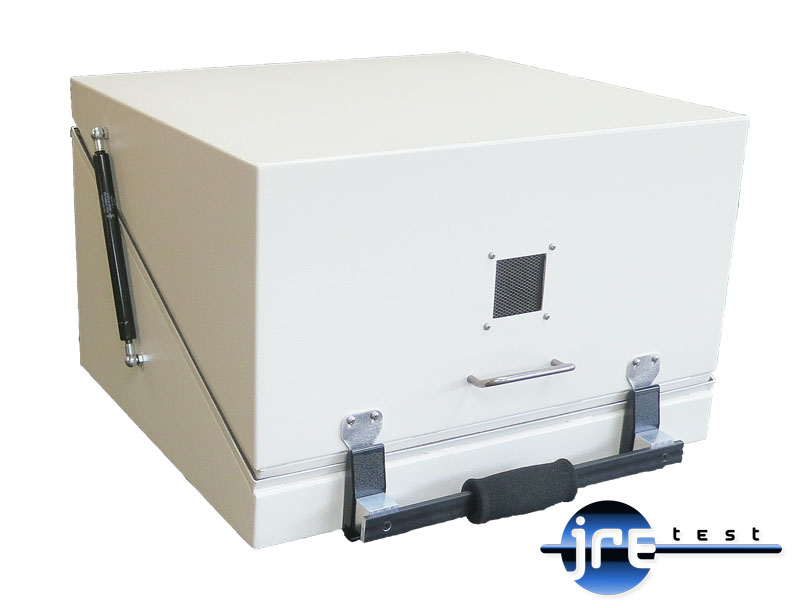

- Piano-style hinge and single-handle closure for aligned, fast lid operation.
- Two honeycomb vents with optional fans for additional cooling.
- Optional MW upgrade extends isolation to > 85 dB through 28 GHz.
The 2220A is in stock at $3,095.00 and ships without RF connectors or interface filters. I recommend it when the clamshell loading motion and larger interior earn their place on the bench. When the same top-opening workflow fits a smaller DUT, the JRE 1522 keeps that format in a more compact enclosure.
