Vented and two I/O plate capability
- Roomy 13.5 x 20.5 x 17 inches 340 x 520 x 430 mm inside
- Two universal I/O plates for wide selection of I/O options
- Includes 'honeycomb' style vents, fans optional
- Easily holds laptops, SFF computers
- Convenient single handle allows easy door operation
- Rugged welded aluminum construction
- Dual latches and triple hinges ensure tight RF shielding
- Excellent RF Isolation
- Please note that test chambers do not include any RF connectors or interface filters.
Any connections to a device inside the chamber have to be suitably filtered in order to maintain shielding isolation. See "Filtered Interface and Connector I/O Options" below for details.

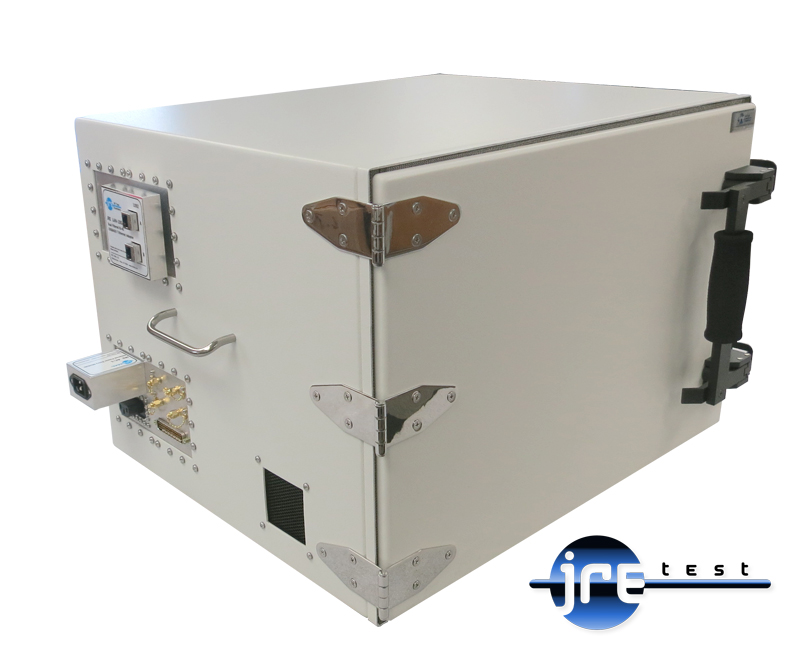

Breeze through laptop RFI and wireless tests with the ‘bigger than-a-breadbox’ JRE 2218!
Like its other brothers in the JRE test line, it features rugged welded aluminum construction with superb RF shielding effectiveness. Long life door gasket material along with double edge engagement not only provides solid RF shielding, but smooth trouble-free operation over its lifespan. Included honeycomb vents keeps inside cool, fans available as option.
Universal I/O plates allow almost any device to be interfaced inside the enclosure, and internal electromagnetic absorbing material reduces RF reflections and hot-spots.
Download datasheet: JRE2218
Features and Benefits
- Double contact door shields ensures repeatable measurements
- 3/4" (19 mm) thick RF absorbing foam deadens standing waves and reflections
- Heavy duty triple stainless steel hinges
- Convenient single handle opening speeds tests
- Honeycomb style vents included
- Rugged welded aluminum construction for long life
- Wide variety of connector options for every use

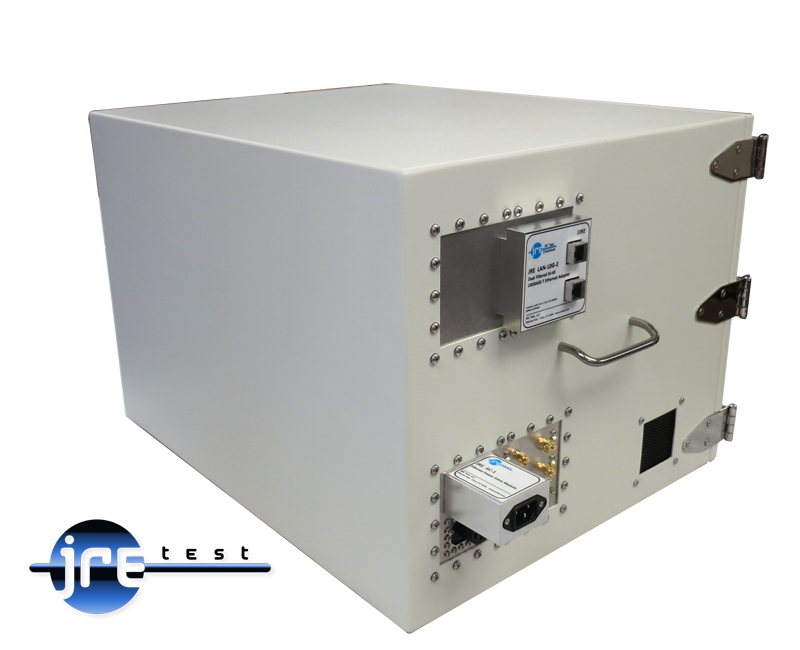

Two universal I/O plates (4.5" x 7" 115 x180mm) with incredible connector options. Easily changed in the field for multiple uses. JRE Test "B" size I/O plate.
-100dB from DC to 1GHz, -95dB to 3GHz, -85dB to 6GHz
All JRE Test chambers, and many JRE filtered interfaces, can be optionally ordered to operate to 28 GHz @ > 85dB isolation, contact the factory for details
Outside: 15" H x 22" W x 18.5" D
381 x 560 x 470 mm
Inside: 13.5" H x 20.5" W x 17" D
340 x 520 x 430 mm
Weight: 31 lbs 14.1 kg
Shipping weight and dimensions: 37 lbs 16.8 kg
29" x 24" x 20", 740mm x 610mm x 510mm
JRE 2218 Connectors and filtered interface I/O Options
Configuring your JRE RF Test Chamber is simple, fast and easy. Choose from these ready-to-go I/O plates with the most common filtered interfaces and connectors and your test chamber can be shipped in just a few days - or have a custom design in about a week, with whatever connectors and filtered interfaces you desire. To help organize your thoughts on what interfaces and connectors you may need, here is a link to a handy 'Configuration Worksheet'.
Want a different set of connectors or filtered interfaces? Contact JRE with your requirements and a custom I/O plate will be designed expressly for your test chamber. This plate will then be populated with the selected interfaces, mounted on the test chamber, final tested and then shipped to you. Other options such as fans, vents. internal AC power strips, fiber optic connectors can all be accommodated. JRE’s extensive inventory allows us to ship your custom configured test chamber in as little as one week!
