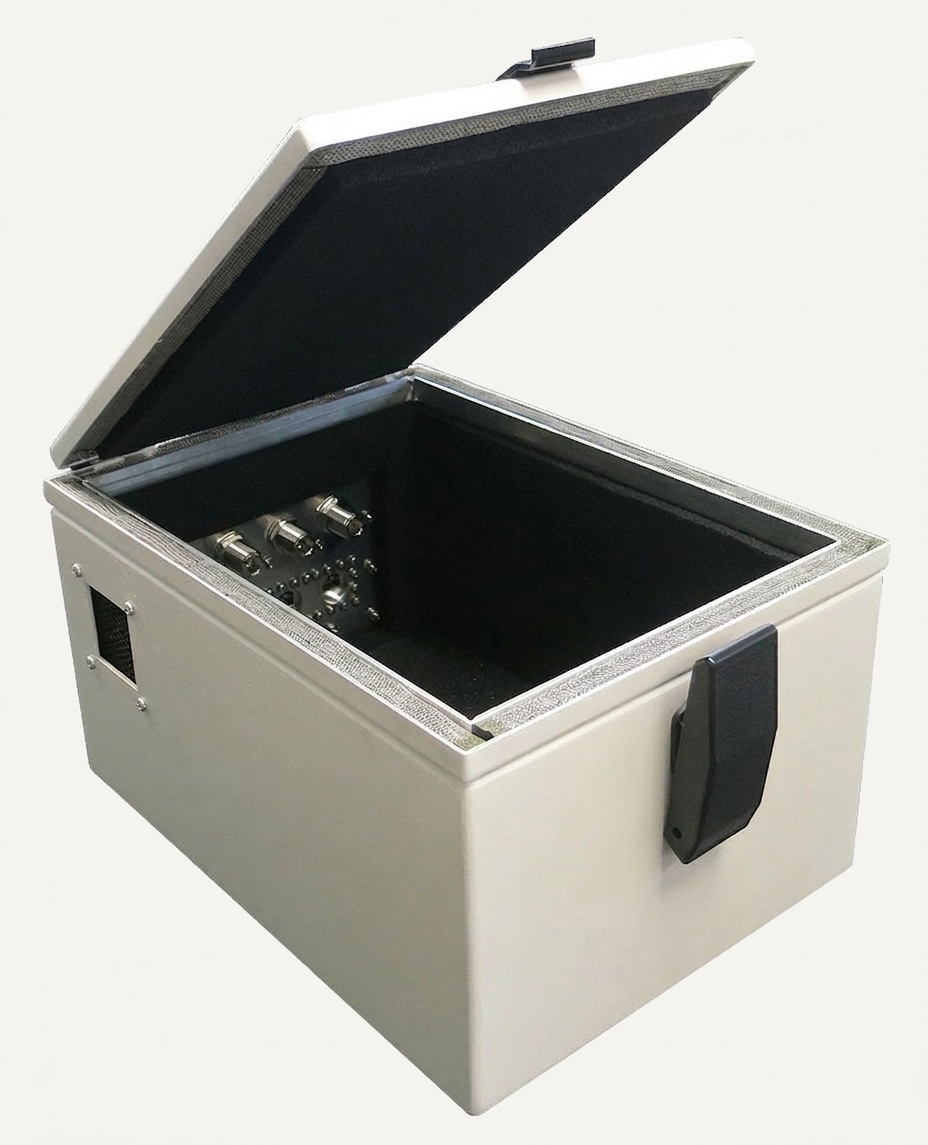

JRE 0912 RF Shielded Test Enclosure

Ideal bench-size RF shielded test enclosure for small portable wireless devices — Bluetooth and BLE modules, RFID tags, small routers, WiFi dongles, cell phones, and similar gear.

• Roomy 5.75 x 7.75 x 10.75 inches inside (145 x 200 x 275 mm) in a compact 9" wide x 12" deep package
• Excellent RF shielding isolation: −100 dB DC to 1 GHz, −95 dB to 3 GHz, −85 dB to 6 GHz
• Shielded 'honeycomb' vent keeps things cool while maintaining shielding effectiveness
• Generous B-size I/O plate handles most any test configuration
• Removable, field-changeable B-size I/O plate — reconfigure the chamber as your test needs change
• Rugged welded aluminum construction, made in the USA on our own fabrication line
• Top-loading lid with rugged stainless steel friction hinges
• Optional MW upgrade extends isolation to 28 GHz for 5G FR2, UWB, and Wi-Fi 6E/7 work
• Please note: test chambers do not include any RF connectors or interface filters. Any connection to a device inside the chamber must be suitably filtered to maintain shielding isolation. See the filtered interface and connector options below.

Big-Chamber Capability on the Bench

Medium-sized but with a large I/O plate for most any test configuration, and a standard honeycomb vent to keep things cool. Containing all the capability of our larger JRE enclosures, the JRE 0912 is ideal for small wireless devices such as cell phones, pagers, WiFi dongles, small routers, and other compact RF devices. For over-the-air WiFi and Bluetooth work, pair it with one of our test antennas such as the ANT-245 (2.4 and 5–6 GHz).

Featuring rugged welded aluminum construction, you can be assured of its tight RF shielding effectiveness. Long-life door gasket material along with our double-edge contact engagement provides solid RF shielding and smooth, trouble-free operation over the life of the chamber. Rugged stainless steel hinges resist loosening, keeping alignment square and the enclosure RF tight. Inside, LS-30 RF absorbing foam tames reflections and hot-spots so your measurements stay clean and repeatable.

The Removable I/O Plate — Your Chamber Never Becomes Obsolete

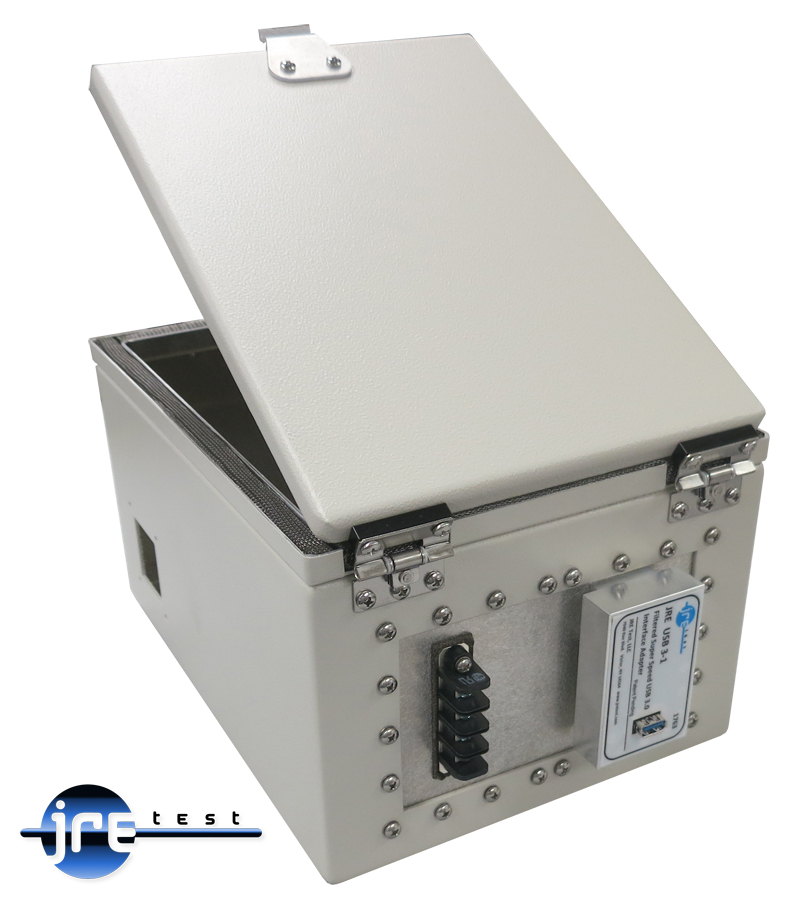

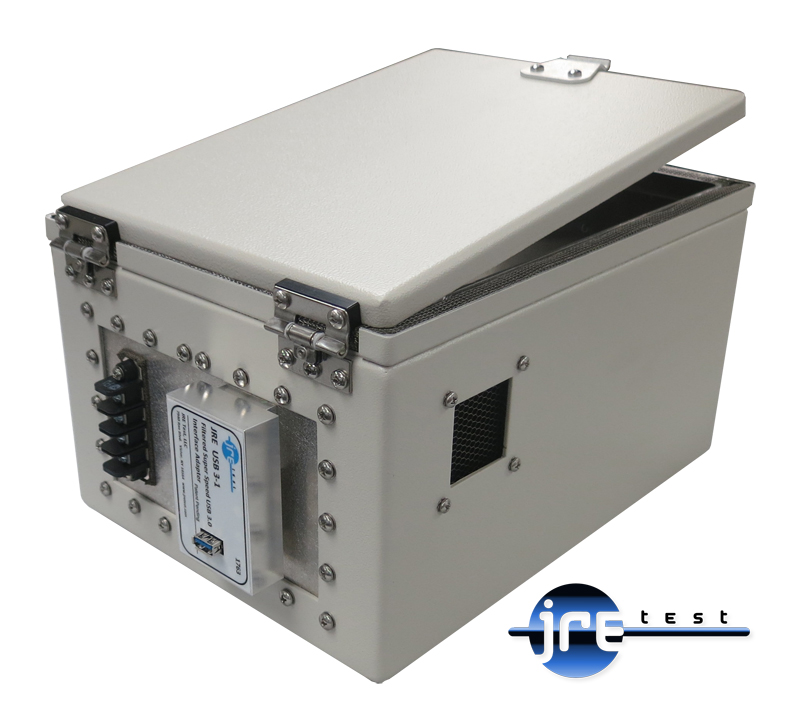

Every JRE chamber uses a removable, CNC-machined I/O plate — a design JRE engineers originated over forty years ago. The B-size plate recesses into the chamber wall and does not intrude into your test volume. Because it swaps out in the field with a few screws, one 0912 can be reconfigured for many different test setups over its life. Our wide selection of filtered I/O interfaces — USB, Ethernet, power, HDMI and more — lets almost any device be connected inside while keeping the RF environment sealed up tight. Browse the B-size populated I/O plates for the most common pre-built configurations.

Not sure what connections you need? The Configuration Worksheet is a quick way to organize your interface and connector needs before you order. Tell us exactly what RF connectors and filtered interfaces you require and we will build and final-test your chamber in the exact configuration you will be using.

Download datasheet: JRE0912

• Double contact door shields ensures repeatable measurements
• 3/4” (19 mm) thick RF absorbing foam deadens standing waves and reflections. Temperature rating of 90 degrees Celsius, UL 94V-0 flammability rating
• Heavy duty stainless steel friction hinges hold lid steady
• Rugged welded aluminum construction for long life
• Wide variety of connector options for every use

Universal I/O plate (4.5" x 7" 115 x180mm) with incredible connector options. Easily changed in the field for multiple uses. JRE Test "B" size I/O plate.

-100dB from DC to 1GHz, -95dB to 3GHz, -85dB to 6GHz

All JRE Test chambers, and many JRE filtered interfaces, can be optionally ordered to operate to 28 GHz @ > 85dB isolation, contact the factory for details

Outside: 7" H x 9" W x 12" D
180 x 230 x 305 mm
Inside: 5.75" H x 7.75" W x 10.75" D
145 x 200 x 275 mm
Weight: 8 lbs  3.6 kg
Shipping weight and dimensions: 10 lbs  4.6 kg
16" x 12" x 11", 410mm x 305mm x 280mm

Configuring your JRE RF Test Chamber is simple, fast and easy. Choose from these ready-to-go I/O plates with the most common filtered interfaces and connectors and your test chamber can be shipped in just a few days - or have a custom design in about a week, with whatever connectors and filtered interfaces you desire. To help organize your thoughts on what interfaces and connectors you may need, here is a link to a handy 'Configuration Worksheet'.

See all the Fast-Track, in stock I/O plates with the most common filtered interfaces and connectors here.

Want a different set of connectors or filtered interfaces? Contact JRE with your requirements and a custom I/O plate will be designed expressly for your test chamber. This plate will then be populated with the selected interfaces, mounted on the test chamber, final tested and then shipped to you. Other options such as fans, vents. internal AC power strips, fiber optic connectors can all be accommodated. JRE’s extensive inventory allows us to ship your custom configured test chamber in as little as one week!

JRE’s RF Test chambers are used by hundreds of test labs and production facilities throughout the world. Fast off-the-shelf delivery, superb technical support and leading edge patented designs help you to confidently design and test any wireless product with exact, repeatable results. The industry's widest line of standard RF test enclosures provides superior isolation from VLF to over 6 GHz, covering the entire range of popular commercial, private and government communications systems. Need to go higher for 5G or microwave tests? Our 'Enhanced' option provides industry leading isolation all the way up to 28 GHz. Whether you are designing, integrating, or production testing the next generation Wi-Fi, WLAN, 5G Cellular, or IoT, you can rely on JRE to ensure your tests are reliable and repeatable.
