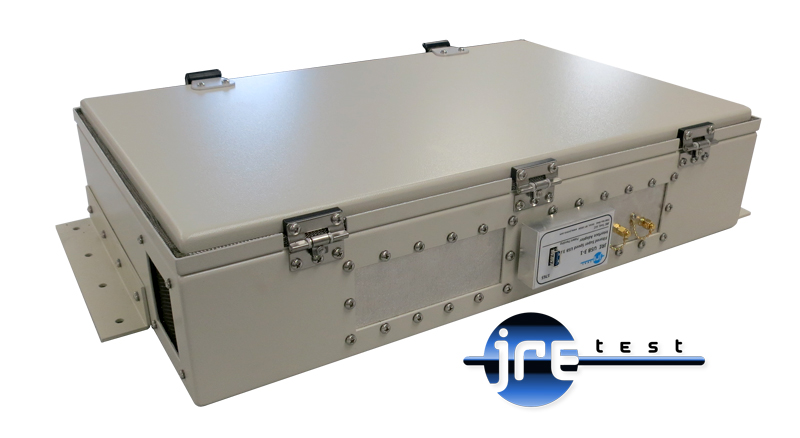

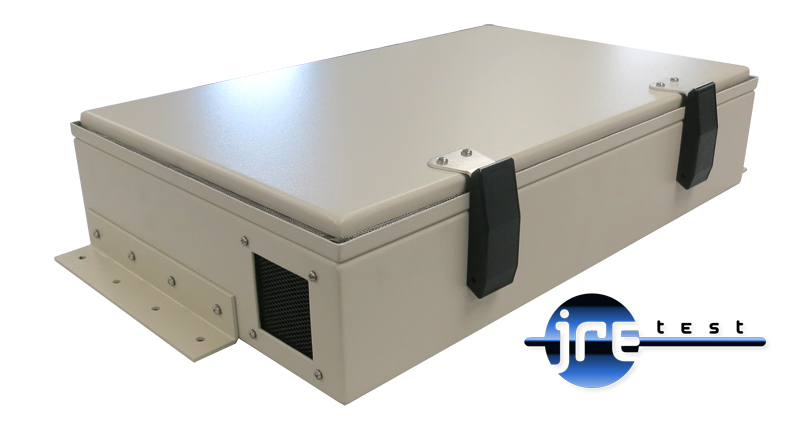

JRE 2214 RF Shielded Test Enclosure

Ultra low-profile benchtop RF shielded test enclosure with loads of I/O capability — two I/O plates' worth of connectors on a wide, flat footprint for thin devices that need lots of connections.

• Roomy 3.75 x 20.5 x 12.5 inches inside (95 x 520 x 320 mm) in a wide 22" x 14" footprint just 5.25" tall
• Excellent RF shielding isolation: −100 dB DC to 1 GHz, −95 dB to 3 GHz, −85 dB to 6 GHz
• Space for two removable A-size I/O plates — room for a high connector count, reconfigurable as your test needs change
• Two built-in 'honeycomb' vents maintain shielding effectiveness — optional fan available for additional airflowRugged welded aluminum construction, made in the USA on our own fabrication line
• Dual latches ensure tight RF shielding
• Optional MW upgrade extends isolation to 28 GHz for 5G FR2, UWB, and Wi-Fi 6E/7 work
• Please note: test chambers do not include any RF connectors or interface filters. Any connection to a device inside the chamber must be suitably filtered to maintain shielding isolation. See the filtered interface and connector options below.

Lots of I/O on a Wide, Flat Footprint

Low-profile devices that need large amounts of I/O connectivity have found a home in the JRE 2214. With space for two A-size I/O plates and a generous 20.5"-wide interior, you can populate a broad mix of filtered interfaces and connectors — USB, Ethernet, power, DB-style, terminal strips — across both plates while keeping the box flat on the bench. That makes it a natural fit for boards, modules, and multi-connector devices that need bench area but not height. If a narrower footprint suits you better, the JRE 1618 is the same low-profile, dual A-size-plate concept in a smaller size.

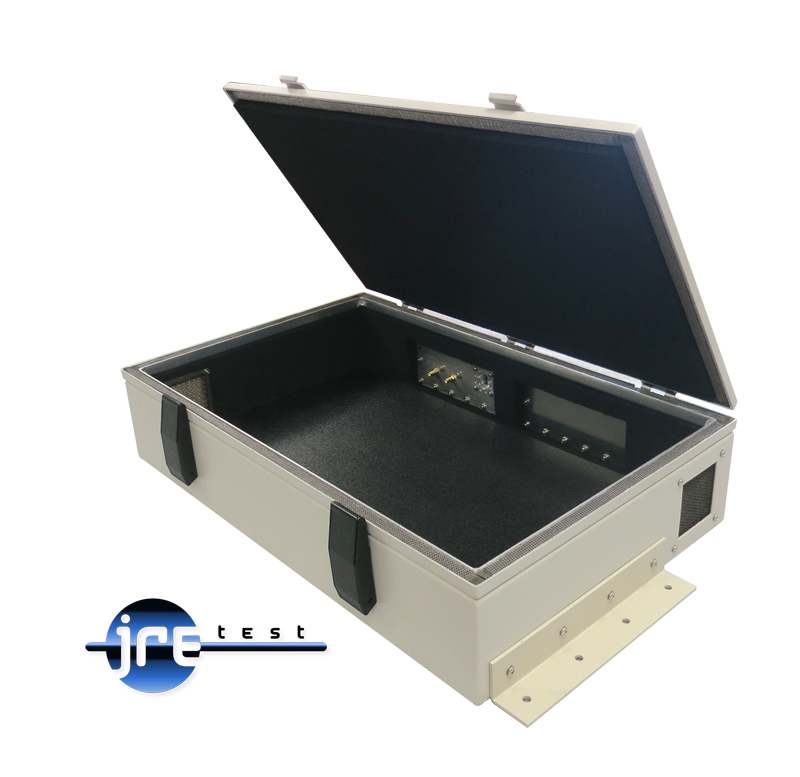

Like its other brothers in the JRE Test line, it features rugged welded aluminum construction with superb RF shielding effectiveness. Long-life door gasket material along with our double-edge contact engagement provides solid RF shielding and smooth, trouble-free operation over the life of the chamber. Tough honeycomb vents maintain shielding effectiveness throughout the full frequency range, with an optional fan available for additional airflow. Inside, LS-30 RF absorbing foam tames reflections and hot-spots so your measurements stay clean and repeatable.

The Removable I/O Plate — Your Chamber Never Becomes Obsolete

Every JRE chamber uses a removable, CNC-machined I/O plate — a design JRE engineers originated over forty years ago. The two A-size plates recess into the chamber wall and do not intrude into your test volume. Because they swap out in the field with a few screws, one 2214 can be reconfigured for many different test setups over its life. Our wide selection of filtered I/O interfaces — USB, Ethernet, power, HDMI and more — lets almost any device be connected inside while keeping the RF environment sealed up tight. Browse the A-size populated I/O plates for the most common pre-built configurations.

Not sure what connections you need? The Configuration Worksheet is a quick way to organize your interface and connector needs before you order. Tell us exactly what RF connectors and filtered interfaces you require and we will build and final-test your chamber in the exact configuration you will be using.

Download datasheet: JRE2214

• Double contact door shields ensures repeatable measurements
• 3/4” (19 mm) thick RF absorbing foam deadens standing waves and reflections. Temperature rating of 90 degrees Celsius, UL 94V-0 flammability rating
• Heavy duty triple stainless steel friction hinges
• Rugged welded aluminum construction for long life
• Wide variety of connector options for every use

Dual universal I/O plate (2.75" x 6" 70 x150mm) with incredible connector options. Easily changed in the field for multiple uses. JRE Test "A" size I/O plate

-100dB from DC to 1GHz, -95dB to 3GHz, -85dB to 6GHz

All JRE Test chambers, and many JRE filtered interfaces, can be optionally ordered to operate to 28 GHz @ > 85dB isolation, contact the factory for details

Outside: 5.25" H x 22" W x 14" D
135 x 560 x 355 mm
Inside: 3.75" H x 20.5" W x 12.5" D
95 x 520 x 320 mm
Weight: 16 lbs  7.3 kg
Shipping weight and dimensions: 20 lbs  9.1 kg
28" x 17" x 9", 710mm x 430mm x 230mm

Configuring your JRE RF Test Chamber is simple, fast and easy. Choose from these ready-to-go I/O plates with the most common filtered interfaces and connectors and your test chamber can be shipped in just a few days - or have a custom design in about a week, with whatever connectors and filtered interfaces you desire. To help organize your thoughts on what interfaces and connectors you may need, here is a link to a handy 'Configuration Worksheet'.

See all the Fast-Track, in stock I/O plates with the most common filtered interfaces and connectors here.

Want a different set of connectors or filtered interfaces? Contact JRE with your requirements and a custom I/O plate will be designed expressly for your test chamber. This plate will then be populated with the selected interfaces, mounted on the test chamber, final tested and then shipped to you. Other options such as fans, vents. internal AC power strips, fiber optic connectors can all be accommodated. JRE’s extensive inventory allows us to ship your custom configured test chamber in as little as one week!

JRE’s RF Test chambers are used by hundreds of test labs and production facilities throughout the world. Fast off-the-shelf delivery, superb technical support and leading edge patented designs help you to confidently design and test any wireless product with exact, repeatable results. The industry's widest line of standard RF test enclosures provides superior isolation from VLF to over 6 GHz, covering the entire range of popular commercial, private and government communications systems. Need to go higher for 5G or microwave tests? Our 'Enhanced' option provides industry leading isolation all the way up to 28 GHz. Whether you are designing, integrating, or production testing the next generation Wi-Fi, WLAN, 5G Cellular, or IoT, you can rely on JRE to ensure your tests are reliable and repeatable.
