JRE 1724B RF Shielded Test Enclosure

A roomy, rack-mountable RF shielded test enclosure — ideal for large-scale RF devices like enterprise mesh systems, access points, base stations, and wide-screen laptops.

• Roomy 22.5 x 15.5 x 11 inches inside (570 x 395 x 280 mm) in a 17" wide x 24" deep footprint
• Excellent RF shielding isolation: −100 dB DC to 1 GHz, −95 dB to 3 GHz, −85 dB to 6 GHz
• Fits on any benchtop or into any standard sliding 19" rack shelf
• Two removable C-size I/O plates — plenty of space for filters and connectors, reconfigurable as your test needs change
• Large interior for enterprise-class mesh network systems, access points, and laptops
• Two 'honeycomb' style vents keep it cool — optional fan available
• Internal struts hold the lid open for easy access when connecting your device
• Rugged welded aluminum construction, made in the USA on our own fabrication line
• Optional MW upgrade extends isolation to 28 GHz for 5G FR2, UWB, and Wi-Fi 6E/7 work
• Please note: test chambers do not include any RF connectors or interface filters. Any connection to a device inside the chamber must be suitably filtered to maintain shielding isolation. See the filtered interface and connector options below.

Built for Large Wireless Devices

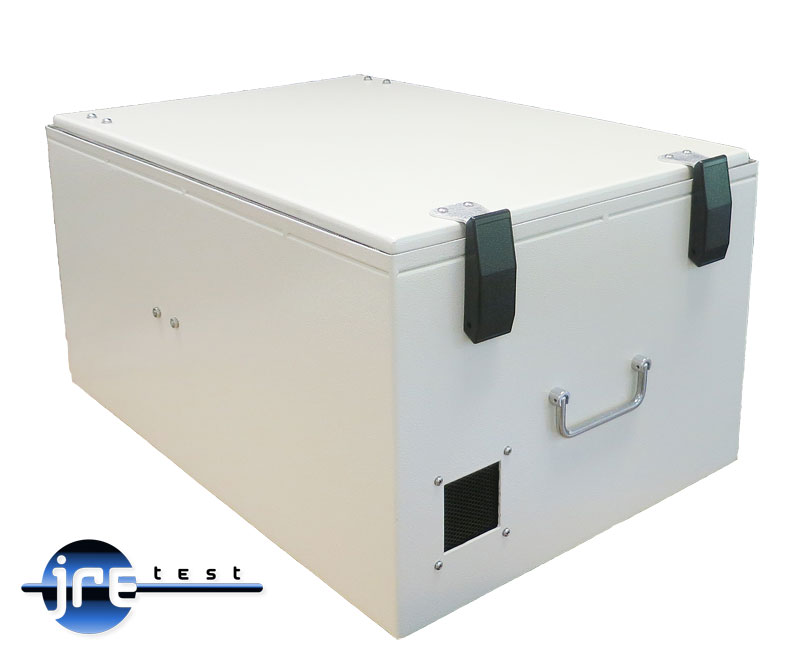

Originally designed for testing wide-screen laptops, the rack-mountable JRE 1724B is ideal for large wireless devices such as mesh network APs, cellular/LTE/4G base stations, and other large RF gear. For over-the-air work, pair it with our test antennas — the ANT-82 covers cellular/PCS bands for base-station testing, while the ANT-245 handles 2.4 and 5–6 GHz for WiFi and mesh. If you don't need the full height, the JRE 1724A is the same footprint in a lower-profile version.

Featuring rugged welded aluminum construction, you can be assured of its tight RF shielding effectiveness. Long-life door gasket material along with our double-edge contact engagement provides solid RF shielding and smooth, trouble-free operation over the life of the chamber. Internal struts keep the lid open for easy internal access when connecting the device under test, and dual honeycomb-style vents keep it cool, with an optional fan available. Inside, LS-30 RF absorbing foam tames reflections and hot-spots so your measurements stay clean and repeatable.

The Removable I/O Plate — Your Chamber Never Becomes Obsolete

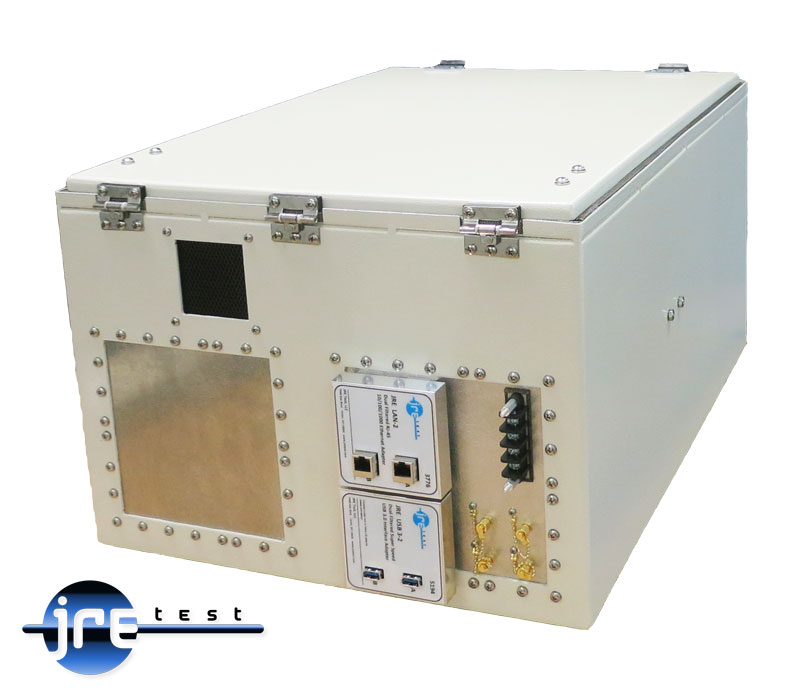

Every JRE chamber uses a removable, CNC-machined I/O plate — a design JRE engineers originated over forty years ago. The two C-size plates recess into the chamber wall and do not intrude into your test volume. Because they swap out in the field with a few screws, one 1724B can be reconfigured for many different test setups over its life. Our wide selection of filtered I/O interfaces — USB, Ethernet, power, HDMI and more — lets almost any device be connected inside while keeping the RF environment sealed up tight. Browse the C-size populated I/O plates for the most common pre-built configurations.

Not sure what connections you need? The Configuration Worksheet is a quick way to organize your interface and connector needs before you order. Tell us exactly what RF connectors and filtered interfaces you require and we will build and final-test your chamber in the exact configuration you will be using.

Download datasheet: JRE1724B

• Double contact door shields ensures repeatable measurements
• 3/4” (19 mm) thick RF absorbing foam deadens standing waves and reflections. Temperature rating of 90 degrees Celsius, UL 94V-0 flammability rating
• Heavy duty stainless steel friction hinges and struts hold lid steady
• Rugged welded aluminum construction for long life
• Includes 80mm vents, AC or DC fan optional
• Two large I/O plates for plenty of filters and connectors

Two universal I/O plates (7" x 7" 180 x180mm) with incredible connector options. Easily changed in the field for multiple uses. JRE Test "C" size I/O plate.

-100dB from DC to 1GHz, -95dB to 3GHz, -85dB to 6GHz

All JRE Test chambers, and many JRE filtered interfaces, can be optionally ordered to operate to 28 GHz @ > 85dB isolation, contact the factory for details

Outside: 13" H x 17" W x 24" D
330 x 430 x 610 mm
Inside: 11" H x 15.5" W x 22.5" D
570 x 395 x 280 mm
Weight: 31 lbs  14.1 kg
Shipping weight and dimensions: 37 lbs  16.8 kg
31" x 22" x 18", 790mm x 560mm x 460mm

Configuring your JRE RF Test Chamber is simple, fast and easy. Choose from these ready-to-go I/O plates with the most common filtered interfaces and connectors and your test chamber can be shipped in just a few days - or have a custom design in about a week, with whatever connectors and filtered interfaces you desire. To help organize your thoughts on what interfaces and connectors you may need, here is a link to a handy 'Configuration Worksheet'.

See all the Fast-Track, in stock I/O plates with the most common filtered interfaces and connectors here.

Want a different set of connectors or filtered interfaces? Contact JRE with your requirements and a custom I/O plate will be designed expressly for your test chamber. This plate will then be populated with the selected interfaces, mounted on the test chamber, final tested and then shipped to you. Other options such as fans, vents. internal AC power strips, fiber optic connectors can all be accommodated. JRE’s extensive inventory allows us to ship your custom configured test chamber in as little as one week!

JRE’s RF Test chambers are used by hundreds of test labs and production facilities throughout the world. Fast off-the-shelf delivery, superb technical support and leading edge patented designs help you to confidently design and test any wireless product with exact, repeatable results. The industry's widest line of standard RF test enclosures provides superior isolation from VLF to over 6 GHz, covering the entire range of popular commercial, private and government communications systems. Need to go higher for 5G or microwave tests? Our 'Enhanced' option provides industry leading isolation all the way up to 28 GHz. Whether you are designing, integrating, or production testing the next generation Wi-Fi, WLAN, 5G Cellular, or IoT, you can rely on JRE to ensure your tests are reliable and repeatable.
