JRE LAN-USB 2 Dual Filtered Interface: RJ-45 Ethernet and USB 2

Test both Ethernet and USB 2.0 devices in a sealed RF environment — two independent filters in a single housing, now covering the latest LTE cellular bands. Each section passes your data clean while rejecting cellular, LTE, and WiFi interference above 700 MHz.

• Two fully independent, fully passive filter sections in one housing — a 10/100/1000 Ethernet filter and a USB 2.0 filter — saving I/O plate space and cost versus two separate filters
• Precision low-pass design — passes all data below 480 MHz clean while rejecting cellular, LTE, and WiFi: anything above 700 MHz is knocked down hard
• Over 80 dB attenuation above 1 GHz, flat response below 480 MHz
• Now covers the latest LTE cellular bands
• LAN section filters all eight RJ-45 lines (10/100 uses four, gigabit uses all eight) — so you can wire any signal onto any line and use it as a general-purpose filtered interface, not just Ethernet
• High-performance inductors: up to 250 mA per line, under 1.5 Ω DC resistance per path — Ethernet PoE pass-through compatible
• USB section fully USB 2.0 compliant with proper USB enumeration
• Balanced filtering for minimal ringing
• Fully passive by design — no active components, no firmware, nothing that could be subverted in a data-side attack
• 100% made in USA
• One USB 2.0 Type-A jumper and one RJ-45 Ethernet jumper cable included — one per section
• Secured with multiple 4-40 screws (mounting template included) for a reliable, repeatable RF seat — not a single-nut mount that can loosen and leak

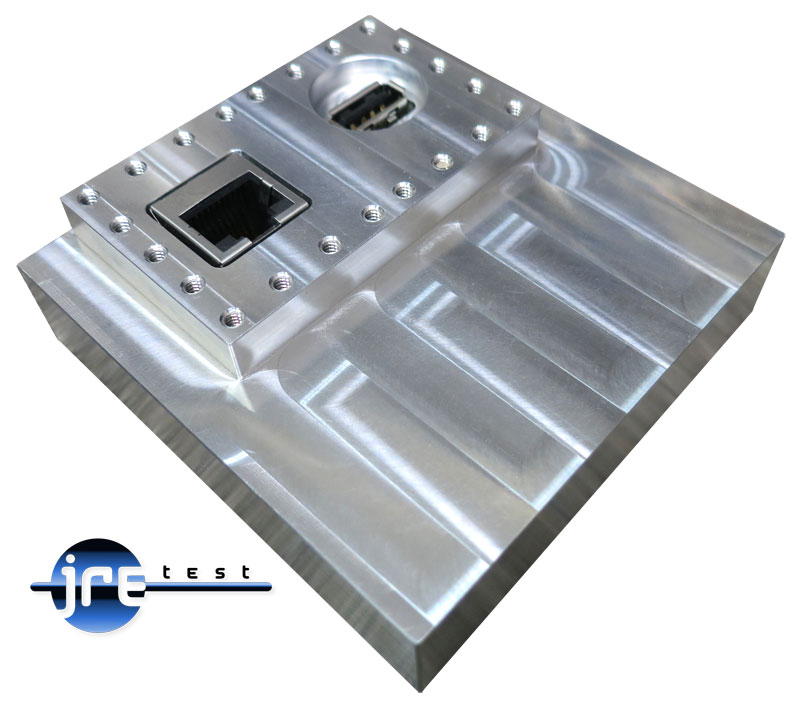

• Rugged machined-aluminum housing
• Works with any RF test enclosure or screen room

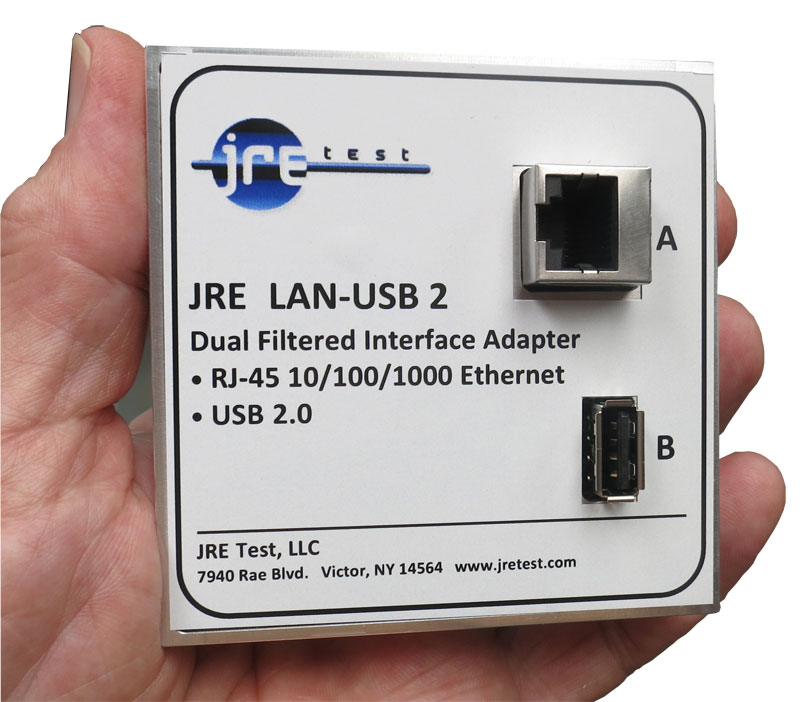

The JRE LAN-USB 2 is two separate, fully independent filtered interfaces — one 10/100/1000 Ethernet, one USB 2.0 — built into a single rugged machined-aluminum housing. Combining them on one footprint saves space on the I/O plate and costs less than two stand-alone filters.

Both sections are precision low-pass filters — and for these interfaces, that's exactly the right tool. USB 2.0 tops out at 480 Mbps, and 10/100/1000 Ethernet data likewise sits well below the wireless bands, so there's a clean gap between your data (below 480 MHz) and the interference you're keeping out (cellular, LTE, and WiFi, all above 700 MHz). A low-pass filter passes everything below the gap untouched and rejects everything above it by better than 70–80 dB. Our patented signal-phasing filters exist for the faster interfaces — USB 3 SuperSpeed, 10GBASE-T — where the data climbs up into the interference band and a simple low-pass can no longer separate the two. At USB 2.0 and gigabit speeds you don't need that, and the filter's added cable length is immaterial.

Ethernet / LAN section. A 10/100/1000 low-pass filter on all eight RJ-45 lines, providing exceptional RF shielding on every line. It rejects everything above the 700 MHz cellular bands while passing data clean between routers, switches, access points, or any RJ-45 device. Because all eight lines are filtered (10/100 Ethernet uses four of the eight, gigabit uses all eight), you can wire any signal onto any line and pass it across the filter — anything below 480 MHz passes, anything above 700 MHz is attenuated by more than 70 dB — which makes it handy as a general-purpose filtered interface, not just for Ethernet. High-performance inductors allow up to 250 mA per line with under 1.5 Ω DC resistance on any path. Fully Ethernet PoE compatible. One RJ-45 Ethernet jumper cable included.

USB section. A USB 2.0-compliant low-pass filter with proper device enumeration, so any test hiccups are exchanged end-to-end between host and device — none of the silent hang-ups a fiber or media-converter link can hide. It passes data and power between the host on one side and the USB device on the other, using a balanced bidirectional data pair plus an unbalanced power-and-return pair, on standard USB Type-A connectors. The data lines pass USB 1.1/2.0 up to 480 Mbps while rejecting RF by more than 80 dB from 1 GHz through 6 GHz; the power lines pass DC while rejecting more than 80 dB from 400 MHz through 6 GHz. One USB 2.0 Type-A male-to-male jumper cable included.

Need the sections separately? See the single JRE LAN-1 and JRE USB 2-1 filters. Need SuperSpeed USB or 10G Ethernet, where the data overlaps the wireless bands? The patented JRE LAN10G-USB 3 combo is built for exactly that. For more on how filtered interfaces handle data signals, see Understanding Data Signals.

Download datasheet: LAN-USB 2

Download hole pattern and drawing: LAN-USB LAYOUT
Mounting screws are 4-40 and included with filter. Clearance hole size is 0.1285" diameter - #30 or 3.3mm drill

• Reduces interference from Cellular and WiFi
• Two filters in one housing saves money and space
• Ethernet PoE power passing compatible
• Heavy duty machined aluminum case for reliable shielding and ruggedness
• Precision designed filtering for minimal ringing on data lines
• Excellent RF filtering at all wireless frequencies

Data Line Balanced Impedance: 100 Ohms typical

Typical Insertion Loss:

• 10 MHz  0.1 dB
• 150 MHz  1.2 dB
• 250 MHz  1.5 dB
• 350 MHz  2.0 dB
• 480 MHz  3.0 dB
• 700 MHz  > 70 dB
• 800 MHz to 6 GHz > 80 dB

Outside: 3.2" H x 3.2" W x 0.8" D (80 x 80 x 20 mm)

LAN Filter: RJ-45 Female jacks

USB Filter: USB 2.0 Type A Female connectors

Filtering: All lines filtered

Power capability: Up to 60 VDC at 250 mA, 1.5 ohms max DC resistance
