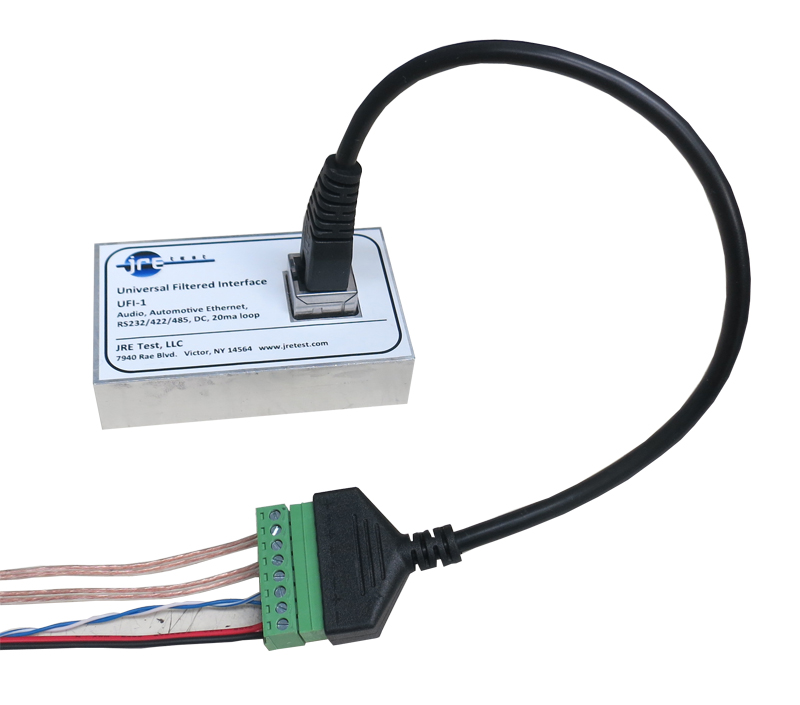

Universal Filtered Interface — JRE UFI-1
Universal interface with eight independently filtered lines, removable 16–30 AWG terminals, and greater than 80 dB rejection from 800 MHz to 6 GHz.
JRE UFI-1 specifications
- Outside dimensions
- 2" H x 3.2" W x 0.8" D (50 x 80 x 20 mm)
- Isolation
- > 70 dB above 700 MHz; > 80 dB from 800 MHz to 6 GHz
- Impedance in balanced configuration
- 100 Ohms typical
- Insertion Loss at 10 MHz
- 0.1 dB
- Insertion Loss at 150 MHz
- 1.2 dB
- Insertion Loss at 250 MHz
- 1.5 dB
- Insertion Loss at 350 MHz
- 2.0 dB
- Insertion Loss at 480 MHz
- 3.0 dB
- Insertion Loss at 700 MHz
- > 70 dB
- Insertion Loss at 800 MHz to 6 GHz
- > 80 dB
- Connector
- RJ-45 Female Jacks with included screw terminal blocks
- Filtering
- All 8 lines independently filtered
- Power capability
- Up to 60 VDC at 250 mA, 1.5 ohms max DC resistance
- DC resistance
- < 1.5 ohms/line
- Wire gauge
- 16–30 AWG, solid or stranded
- Mounting
- 4-40 screws (included); clearance hole 0.1285" diameter (#30 or 3.3mm drill)
- Origin
- 100% Made in USA
JRE UFI-1 overview
Fixed connector formats become awkward when sensor, control, audio, or specialized data wiring changes between tests. I keep the JRE UFI-1 in mind when eight independent filtered conductors and removable terminals are more useful than another fixed wall interface.
- Eight independently filtered lines for DC, audio, serial, sensor, and control connections
- Signal passband from DC to approximately 480 MHz, with rejection above 700 MHz
- Greater than 70 dB above 700 MHz and greater than 80 dB from 800 MHz to 6 GHz

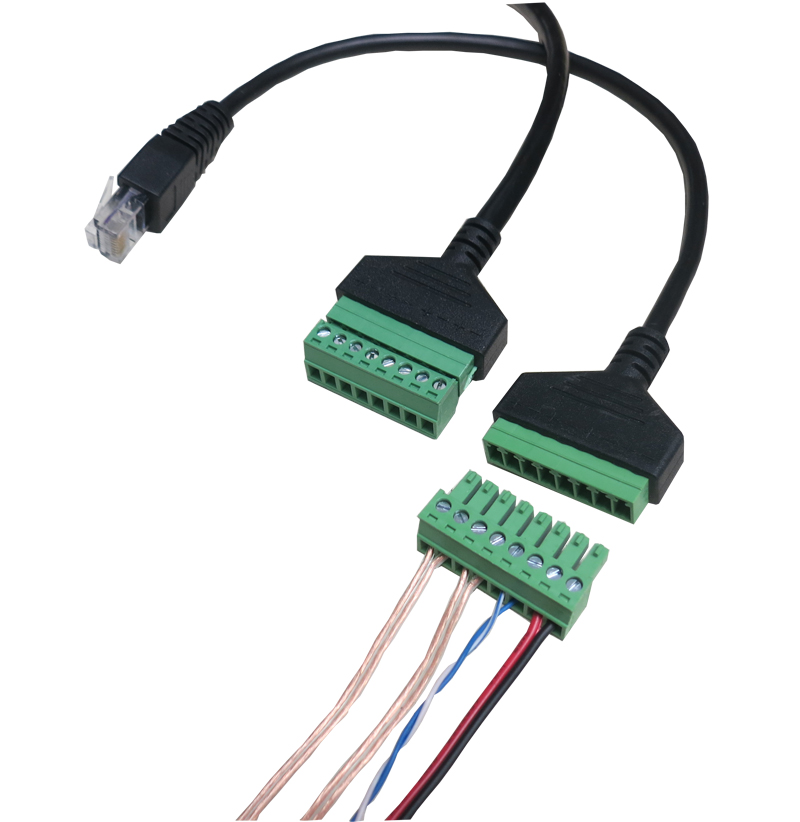

- RJ-45 Female jacks with removable screw-terminal blocks for 16–30 AWG wire
- Up to 60 VDC at 250 mA with 1.5 ohms maximum resistance per line

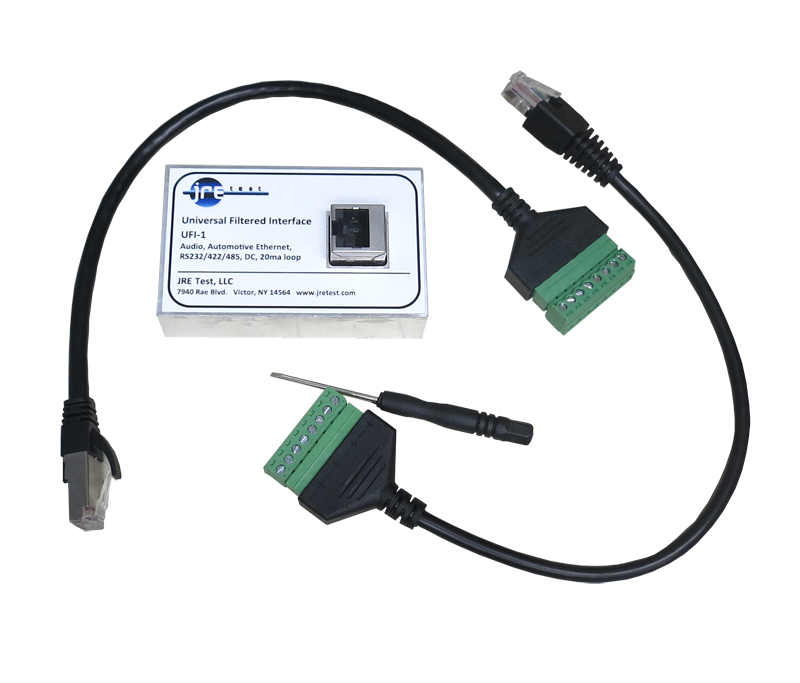

- Two 12-inch (approximately 30 cm) pendant cables and a wiring screwdriver supplied
- 2" H x 3.2" W x 0.8" D (50 x 80 x 20 mm); $445.00 and in stock
When the DUT-side connector changes but the underlying conductors do not, I swap the terminal block instead of redesigning a fixed layout. Additional blocks are available for repeat setups. That makes the UFI-1 especially useful for mixed low-voltage signals that do not justify several dedicated interfaces.
