Fast Track Populated I/O Plate — JRE D1-4T-USB3
Type D Fast Track plate with 1 USB 3-1 interface, 2 SMA Female bulkheads, and a 4 Terminal filtered feed through.
JRE D1-4T-USB3 specifications
- Part Number
- D1-4T-USB3
- SMA Female bulkhead connectors
- 2
- USB 3 filtered interface
- 1 (USB 3-1 filtered interface)
- 4 Terminal filtered feed through
- 1, rated at 250VAC/20A max, 100VDC/20A max
- Plate Size
- Type "D" I/O plate
JRE D1-4T-USB3 overview

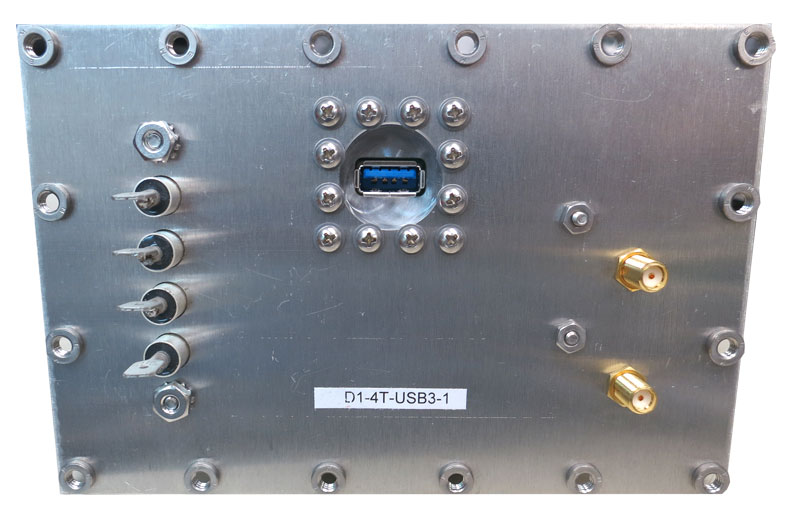

The JRE D1-4T-USB3 is a populated Type D I/O plate carrying a SuperSpeed USB link, filtered power and two RF connections. It brings those three functions together when the DUT needs a filtered SuperSpeed path through a Type D layout.
- 1 USB 3-1 filtered interface for the DUT's SuperSpeed data connection
- USB 3 path discriminating differential data from common-mode RF
- 2 SMA Female bulkhead connectors for RF signals entering or leaving the chamber
- 1 4 Terminal feed through rated 250VAC/20A max or 100VDC/20A max
- In-stock Fast Track assembly, replaceable in the field with simple hand tools
The plate is $660.00 and removes custom fabrication from the schedule when this exact arrangement fits. Its pre-populated format can support delivery in days with an in-stock enclosure. Map the DUT's USB, power, and RF crossings on the bench; when they align with this list, the plate configuration is settled.
