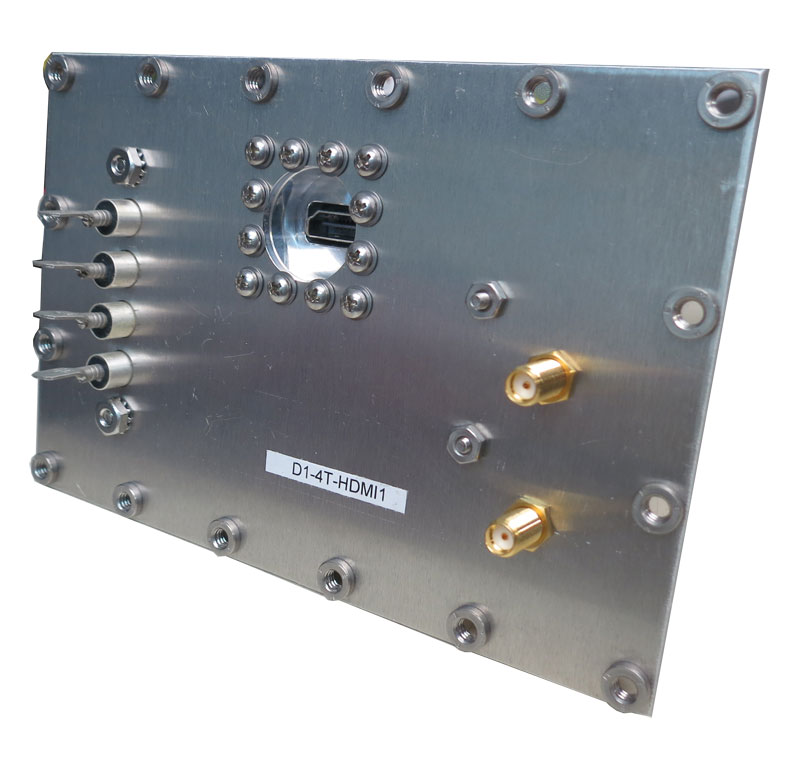

Fast Track Populated I/O Plate — JRE D1-4T-HDMI
Type D Fast Track plate with HDMI filtering, 2 Female SMA connectors, and a 4 Terminal filtered feed through.
JRE D1-4T-HDMI specifications
- Part number
- D1-4T-HDMI
- SMA Female bulkhead connectors
- 2
- HDMI filtered interface
- 1
- 4 Terminal filtered feed through
- rated at 250VAC/20A max, 100VDC/20A max
- Plate type
- Type "D" I/O plate
- Compatible enclosures
- Any JRE Test chamber that uses Type "D" I/O plate (e.g. JRE 1724A)
JRE D1-4T-HDMI overview
I start with the video path on this connector set. If HDMI must cross the wall while the same DUT also needs filtered power and two RF paths, this populated plate gathers those functions before the enclosure reaches the bench.
- D1-4T-HDMI Fast Track assembly for a ready-populated Type D I/O configuration
- HDMI filtered interface for the DUT's video connection across the enclosure wall
- 2 Female SMA connectors for bringing RF signals into or out of the chamber
- 4 Terminal filtered feed through for the setup's required power crossing
- Field-replaceable Type D plate for changing the enclosure's I/O with simple hand tools
- Pre-populated format for delivery in days when paired with an in-stock enclosure
At $660.00, this plate avoids waiting for a one-off layout when its connector set is already right. If the DUT calls for another video path, a different power connection, or a different RF connector count, a custom plate is the better specification. JRE can populate that layout and final-test it with the selected enclosure before shipment.
