Fast Track Populated I/O Plate — JRE A2-LAN10G

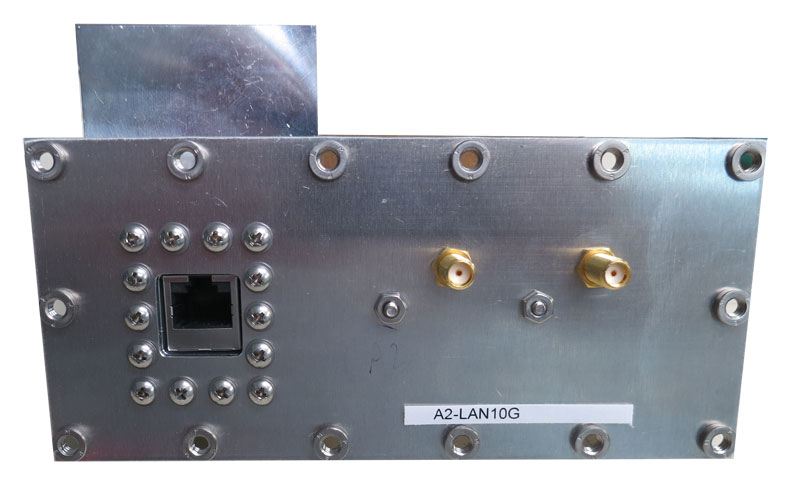

Type A Fast Track plate with 1 LAN-10G RJ-45 10GBase-T filtered interface and 2 SMA Female bulkheads.
JRE A2-LAN10G specifications
- Outside dimensions
- 2.75" x 6" (70 x 150mm)
- Part Number
- A2-LAN10G
- SMA Connectors
- 2 SMA Female bulkhead connectors
- Filtered Interface
- 1 LAN-10G Filtered Ethernet interface (RJ-45 10GBase-T)
- Compatible Plate Size
- Type "A" I/O plate (2.75" x 6" - 70 x 150mm)
JRE A2-LAN10G overview
The RJ-45 connector alone does not settle the Ethernet choice. I specify the A2-LAN10G when the DUT uses 10GBase-T and also needs two RF paths on the ready-populated plate.
- 1 LAN-10G filtered Ethernet interface supports RJ-45 10GBase-T connections.
- Discriminates by mode: differential data passes unfiltered; common-mode RF is low-pass filtered out.
- 2 SMA Female bulkhead connectors carry RF signals through the enclosure wall.
- Type "A" plate measures 2.75" x 6" (70 x 150mm).
- Listed at $645.00, the in-stock Fast Track plate arrives with its interfaces installed.
- Enclosure-model review confirms the Type "A" plate-size requirement before configuration.
Connector shape by itself is not enough, so I settle the link standard before committing to this $645.00 plate. When 10GBase-T and the two RF paths match, its in-stock format supports delivery in days with an in-stock enclosure. A different data interface or RF count belongs on a custom plate.
