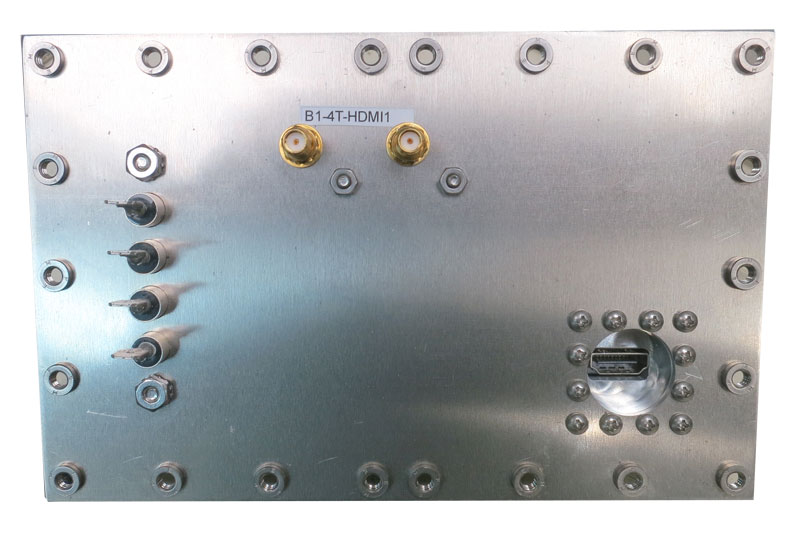

Fast Track Populated I/O Plate — JRE B1-4T-HDMI1
B-size Fast Track plate with HDMI filtering, a 4 terminal filtered feed through, and 2 Female SMA connectors.
JRE B1-4T-HDMI1 specifications
- Part number
- B1-4T-HDMI1
- SMA Female bulkhead connectors
- 2
- HDMI filtered interface
- 1
- 4 Terminal filtered feed through
- rated at 250VAC/20A max, 100VDC/20A max
- Plate type
- Type "B" I/O plate
- Compatible enclosures
- JRE 0612CLAM, JRE 0912, JRE 1724, JRE 1729, JRE 1812, JRE 2218
JRE B1-4T-HDMI1 overview
Field-replaceable I/O matters when an enclosure outlives one bench setup. I use the JRE B1-4T-HDMI1 when the current DUT needs HDMI, filtered power conductors, and two RF connections on one prepopulated B-size plate.
- HDMI filtered interface carries the required display connection through the shield wall
- Filtered 4 terminal feed through provides the plate's wired power crossing
- 2 Female SMA connectors provide RF signal paths into and out of the enclosure
- B-size plate format keeps the complete connector set on a field-replaceable panel
- Simple hand tools allow a later plate change without replacing the enclosure
- Fast Track configuration supports delivery in days when paired with an in-stock enclosure
At $665.00, this is the Fast Track choice when the listed combination fits without a separate custom layout. If the DUT needs another display connection, more RF paths, or different power conductors, I would define those crossings on a custom plate. The enclosure can then stay in service while its I/O changes with the bench.
