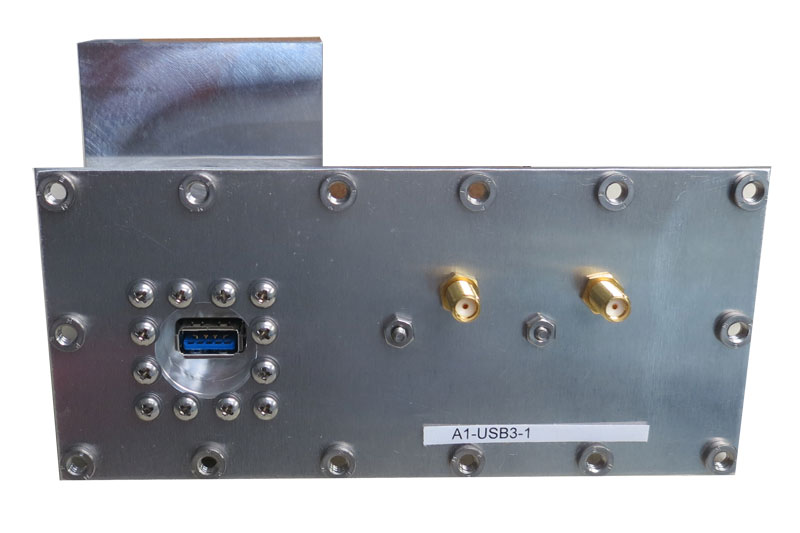

Fast Track Populated I/O Plate — A1-USB3-1

SuperSpeed USB changes the filter choice before it changes the plate layout. I would start with the A1-USB3-1 when the DUT needs that data connection plus two RF paths.

• 1 USB 3-1 filtered interface provides the populated SuperSpeed data connection.
• Discriminates by mode: differential data passes unfiltered; common-mode RF is low-pass filtered out.
• 2 SMA Female bulkhead connectors bring RF signals through the plate.
• Type "A" format measures 2.75" x 6" (70 x 150mm).
• Part number A1-USB3-1 identifies this exact interface combination.
• Listed at $575.00, the in-stock assembly is populated before it reaches the enclosure.
• The buyer's enclosure model determines whether the required plate format is Type "A".

Simple hand tools allow the plate to change later as the bench evolves. When this populated set is right, I pair it with an in-stock enclosure to preserve delivery in days. The deciding point remains the DUT's need for the USB 3-1 interface.
