Fast Track Populated I/O Plate — JRE B1-4T-USB-C

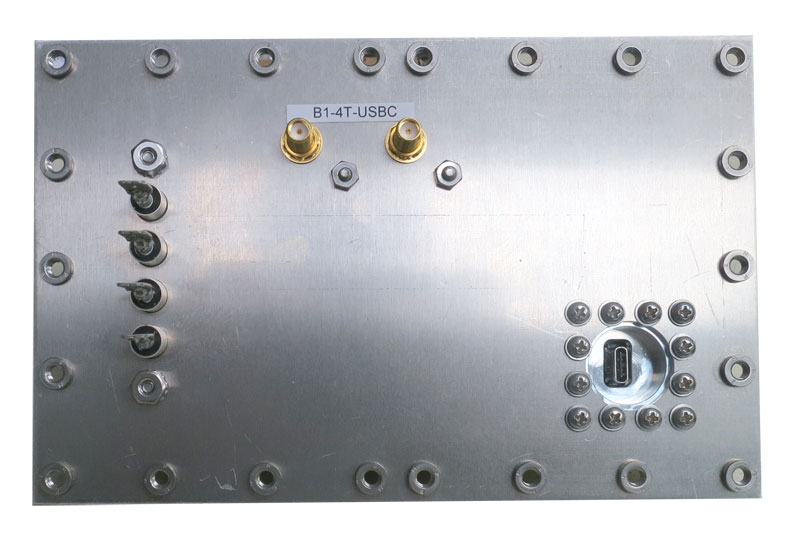

Type B Fast Track plate with 1 USB-C interface, 2 SMA Female bulkheads, and a 4 Terminal filtered feed through.
JRE B1-4T-USB-C specifications
- Part number
- B1-4T-USB-C
- SMA Female bulkhead connectors
- 2
- USB-C Filtered interface
- 1
- 4 Terminal filtered feed through
- rated at 250VAC/20A max, 100VDC/20A max
- Plate type
- Type "B" I/O plate
- Compatible enclosures
- JRE 0612CLAM, JRE 0912, JRE 1724, JRE 1729, JRE 1812, JRE 2218
JRE B1-4T-USB-C overview
The JRE B1-4T-USB-C is a populated B-size I/O plate carrying filtered power, USB-C and two RF paths. The conductor ratings remain defined for the AC or DC power crossing.
- 1 USB-C filtered interface carries the DUT data connection across the enclosure wall
- USB-C filtering discriminates by mode: differential data passes while common-mode RF is low-pass filtered out
- 2 SMA Female bulkhead connectors include dust caps for the RF paths
- 4 Terminal filtered feed through is rated 250VAC/20A max and 100VDC/20A max
- Screw terminals outside and 1/4" fast-on lugs inside simplify power termination
- Type "B" format is field-replaceable with simple hand tools
The $735.00 price reflects a standardized, production-quantity plate rather than an individually designed layout. Paired with an in-stock enclosure, the populated Fast Track configuration can ship within a few days. I use that schedule advantage only when every listed crossing belongs in the test setup.
