Fast Track Populated I/O Plate — JRE A2-LAN1

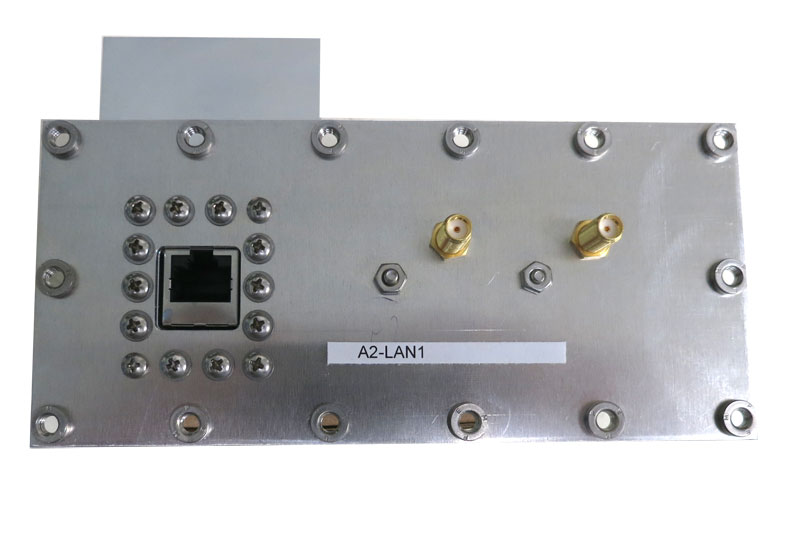

Type A Fast Track plate with 1 LAN-1 RJ-45 filtered Ethernet interface and 2 SMA Female bulkheads.
JRE A2-LAN1 specifications
- Outside dimensions
- 2.75" x 6" (70 x 150mm)
- Part Number
- A2-LAN1
- SMA Connectors
- 2 SMA Female bulkhead connectors with dust caps
- Filtered Interface
- 1 LAN-1 Filtered Ethernet interface (RJ-45)
- Plate Size
- Type "A" — 2.75" x 6" (70 x 150mm)
- Compatible Enclosures
- Any JRE Test chamber using Type "A" I/O plate (e.g. JRE 0709-P)
JRE A2-LAN1 overview
A later Ethernet-bench change does not have to replace the enclosure. I use the field-replaceable populated A-size I/O plate A2-LAN1 when the current setup needs one RJ-45 LAN-1 crossing and two RF paths on the populated plate.
- 1 LAN-1 low-pass filtered Ethernet interface carries the RJ-45 connection across the shield wall.
- 2 SMA Female bulkhead connectors carry RF signals, with dust caps included.
- Type "A" plate measures 2.75" x 6" (70 x 150mm).
- At $530.00, the standardized in-stock assembly avoids an individually built custom plate.
- Plate-size fit depends on the enclosure model and is confirmed before the build.
I keep the Fast Track option only when LAN-1 is the correct Ethernet interface and two RF paths match the connection list. With an in-stock enclosure, that populated choice supports delivery in days; simple hand tools remain enough for a later plate change.
