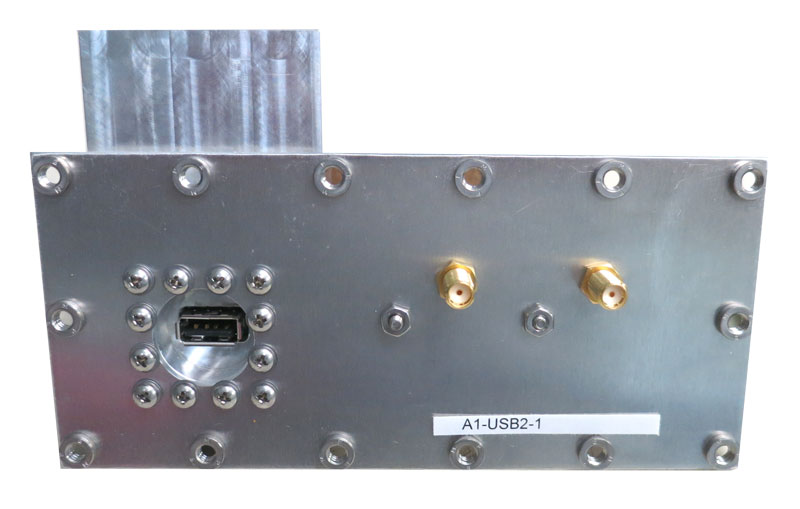

Fast Track Populated I/O Plate — JRE A1-USB2-1
Type A Fast Track plate with 1 USB 2-1 filtered interface and 2 Female SMA bulkheads with dust caps.
JRE A1-USB2-1 specifications
- Outside dimensions
- 2.75" x 6"
- Part Number
- A1-USB2-1
- Plate Size
- 2.75" x 6" (70 x 150mm)
- Plate Type
- "A" Size
- SMA Connectors
- 2 Female SMA bulkhead connectors with dust caps
- Filtered Interface
- 1 USB 2-1 Filtered interface
JRE A1-USB2-1 overview
At $465.00, the populated A1-USB2-1 on an A-size I/O plate avoids the cost of an individually manufactured custom plate when its layout fits. I start with that price advantage when the DUT needs one USB 2-1 path and two RF connections.
- 1 USB 2-1 low-pass filtered interface passes data and power through the shield wall.
- 2 Female SMA bulkhead connectors carry RF signals, with dust caps supplied.
- "A" Size plate measures 2.75" x 6" (70 x 150mm).
- In-stock Fast Track construction supports delivery in days when paired with an in-stock enclosure.
The plate can be replaced in the field with simple hand tools as requirements change. I would keep this stocked configuration only when one USB path and two RF paths match the connection list. Include the enclosure model with the quote request so we can confirm the plate-size fit.
