JRE A1-USB-C Fast Track Populated I/O Plate
In stock · ships fast
Populated I/O Plates

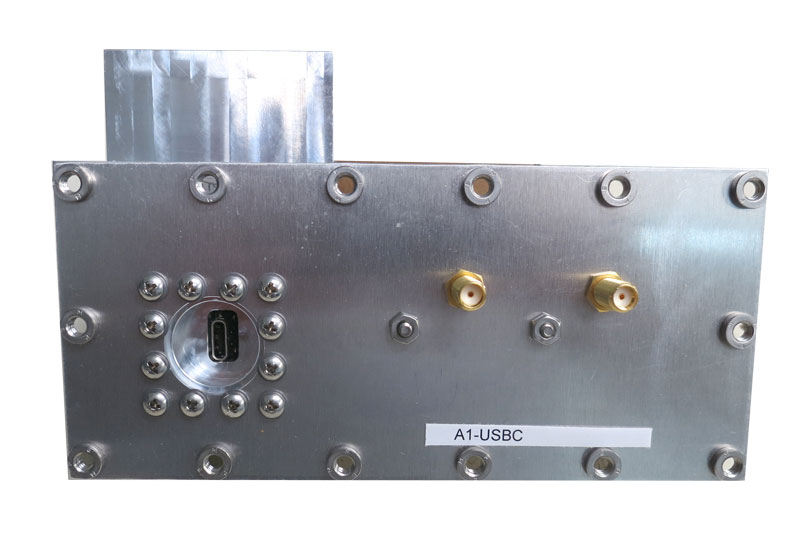

Fast Track Populated I/O Plate — JRE A1-USB-C

Type A Fast Track plate with 1 USB-C filtered interface and 2 SMA Female bulkheads with dust caps.

Price $645.00 published · no quote wall
Ask an Engineer
Not sure which size or plate? Ask an engineer

JRE A1-USB-C specifications

Outside dimensions
2.75" x 6" (70 x 150mm)
Part Number
A1-USBC
SMA Connectors
2 SMA Female bulkhead connectors with dust caps
Filtered Interface
1 USB-C Filtered interface
Plate Size
Type "A" (2.75" x 6" - 70 x 150mm)
Compatible Enclosures
Any JRE Test chamber that uses Type "A" I/O plate, e.g. JRE 0709-P

JRE A1-USB-C overview

The USB-C crossing settles this ready-populated plate before the RF count does. I recommend the JRE A1-USBC when the DUT needs its mode-discriminating filtered data path alongside two RF feedthroughs.

  • 1 USB-C filtered interface carries the selected data connection across the enclosure wall.
  • Discriminates by mode: differential data passes unfiltered; common-mode RF is low-pass filtered out.
  • 2 SMA Female bulkhead connectors handle RF signals, and their dust caps are included.
  • Type "A" plate measures 2.75" x 6" (70 x 150mm).
  • At $645.00, the in-stock Fast Track assembly arrives with its interfaces already populated.
  • Enclosure-model confirmation is required because the plate-size match cannot be inferred from the DUT.

Paired with an in-stock enclosure, the Fast Track assembly can support delivery in days. If the data interface or RF-connector count differs, I would define that mismatch on a custom-populated plate before assembly.
