Populated I/O Plates

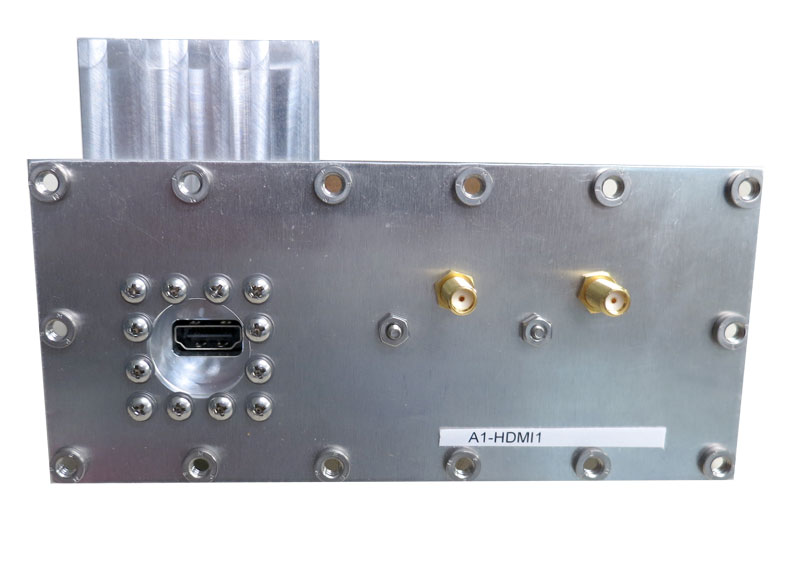

Fast Track Populated I/O Plate — JRE A1-HDMI1
Type A Fast Track plate with 1 HDMI-1 filtered interface and 2 SMA Female bulkhead connectors.
Price
$575.00
published · no quote wall
Not sure which size or plate? Ask an engineer
JRE A1-HDMI1 specifications
- Part Number
- A1-HDMI1
- SMA Connectors
- 2 SMA Female bulkhead connectors
- Filtered Interfaces
- 1 HDMI-1 Filtered interface
- Plate Size
- Type "A" I/O plate (2.75" x 6" - 70 x 150mm)
JRE A1-HDMI1 overview
Delivery speed is the reason to start with the JRE A1-HDMI1 when its connector map fits. I use the already-populated HDMI and RF layout to keep a matching in-stock enclosure on the Fast Track path.
- 1 HDMI-1 filtered interface carries the display connection through the shield wall.
- 2 SMA Female bulkhead connectors provide paths for RF signals, with dust caps included.
- Type "A" plate measures 2.75" x 6" (70 x 150mm) for a compact interface layout.
- In-stock Fast Track format arrives populated, avoiding a one-off plate build when the set fits.
- Listed at $575.00, the standardized plate costs less than a custom-designed counterpart.
- Plate fit must be confirmed from the enclosure model rather than assumed from the connector set.
Once installed, simple hand tools let the plate follow a later test-setup change. When HDMI and the two RF paths cover the wall crossings, the ready layout preserves the delivery advantage.
