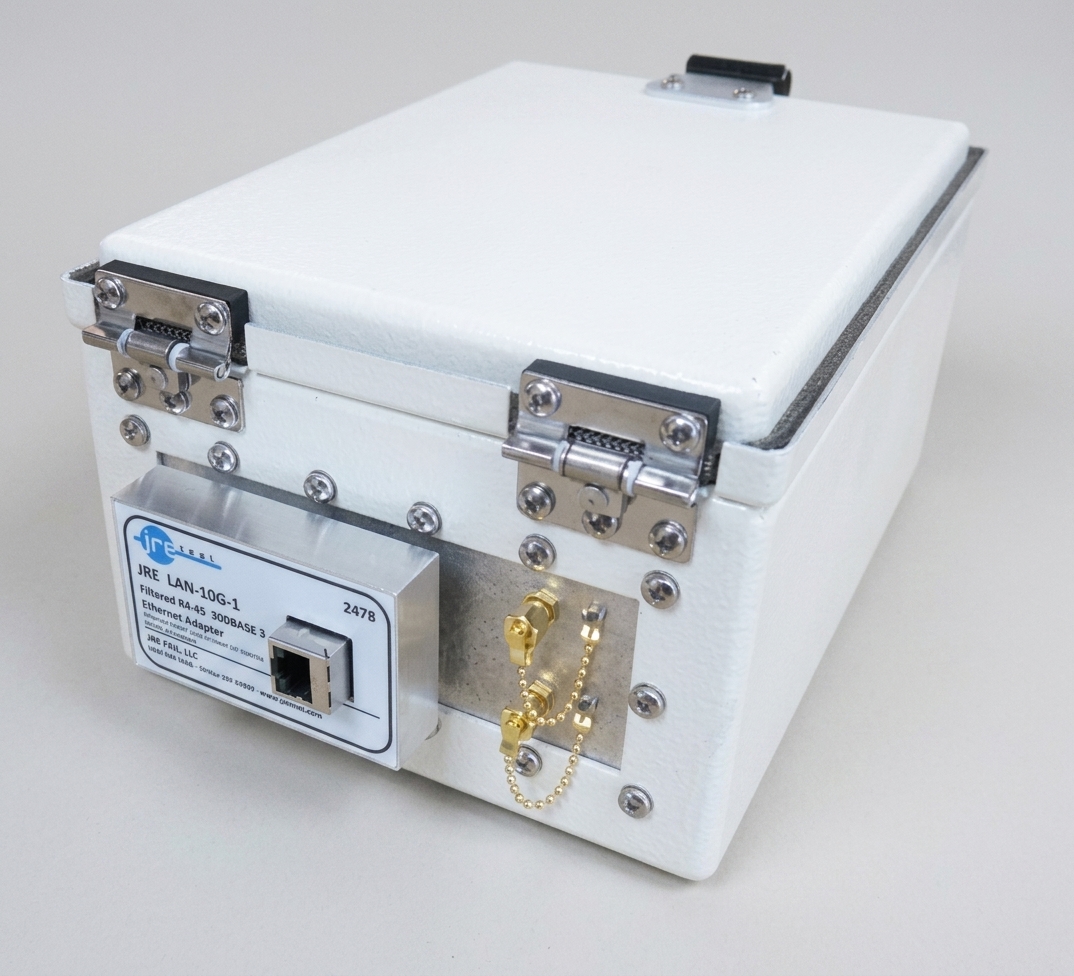

RF Shielded Test Enclosure — Benchtop — JRE 0709-LAN10G
Pre-configured JRE 0709 with a LAN-10G filtered 10GBASE-T interface, mode-selective filtering, and 2 SMA bulkheads.
JRE 0709-LAN10G specifications
- Inside dimensions
- 3.25" H x 6.0" W x 8.5" D (90 x 150 x 215 mm)
- Outside dimensions
- 4.5" H x 7.25" W x 9.75" D (115 x 185 x 250 mm)
- Isolation
- −100 dB DC to 1 GHz, −95 dB to 3 GHz, −85 dB to 6 GHz
- Weight
- 5 lbs (2.3 kg); shipping 6 lbs (2.7 kg)
- Shipping Weight
- 6 lbs (2.7 kg)
- Shipping Dimensions
- 13" x 10" x 9" (330mm x 255mm x 230mm)
- RF Feedthru
- 2 each of SMA female bulkheads
- RF Filtered Interface
- One JRE LAN-10G Ethernet 10GBASE-T Gigabit Filtered interface
- Connector Covers
- Dust cover caps with tether chains included for all RF connectors
- RF Absorbing Foam
- 1/2" (13 mm) thick; temperature rating 90°C; UL 94V-0 flammability rating
- Construction
- Rugged welded aluminum
- Hinge
- Heavy duty stainless steel friction hinge
JRE 0709-LAN10G overview
If the Ethernet link must remain 10GBASE-T while the DUT is isolated, the JRE 0709-LAN10G packages that interface in the smallest enclosure family. It is built around the high-speed wired path rather than leaving the I/O choice open.
- LAN-10G filtered interface provides a conductive 10GBASE-T Ethernet path through the enclosure wall.
- Mode-selective filtering passes differential data unfiltered while filtering common-mode RF interference.
- Interior measures 3.25" H x 6.0" W x 8.5" D (90 x 150 x 215 mm).
- Isolation is −100 dB from DC to 1 GHz, −95 dB to 3 GHz, and −85 dB to 6 GHz.
- 2 SMA female bulkheads include tethered dust caps for the RF connection points.
- 1/2" (13 mm) RF absorbing foam helps reduce reflections and hot-spots around the test article.
At $1,220.00, this in-stock configuration is the specialist Ethernet member of the compact line. I would use the lower-priced LAN sibling when 10GBASE-T is not required and reserve this version for the requirement it was built around. Either way, size the enclosure with every attached cable and adapter in place.
