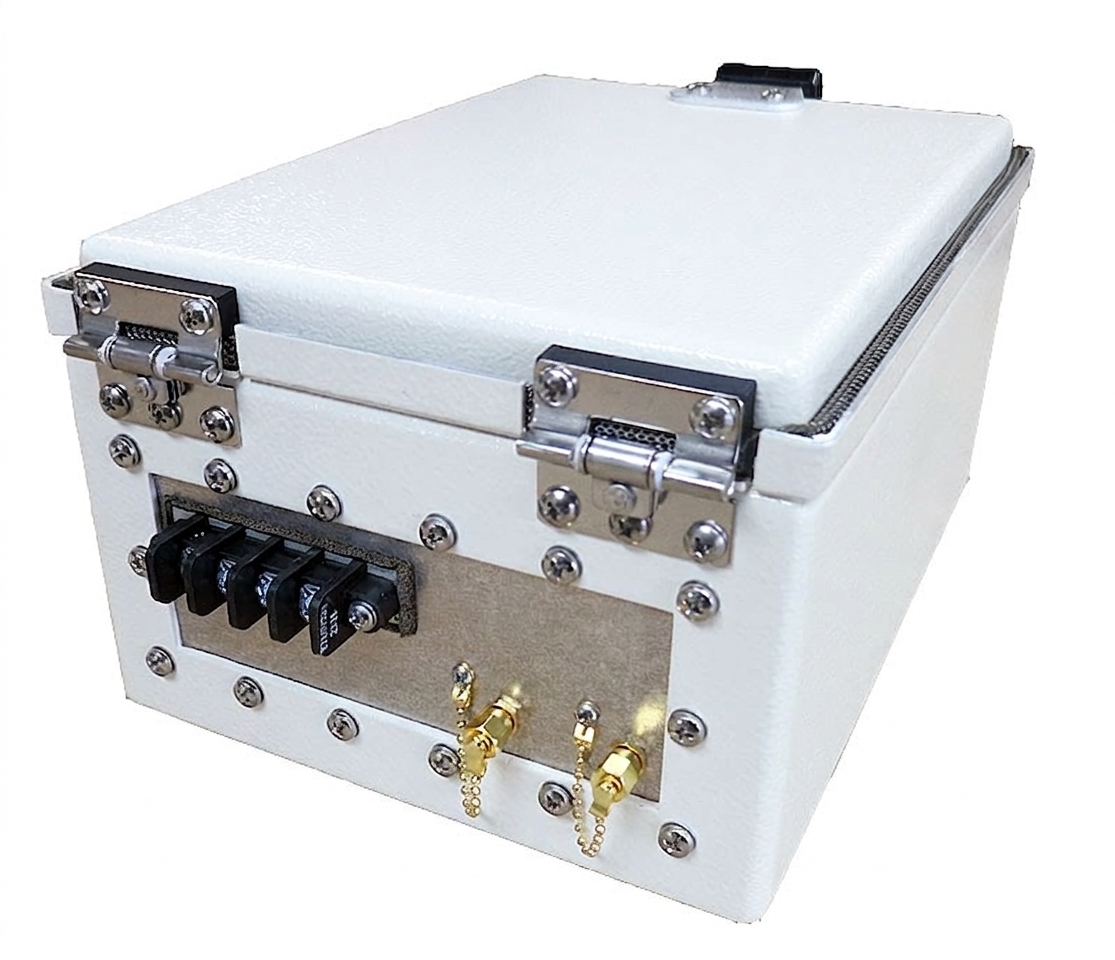

RF Shielded Test Enclosure — Benchtop — JRE 0709-4TERM
Pre-configured JRE 0709 with a filtered 4-terminal strip, 2 SMA bulkheads, and a 3.25-inch-high interior.
JRE 0709-4TERM specifications
- Inside dimensions
- 3.25" H x 6.0" W x 8.5" D (90 x 150 x 215 mm)
- Outside dimensions
- 4.5" H x 7.25" W x 9.75" D (115 x 185 x 250 mm)
- Isolation
- −100 dB DC to 1 GHz, −95 dB to 3 GHz, −85 dB to 6 GHz
- Weight
- 5 lbs 2.3 kg
- Shipping Weight
- 6 lbs 2.7 kg
- Shipping Dimensions
- 13" x 10" x 9" / 330mm x 255mm x 230mm
- RF Absorbing Foam
- 1/2" (13 mm) thick, temperature rating 90°C, UL 94V-0 flammability rating
- RF Feedthru
- 2 each of SMA female bulkheads
- RF Filtered Interface
- One JRE Filtered 4 terminal strip
- Terminal Strip Rating
- High current (20Amps) and voltages up to 250VAC/100VDC
- Connector Covers
- Dust cover caps with tether chains included for all RF connectors
- Construction
- Rugged welded aluminum
- Door
- Heavy duty stainless steel friction hinge; adjustable latch; double contact door shields; long life door gasket material with double edge engagement
JRE 0709-4TERM overview
When a small DUT needs power or general-purpose wired access inside a shielded bench setup, the JRE 0709-4TERM keeps the configuration direct. I recommend this version when the filtered terminal interface already matches the job, because it arrives installed rather than as a blank plate.
- Filtered 4-terminal strip carries up to 20Amps and 250VAC/100VDC for general wired connections.
- Interior measures 3.25" H x 6.0" W x 8.5" D (90 x 150 x 215 mm).
- Isolation is −100 dB from DC to 1 GHz, −95 dB to 3 GHz, and −85 dB to 6 GHz.
- 2 SMA female bulkheads include tethered dust caps for protected RF connection points.

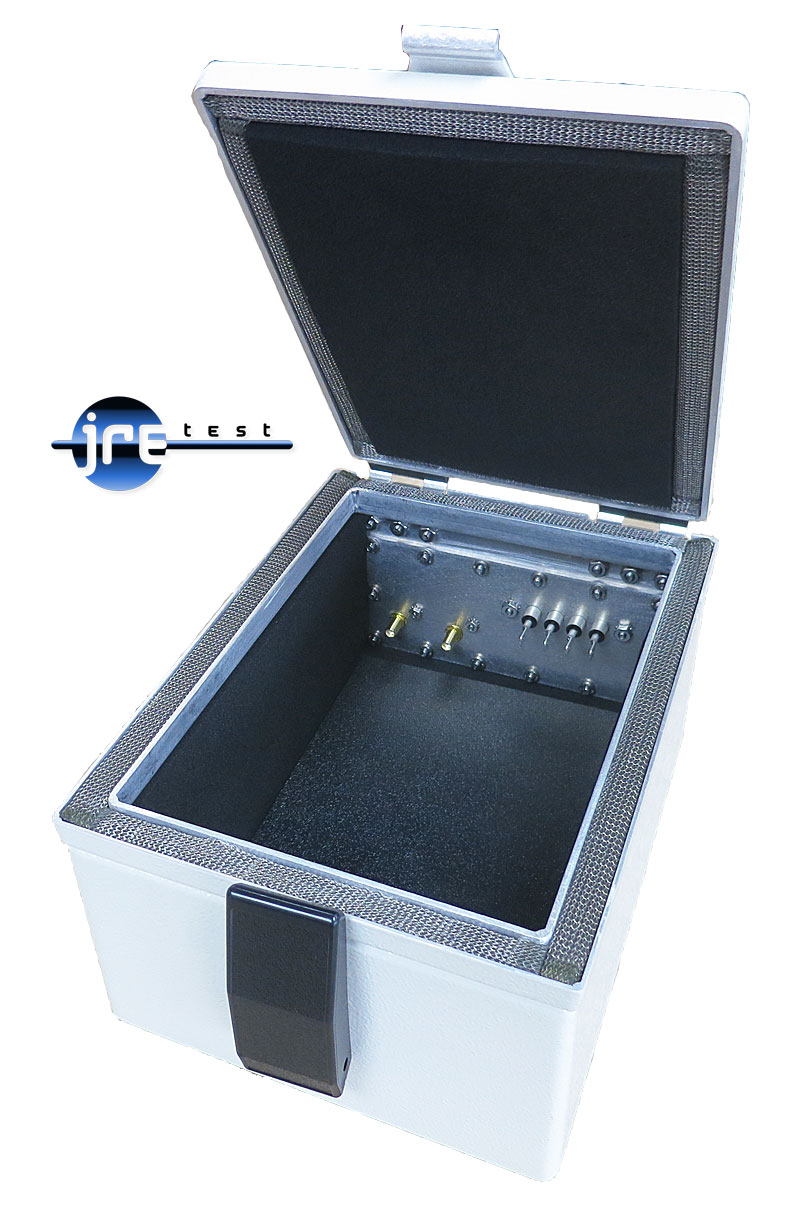

- 1/2" (13 mm) RF absorbing foam reduces reflections and hot-spots around the DUT.
- Welded aluminum construction, an adjustable latch, and double-contact door shields support repeated bench use.
At $765.00, this compact configuration is in stock. Check the connected DUT against the interior, not the bare device alone. Cables, adapters, or a second device can make the available volume the deciding constraint.
