Test Verification Set — JRE TVK-2
Complete 2.45 GHz isolation-verification set with matched source and analyzer, 115 dB dynamic range, Yagi, Near-Field antennas, and rugged case.
JRE TVK-2 specifications
- Outside dimensions
- 14" H x 18" W x 7" D (355 x 460 x 180 mm)
- Isolation
- −100 dB
- Weight
- 11 lbs (5 kg)
- Operating Frequency
- 2.45 GHz
- Dynamic Range
- 115 dB
- Sensitivity
- −115 dBm
- Shipping dimensions
- 20"x15"x11" (510 x 380 x 280mm)
- Power
- Rechargeable battery powered
- Includes

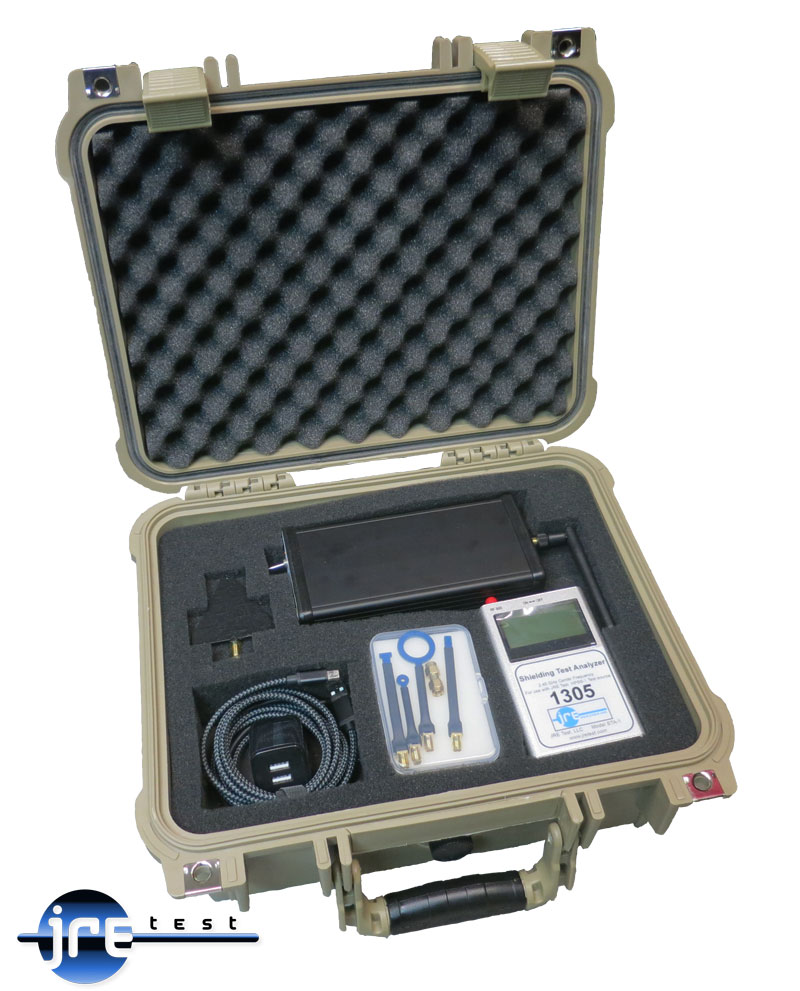

- JRE STA-1 hand held spectrum analyzer, JRE HPSS-1 high power test signal source, Near-Field antenna set, directional Yagi antenna, rugged equipment case
JRE TVK-2 overview
The TVK-2 is how you prove a chamber still isolates and track down leakage when it does not. The kit packages matched instruments that turn isolation from an assumption into a repeatable check. The same set can then help locate where an unexpected signal is escaping.
- Matched instruments operating at 2.45 GHz with no frequency setup required
- 115 dB analyzer dynamic range and −115 dBm sensitivity for weak leakage
- Better than −100 dB enclosure isolation measurable with the complete set

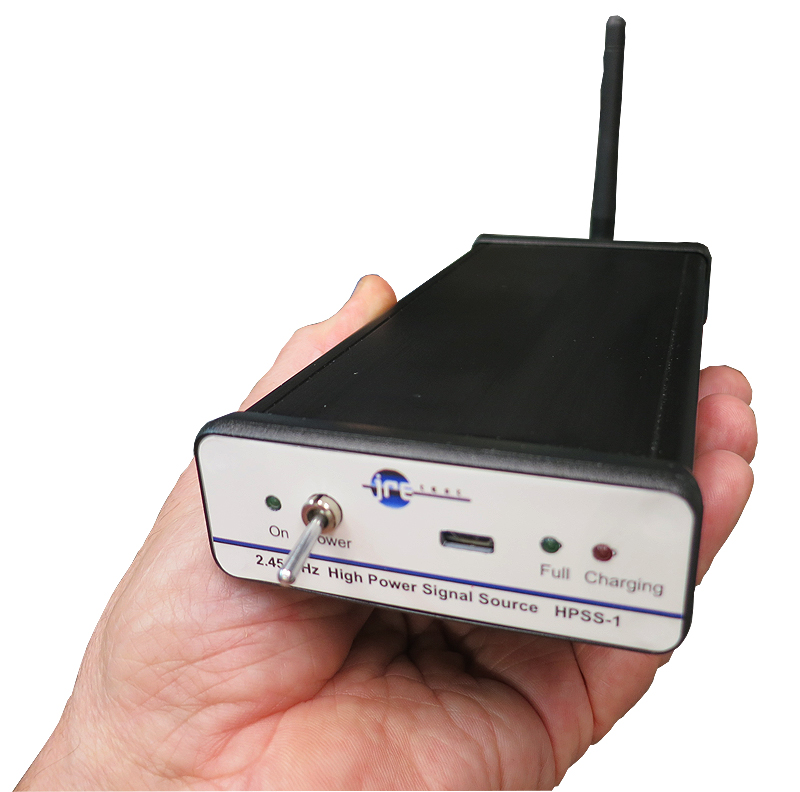

- Includes JRE STA-1 analyzer and JRE HPSS-1 high-power synthesized source
- Directional Yagi plus Near-Field antenna set for broad checks and precise leak location
- Rechargeable battery-powered instruments avoid power cables crossing the shield barrier

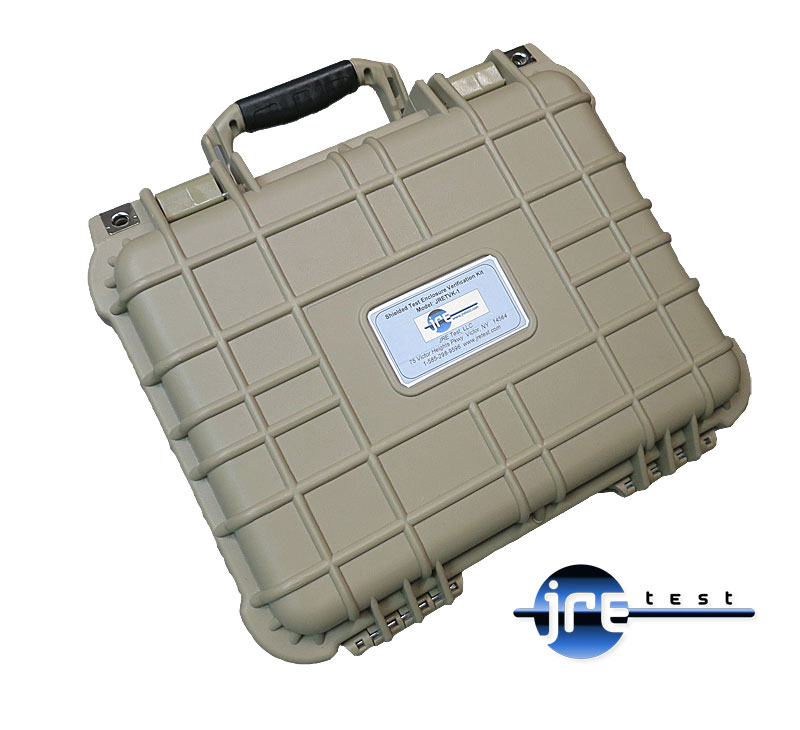

- Rugged case measures 14" H x 18" W x 7" D (355 x 460 x 180 mm)
- 11 lbs (5 kg) shipping weight for the complete portable kit
Use the Yagi for the overall health check, then change to the Near-Field antennas when a seam, door, or I/O plate needs closer investigation. Periodic measurements are especially useful after the enclosure has been shipped or reconfigured. At $1,810.00, the TVK-2 is the complete choice when the lab needs both source and receiver rather than one component alone.
Go deeper
Used in: EMC Pre-Compliance · Production & QA
- Measuring and Verifying the Shielding Isolation of an RF Shielded Test Enclosure Verify your RF shielded test enclosure's isolation with the JRE TVK-2 kit: measure the difference inside vs. outside, add path-loss, and pinpoint leaks.
- The effect of adding multiple I/O filters The weakest-link principle, the 3 dB-per-doubling table, and proven techniques to recover isolation.
- Taking the mystery out of RF wireless testing The overview: why a shielded chamber is needed, the −100/−95/−85 dB spec, absorber foam and verification.
- The RF absorbing foam inside your test chamber Why the foam is the damper and not the shield — 40 dB per wall bounce, and why a bare box gives you unrepeatable readings.
