Fast Track Populated I/O Plate — JRE C5-PEM-LAN10G-USB3

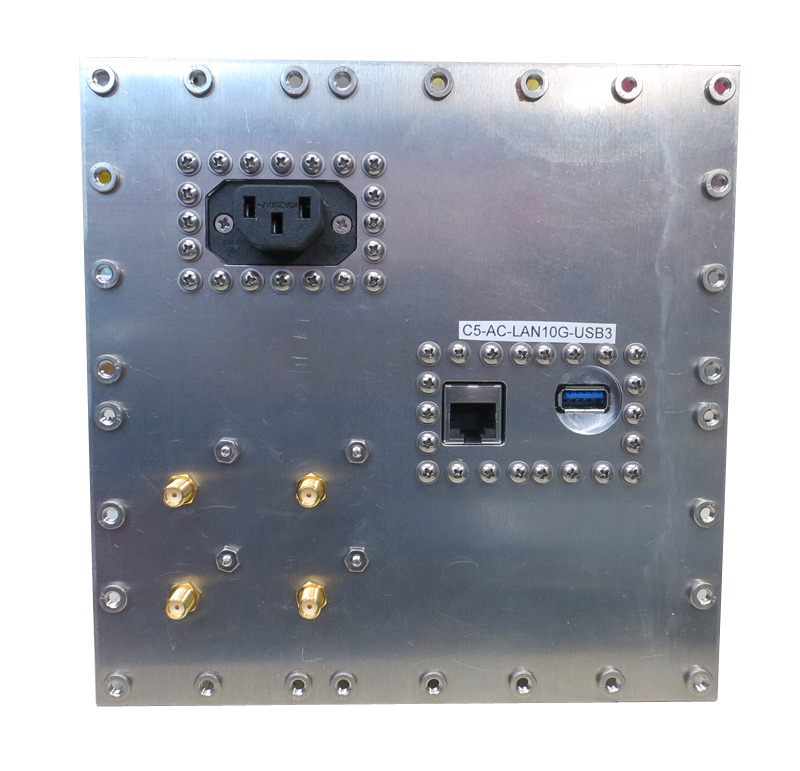

Type C Fast Track plate with LAN 10G, USB3, a PEM-1 filtered mains entry module, and 4 Female SMA bulkheads.
JRE C5-PEM-LAN10G-USB3 specifications
- Part Number
- C5-PEM-LAN10G-USB3
- SMA Connectors
- 4 SMA Female bulkhead connectors
- Filtered Interface
- 1 LAN10G-USB 3 Dual Filtered Interface: RJ-45 10G Ethernet and USB 3
- Power Entry
- 1 PEM-1 Filtered mains power entry module
- Plate Size
- Type "C" I/O plate
- Compatible Enclosures
- JRE 0814, JRE 0814-2R, JRE 0814-2R-A, JRE 0814-A, JRE 1522, JRE 1714, JRE 1720, JRE 2233, JRE 2525, JRE 2830, JRE 3036
JRE C5-PEM-LAN10G-USB3 overview
This is the populated C-size plate for a setup that needs its high-speed network and USB links together with AC mains and RF access. Because every major crossing is already selected, it is most useful when the DUT connector list matches without compromise.
- 1 LAN10G-USB 3 Dual Filtered Interface combines RJ-45 10G Ethernet and USB 3.
- LAN 10G and USB3 use mode discrimination, passing differential data while low-pass filtering common-mode RF.
- 1 PEM-1 Filtered mains power entry module handles the AC mains crossing.
- 4 Female SMA bulkhead connectors with dust caps provide RF paths.
- Type "C" format is field-replaceable with simple hand tools.
- Fast Track population supports delivery in days when paired with an in-stock enclosure.
At $1,305.00, this is the ready-populated route when the complete high-speed connector set matches. I recommend including the enclosure model and actual link types with the quote request so plate fit and interface choice can be confirmed. If the exact set does not match, specify a custom plate instead.
