Fast Track Populated I/O Plate — JRE C5-PEM-LAN-USB3

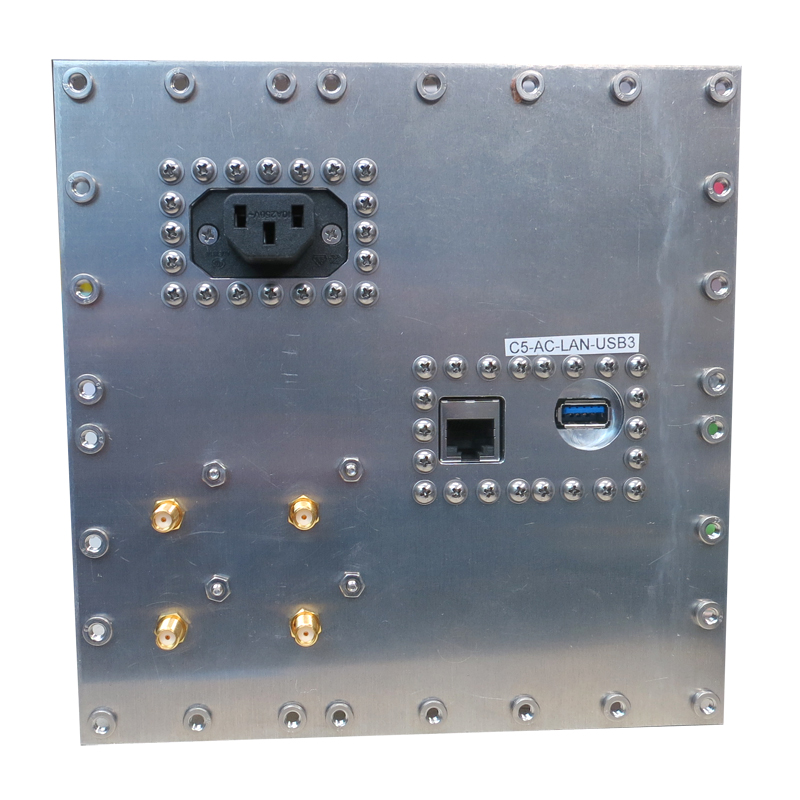

Type C Fast Track plate with LAN, USB3, a PEM-1 filtered mains entry module, and 4 Female SMA bulkheads.
JRE C5-PEM-LAN-USB3 specifications
- Part number
- C5-PEM-LAN-USB3
- SMA Female bulkhead connectors
- 4
- Filtered Interface
- 1 LAN-USB 3 Dual Filtered Interface: RJ-45 Ethernet and USB 3
- Power Entry Module
- 1 PEM-1 Filtered mains power entry module
- Plate size
- Type "C" I/O plate
- Compatible enclosures
- JRE 0814, JRE 0814-2R, JRE 0814-2R-A, JRE 0814-A, JRE 1522, JRE 1714, JRE 1720, JRE 2233, JRE 2525, JRE 2830, JRE 3036
JRE C5-PEM-LAN-USB3 overview
I use USB3 as the deciding reason to choose this plate over the otherwise similar lower-speed combination. It keeps that USB path beside standard LAN, filtered mains entry, and RF bulkheads without asking for a custom layout.
- 1 LAN-USB 3 Dual Filtered Interface combines RJ-45 Ethernet and USB 3.
- USB3 uses mode discrimination, passing differential data while low-pass filtering common-mode RF.
- The LAN channel uses low-pass filtering for its Ethernet signal family.
- 1 PEM-1 Filtered mains power entry module handles the AC mains crossing.
- 4 Female SMA bulkhead connectors with dust caps provide RF paths.
- Type "C" format is field-replaceable with simple hand tools.
- Fast Track population supports delivery in days with an in-stock enclosure.
The $1,195.00 price is justified when the DUT genuinely needs the higher-speed USB path. The filtered mains entry and RF count should be checked with the same care. Once the full connector set is settled, Fast Track population can support delivery in days with an in-stock enclosure.
