Fast Track Populated I/O Plate — C5-PEM-LAN-USB2

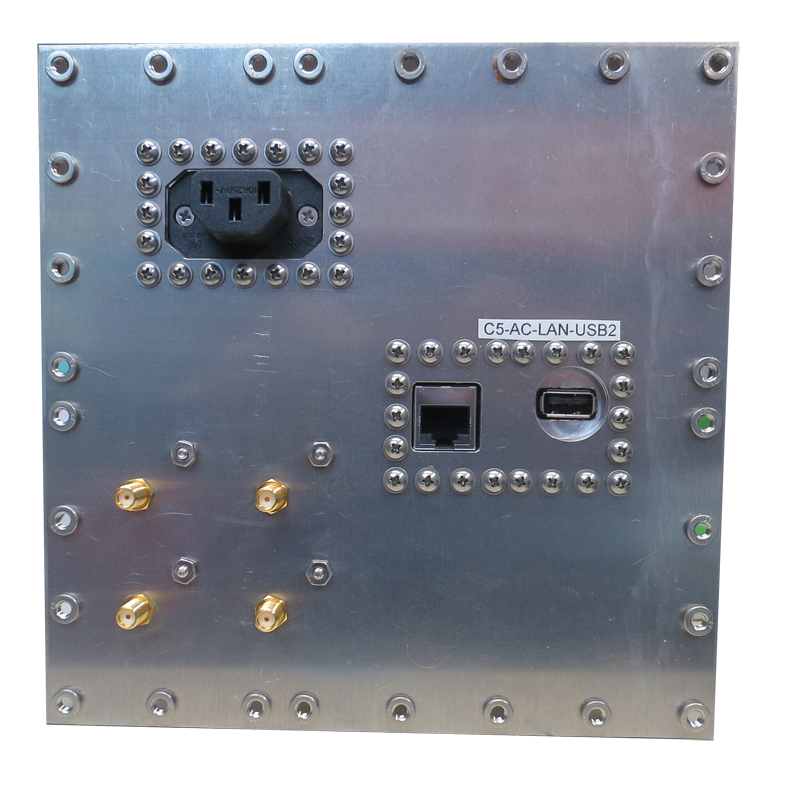

Type C Fast Track plate with LAN, USB2, a PEM-1 filtered mains entry module, and 4 Female SMA bulkheads.
01 Specifications
- Part Number
- C5-PEM-LAN-USB2
- SMA Connectors
- 4 SMA Female bulkhead connectors
- Filtered Interface 1
- LAN-USB 2 Dual Filtered Interface: RJ-45 Ethernet and USB 2
- Filtered Interface 2
- PEM-1 Filtered mains power entry module
- Plate Size
- Type "C" I/O plate
- Compatible Enclosures
- JRE 0814, JRE 0814-2R, JRE 0814-2RA, JRE 0814-A, JRE 1522, JRE 1714, JRE 1720, JRE 2233, JRE2525, JRE 2830, JRE3036
02 Overview
For a DUT powered from AC mains, I treat the mains-entry choice as the anchor for this populated C-size plate. It keeps filtered mains entry, LAN, USB2, and RF paths together when that connector mix matches the bench.
- 1 LAN-USB 2 Dual Filtered Interface combines RJ-45 Ethernet and USB 2.
- LAN and USB 2 use low-pass filtering for their respective signal families.
- 1 PEM-1 Filtered mains power entry module handles the AC mains crossing.
- 4 Female SMA bulkhead connectors with dust caps provide RF paths.
- Type "C" format is field-replaceable with simple hand tools.
- Fast Track population supports delivery in days when paired with an in-stock enclosure.
At $1,080.00, this PEM configuration is the practical route when mains entry is already part of the test setup. A different power crossing or data mix calls for a custom plate, not an improvised adapter. Because the panel remains field-replaceable, the enclosure can take a different plate later without changing its body.
Tell us what connections your device needs.
Tell us what connections you need to your device under test — USB, Ethernet, RS-232, RF connectors, etc. We'll spec it out with you. No cart, no checkout: you send an inquiry and we quote it.
Request a Quote
