Fast Track Populated I/O Plate — JRE C4-4T-LAN10G-USB3

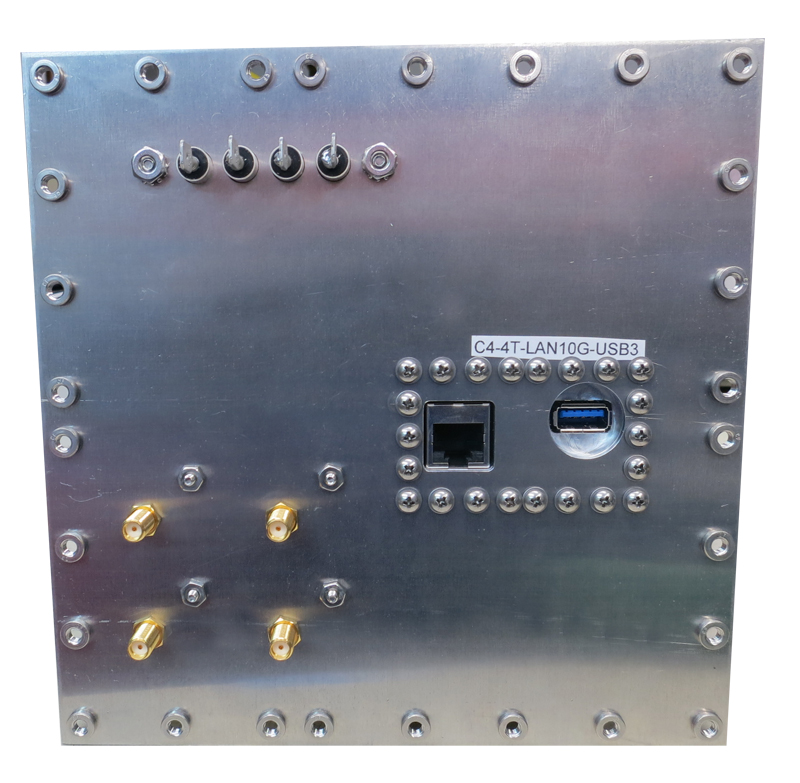

Type C Fast Track plate with LAN 10G, USB3, a 250VAC/20A max terminal feed through, and 4 Female SMA bulkheads.
JRE C4-4T-LAN10G-USB3 specifications
- Part number
- C4-4T-LAN10G-USB3
- SMA Female bulkhead connectors
- 4
- LAN10G-USB 3 Dual Filtered Interface
- 1
- 4 Terminal filtered feed through
- rated at 250VAC/20A max, 100VDC/20A max
- Plate type
- Type "C" I/O plate
- Compatible enclosures
- JRE 0814, JRE 0814-2R, JRE 0814-2R-A, JRE 0814-A, JRE 1522, JRE 1714, JRE 1720, JRE 2233, JRE 2525, JRE 2830, JRE 3036
JRE C4-4T-LAN10G-USB3 overview
Both wired links are high speed in this configuration: LAN 10G and USB3 share the plate with terminal-fed power and RF access. I would step down to a simpler populated plate if either link can use a lower-speed interface.
- 1 LAN10G-USB 3 Dual Filtered Interface combines RJ-45 10G Ethernet and USB 3.
- LAN 10G and USB3 use mode discrimination, passing differential data while low-pass filtering common-mode RF.
- 1 4 Terminal filtered feed through provides the separate AC or DC crossing.
- Terminal rating is 250VAC/20A max and 100VDC/20A max.
- 4 Female SMA bulkhead connectors provide RF signal paths.
- Type "C" format can be replaced in the field with simple hand tools.
- Fast Track population supports delivery in days when paired with an in-stock enclosure.
At $1,150.00, the complete connector set should be settled before selection. The terminal feed through, rather than a mains entry module, must match the DUT's power plan. With an in-stock enclosure, Fast Track population can support delivery in days.
