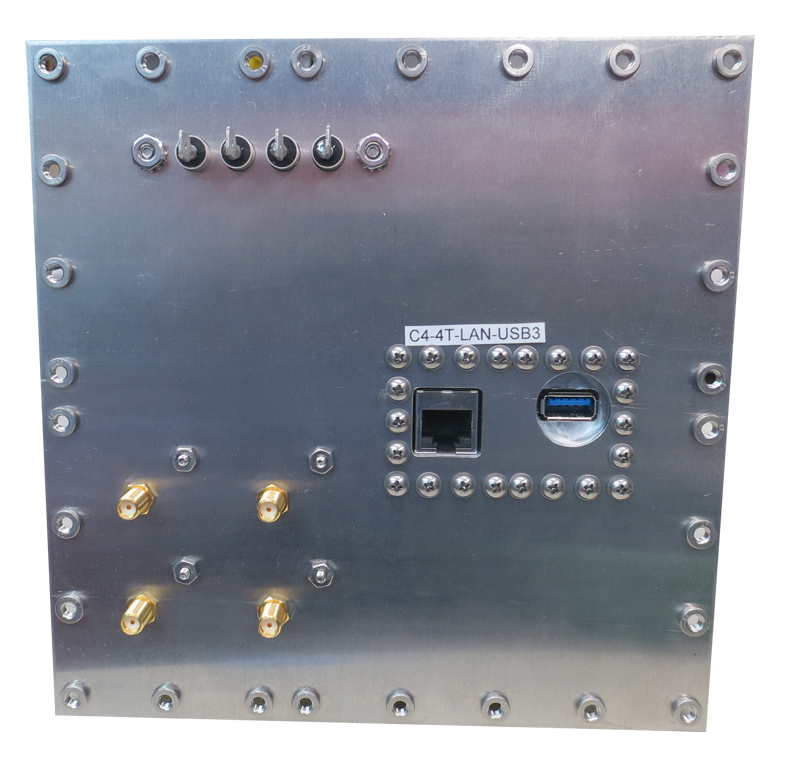

Fast Track Populated I/O Plate — JRE C4-4T-LAN-USB3
Type C Fast Track plate with LAN, USB3, a 250VAC/20A max terminal feed through, and 4 Female SMA bulkheads.
JRE C4-4T-LAN-USB3 specifications
- Part Number
- C4-4T-LAN-USB3
- SMA Female bulkhead connectors
- 4
- Filtered Interface
- 1 LAN-USB 3 Dual Filtered Interface: RJ-45 Ethernet and USB 3
- Terminal filtered feed through
- 1, rated at 250VAC/20A max, 100VDC/20A max
- Compatible plate size
- Type "C" I/O plate
- Compatible enclosures
- JRE 0814, JRE 0814-2R, JRE 0814-2R-A, JRE 0814-A, JRE 1522, JRE 1714, JRE 1720, JRE 2233, JRE 2525, JRE 2830, JRE 3036
JRE C4-4T-LAN-USB3 overview
For this layout, I start with the combination of USB3 data and terminal-fed power. The plate pairs that USB3 path with wired Ethernet and RF bulkheads while keeping the power crossing on a filtered terminal feed through.
- 1 LAN-USB 3 Dual Filtered Interface combines RJ-45 Ethernet and USB 3.
- USB3 uses mode discrimination, passing differential data while low-pass filtering common-mode RF.
- The LAN channel uses low-pass filtering for its Ethernet signal family.
- 1 4 Terminal filtered feed through carries the separate AC or DC connection.
- Terminal rating is 250VAC/20A max and 100VDC/20A max.
- 4 Female SMA bulkhead connectors with dust caps provide RF paths.
- Type "C" format is field-replaceable with simple hand tools.
- Fast Track population supports delivery in days with an in-stock enclosure.
At $1,040.00, it makes sense when USB3 is actually required. If the USB connection is lower speed, select the lower-speed plate instead of paying for unused capability. The terminal feed through should likewise match the way the DUT is powered.
