Fast Track Populated I/O Plate — JRE C2-4T-LAN10G-USB3-2

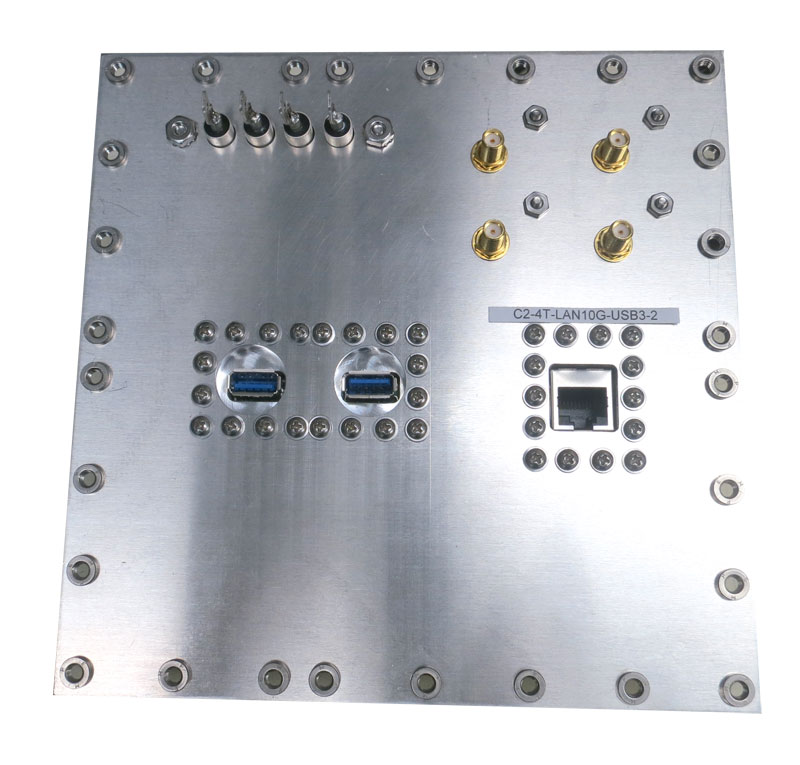

Type C Fast Track plate with 1 LAN10G, dual USB3, 4 SMA Female bulkheads, and a 4 Terminal filtered feed through.
JRE C2-4T-LAN10G-USB3-2 specifications
- Part Number
- C2-4T-LAN10G-USB3-2
- SMA Female Bulkhead Connectors
- 4
- Filtered LAN Interface
- 1 x LAN 10G Ethernet (RJ-45)
- Filtered USB Interface
- 1 x Dual USB3
- Filtered Terminal Feed Through
- 1 x 4 Terminal, 250VAC/20A max, 100VDC/20A max
- Plate Size
- "C" Size
- Compatible Enclosures
- JRE 0814, JRE 0814-2R, JRE 0814-2R-A, JRE 0814-A, JRE 1522, JRE 1714, JRE 1720, JRE 2233, JRE 2525, JRE 2830, JRE 3036
JRE C2-4T-LAN10G-USB3-2 overview
Connector density is the useful fact on the C2-4T-LAN10G-USB3-2: one fast Ethernet path and two high-speed USB paths share the plate with power and RF. I use it when both wired data functions genuinely need their high-speed versions.
- 1 LAN10G Ethernet interface uses an RJ-45 connection for the wired network path.
- 1 dual USB3 interface provides the paired high-speed USB connections.
- LAN10G and USB3 discriminate by mode: differential data passes while common-mode RF is low-pass filtered out.
- 4 SMA Female bulkhead connectors carry RF signals and arrive with dust caps.
- 4 Terminal filtered feed through handles 250VAC/20A max or 100VDC/20A max.
- Type C format can be replaced in the field with simple hand tools.
At $1,720.00, this is the ready-built plate for the densest high-speed data pairing in the C2 set. An in-stock enclosure can keep delivery to days. I move to a custom C-size layout when either data family or any connector count differs.
