Fast Track Populated I/O Plate — JRE C3-PEM-LAN2-HDMI2
Type C Fast Track plate with dual HDMI, dual LAN, filtered mains entry, and 4 Female SMA bulkheads.
JRE C3-PEM-LAN2-HDMI2 specifications
- SMA connectors
- 4 Female SMA bulkhead connectors
- LAN interface
- 1 Dual Filtered LAN Ethernet interface
- HDMI interface
- 1 Dual HDMI filtered interface
- Power entry
- 1 PEM-1 Filtered mains power entry module
- Plate size
- Type "C"
- Compatible enclosures
- JRE 0814, JRE 0814-2R, JRE 0814-2R-A, JRE 0814-A, JRE 1522, JRE 1714, JRE 1720, JRE 2233, JRE 2525, JRE 2830, JRE 3036
JRE C3-PEM-LAN2-HDMI2 overview

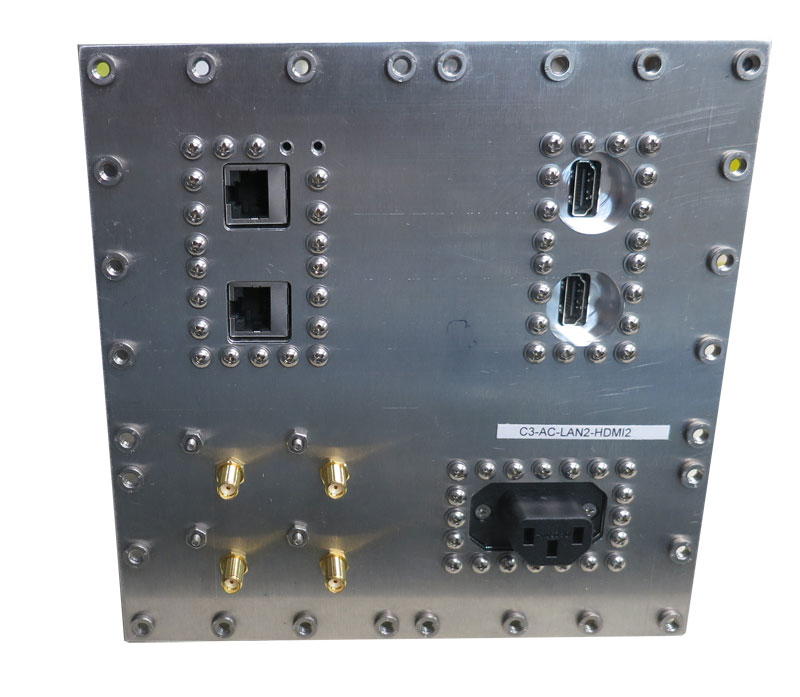

When delivery speed matters, I start with the populated connector set instead of commissioning a plate layout from scratch. This Fast Track plate keeps dual HDMI, dual wired Ethernet, filtered mains power, and RF connections together for a DUT setup that needs them.
- 1 Dual HDMI filtered interface carries the paired HDMI connections through the shield wall.
- 1 Dual Filtered LAN Ethernet interface uses the low-pass approach specified for this Ethernet family.
- 1 PEM-1 Filtered mains power entry module brings the AC mains connection onto the plate.
- 4 Female SMA bulkhead connectors with dust caps provide RF signal paths into and out of the chamber.
- Type "C" format is field-replaceable with simple hand tools as test requirements change.
- In-stock Fast Track population can support delivery in days when paired with an in-stock enclosure.
At $2,145.00, this production plate costs less than having the same layout made as a one-off custom plate. The plate size still has to agree with the enclosure format. If the DUT needs a different interface mix, a custom plate is the better route.
Go deeper
- Interface Connector Guide Compare rejection and data-rate details for JRE USB 2, USB 3, USB-C, LAN, fiber and DB filtered I/O, then specify the right interface plate for an enclosure.
- Why Filtered I/O? What One Unfiltered Cable Does to a Shielded Enclosure See why a small empty hole leaks little RF but one unfiltered wire can reduce a −100 dB enclosure to −40 or −60 dB: a conductor has no cutoff frequency.
