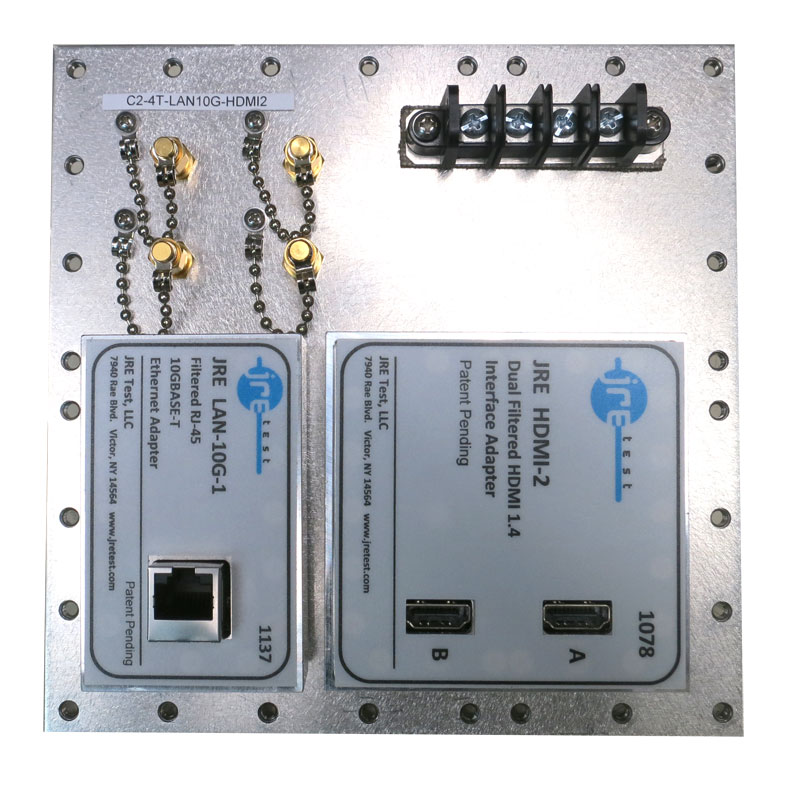

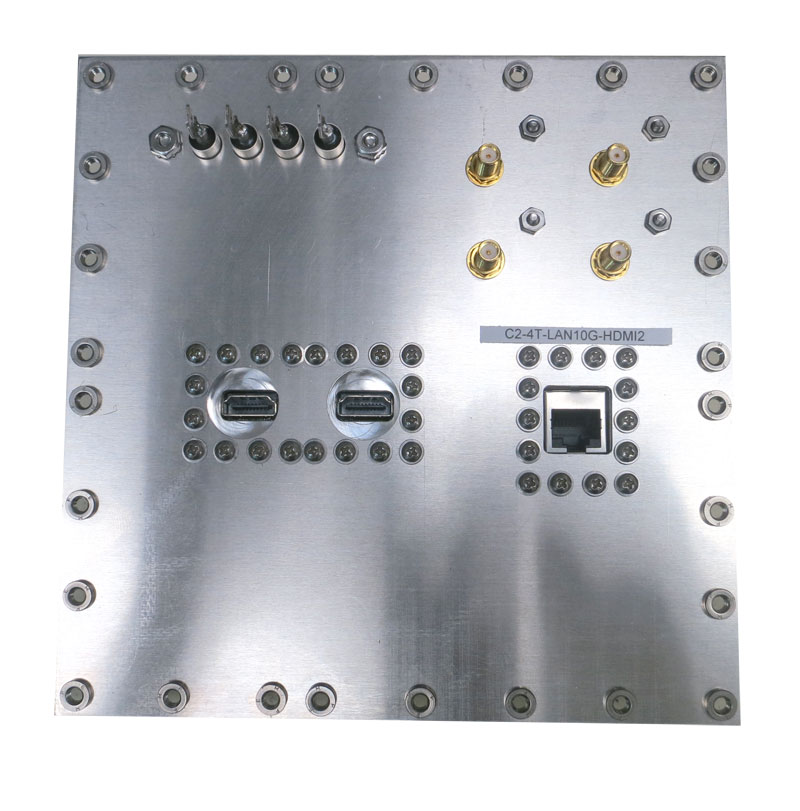

Fast Track Populated I/O Plate — JRE C2-4T-LAN10G-HDMI2
Type C Fast Track plate with 1 LAN10G, dual HDMI, 4 SMA Female bulkheads, and a 4 Terminal filtered feed through.
JRE C2-4T-LAN10G-HDMI2 specifications
- Part Number
- C2-4T-LAN10G-HDMI2
- SMA Female bulkhead connectors
- 4
- Filtered LAN 10G Ethernet interface
- 1
- Dual HDMI filtered interface
- 1
- 4 Terminal filtered feed through
- rated at 250VAC/20A max, 100VDC/20A max
- Plate type
- Type "C" I/O plate
- Compatible enclosures
- JRE 0814, JRE 0814-2R, JRE 0814-2R-A, JRE 0814-A, JRE 1522, JRE 1714, JRE 1720, JRE 2233, JRE 2525, JRE 2830, JRE 3036
JRE C2-4T-LAN10G-HDMI2 overview
LAN10G is the decision that separates this plate from a visually similar standard-Ethernet layout. I specify C2-4T-LAN10G-HDMI2 when the DUT also needs two HDMI paths, filtered power, and four RF crossings.
- 1 filtered LAN10G interface discriminates by mode: differential data passes while common-mode RF is low-pass filtered out.
- 1 dual HDMI filtered interface supplies the two display connections recorded for this configuration.
- 4 SMA Female bulkhead connectors route RF signals and include protective dust caps.
- 4 Terminal filtered feed through is rated at 250VAC/20A max and 100VDC/20A max.
- Screw terminals outside and 1/4" fast-on lugs inside keep power terminations accessible.
- Type C panel can be replaced in the field with simple hand tools.
At $1,720.00, the standardized plate avoids custom design cost when this exact combination fits, and an in-stock enclosure build can shorten to days. I treat LAN10G as the deciding detail; standard Ethernet with the same HDMI count belongs on the LAN1-HDMI2 sibling.
