Fast Track Populated I/O Plate — JRE B2-4T-LAN10G

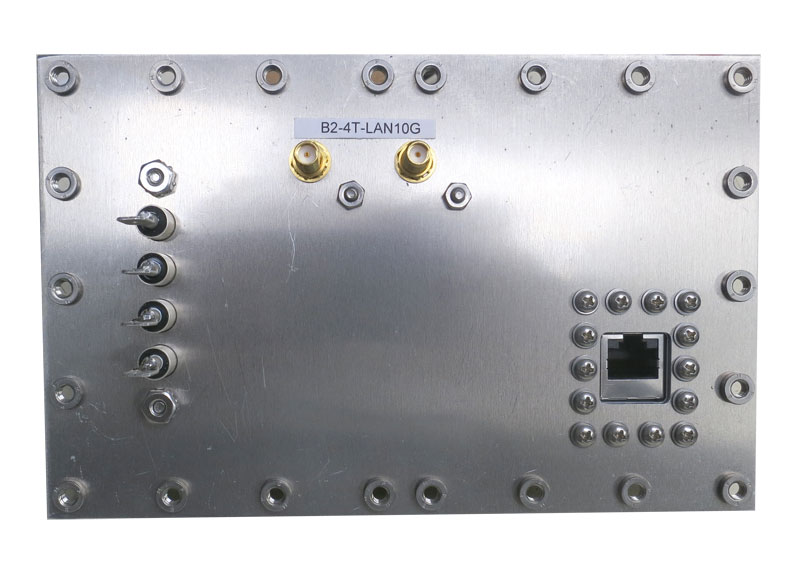

Type B Fast Track plate with 1 LAN-10G interface, 2 SMA Female bulkheads, and a 4 Terminal feed through.
JRE B2-4T-LAN10G specifications
- Part number
- B2-4T-LAN10G
- SMA connectors
- 2 SMA Female bulkhead connectors
- Filtered LAN interface
- 1 LAN-10G Filtered interface (RJ-45 10GBase-T Ethernet)
- Terminal feed through
- 1 4 Terminal filtered feed through rated at 250VAC/20A max, 100VDC/20A max
- Compatible plate size
- Type "B" I/O plate
- Compatible chambers
- JRE 0612CLAM, JRE 0912, JRE 1724, JRE 1729, JRE 1812, JRE 2218
JRE B2-4T-LAN10G overview
The JRE B2-4T-LAN10G is a populated B-size I/O plate carrying a 10GBase-T Ethernet path, filtered power conductors and two RF connections.
- 1 LAN-10G filtered interface provides the RJ-45 10GBase-T Ethernet crossing
- LAN-10G discriminates by mode: differential data passes while common-mode RF is low-pass filtered out
- 2 SMA Female bulkhead connectors with dust caps carry RF signals in or out
- 1 4 Terminal feed through is rated 250VAC/20A max and 100VDC/20A max
- Screw terminals outside and 1/4" fast-on lugs inside terminate the power conductors
- Type "B" plate format is field-replaceable with simple hand tools
At $730.00, the prepopulated plate is priced below a one-off custom version of the same standard layout. Its in-stock status can support shipment within a few days with an in-stock enclosure. I still verify the enclosure plate format before treating this B-size panel as a drop-in configuration.
