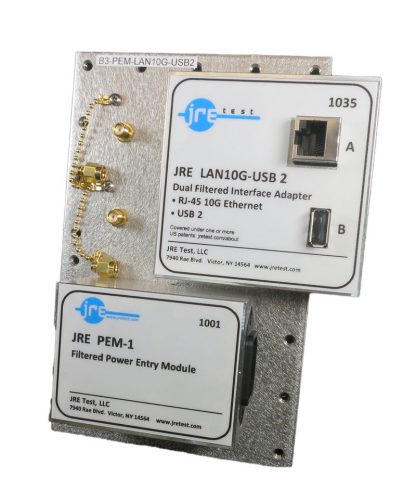

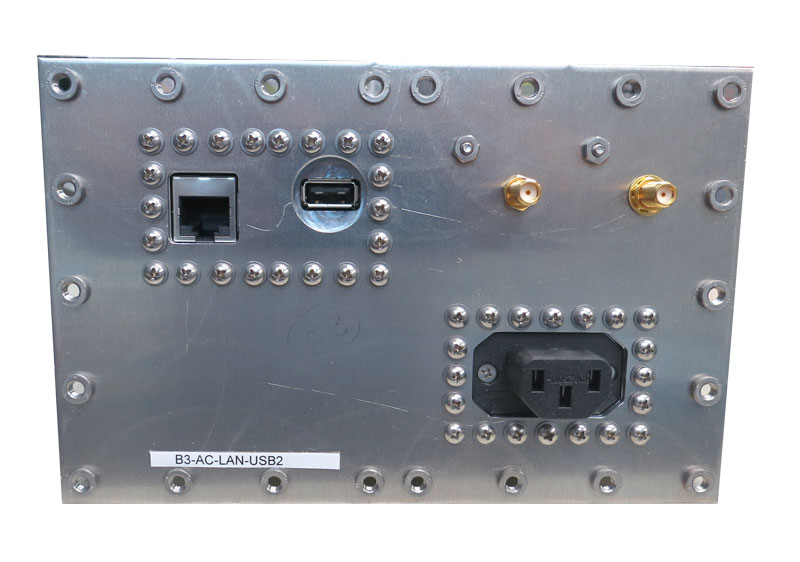

Fast Track Populated I/O Plate — JRE B3-PEM-LAN-USB2
B-size plate with RJ-45 Ethernet, USB2, filtered AC mains entry, and 2 Female SMA connectors.
JRE B3-PEM-LAN-USB2 specifications
- Part number
- B3-PEM-LAN-USB2
- SMA Female bulkhead connectors
- 2
- LAN Ethernet filtered interface
- 1
- USB2 filtered interface
- 1
- Filtered AC mains power entry module
- 1
- Plate type
- Type "B" I/O plate
- Compatible enclosures
- JRE 0612CLAM, JRE 0912, JRE 1724, JRE 1729, JRE 1812, JRE 2218
JRE B3-PEM-LAN-USB2 overview
The filtered AC mains power entry is what distinguishes this plate from a simpler data-and-terminal layout. I use the B3-PEM-LAN-USB2 when the DUT also needs standard Ethernet, USB2, and two RF crossings.
- RJ-45 Ethernet filtered interface carries the network connection through the enclosure wall
- USB2 filtered interface uses the low-pass family approach for the USB data path
- Filtered AC mains power entry module supplies the required internal power crossing
- 2 Female SMA connectors provide dedicated paths for RF signals
- B-size panel is field-replaceable with simple hand tools as the bench changes
- Prepopulated format supports delivery in days when combined with an in-stock enclosure
At $1,115.00, the plate bundles this broad standard connector set without a separate layout step. I compare every interface against the DUT rather than buying unused complexity. When the list matches, the in-stock plate and an in-stock enclosure can keep delivery to days.
