Fast Track Populated I/O Plate — JRE B2-4T-LAN1

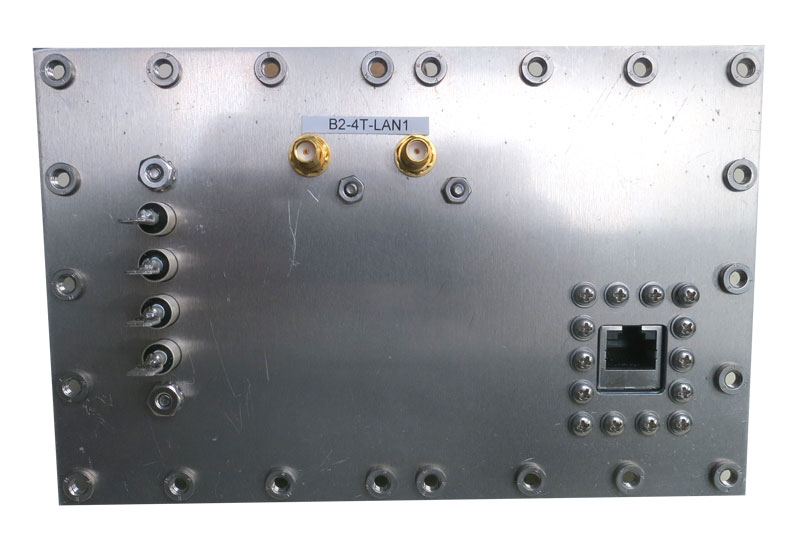

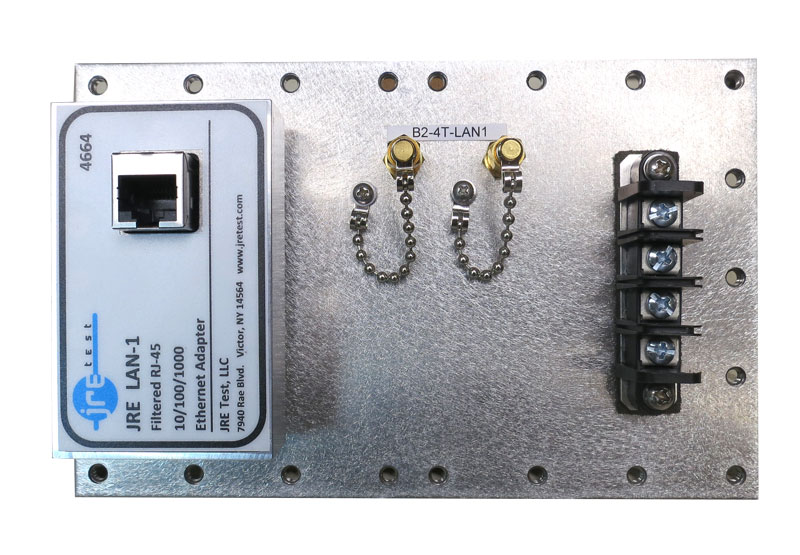

Type B plate with 1x LAN-1 filter, 2 SMA Female bulkheads, and a 4 Terminal filtered feed through.
JRE B2-4T-LAN1 specifications
- Part Number
- JRE B2-4T-LAN1
- SMA Female Bulkhead Connectors
- 2
- Filtered LAN Interface
- 1x LAN-1
- Filtered Terminal Feed Through
- 1x 4 Terminal, rated 250VAC/20A max, 100VDC/20A max
- Plate Size
- Type "B"
- Compatible Enclosures
- JRE 0612CLAM, JRE 0912, JRE 1724, JRE 1729, JRE 1812, JRE 2218
JRE B2-4T-LAN1 overview
When schedule favors a populated network plate, the in-stock B2-4T-LAN1 avoids waiting for an individually machined layout. I start there when RJ-45 Ethernet, filtered power conductors, and two RF paths are already settled.
- 1x LAN-1 filtered interface uses a low-pass design for the Ethernet crossing
- 2 SMA Female bulkhead connectors with dust caps carry RF signals through the plate
- 1x 4 Terminal feed through is rated 250VAC/20A max and 100VDC/20A max
- Screw terminals outside and 1/4" fast-on lugs inside provide defined power terminations
- Type "B" plate format can be replaced in the field with simple hand tools
- In-stock, prepopulated configuration avoids waiting for an individually machined connector layout
The B2-4T-LAN1 is $620.00. Because the standard plate is made in production quantities, it costs less than recreating the same arrangement as a custom plate. I use that advantage only when its network, power, and RF crossings match the bench.
