Fast Track Populated I/O Plate — JRE B1-4T-USB2-1

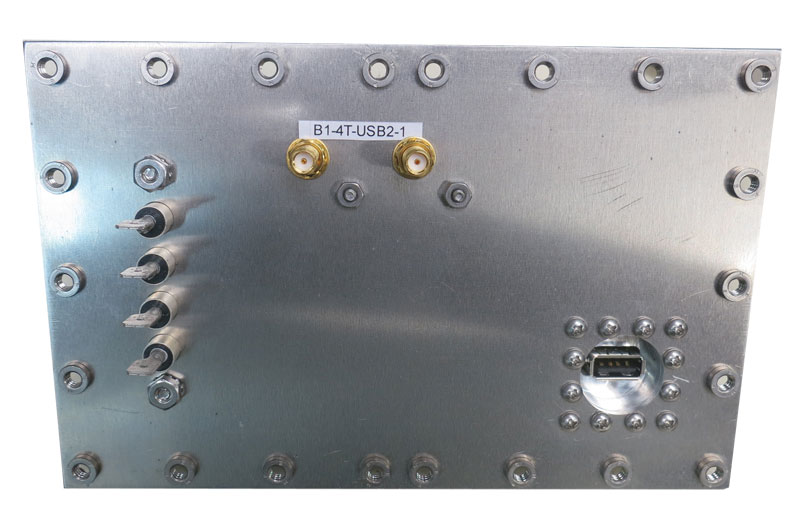

B-size Fast Track plate with USB2 filtering, a 4 terminal filtered feed through, and 2 Female SMA connectors.
JRE B1-4T-USB2-1 specifications
- Part number
- B1-4T-USB2-1
- SMA Female bulkhead connectors
- 2
- USB2 filtered interface
- 1
- 4 Terminal filtered feed through
- rated at 250VAC/20A max, 100VDC/20A max
- Plate type
- Type "B" I/O plate
- Compatible enclosures
- JRE 0612CLAM, JRE 0912, JRE 1724, JRE 1729, JRE 1812, JRE 2218
JRE B1-4T-USB2-1 overview
At $555.00, the B1-4T-USB2-1 turns a known USB2, filtered-power, and RF arrangement into a direct Fast Track purchase. I recommend it when that exact connector set belongs on the DUT bench.
- USB2 filtered interface uses the low-pass family approach for the data crossing
- Filtered 4 terminal feed through carries the required power conductors through the plate
- 2 Female SMA connectors provide separate RF paths for stimulus or measurement
- B-size plate format concentrates the data, power, and RF connections on one panel
- Field replacement takes simple hand tools when a later setup needs different I/O
- Prepopulated Fast Track format supports delivery in days with an in-stock enclosure
A USB-C device should start with the USB-C plate instead of relying on the wrong connector set. I keep this USB2 plate for the established lower-speed path. Simple hand tools still allow a later B-size plate change when the interface requirement moves again.
