RF Shielded Test Enclosure — Benchtop — JRE 0709-USB2

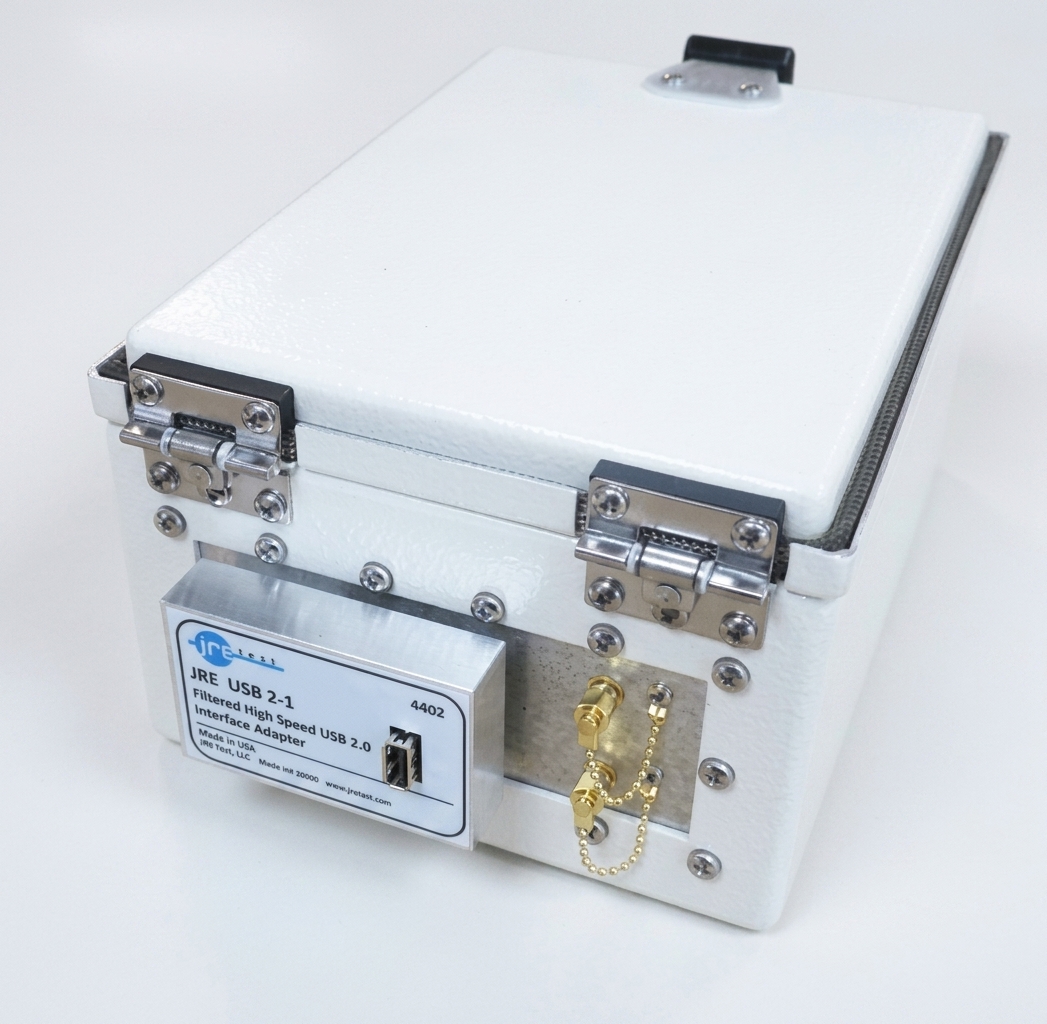

Pre-configured JRE 0709 with a USB2-1 low-pass filtered interface and 2 SMA bulkheads.
JRE 0709-USB2 specifications
- Inside dimensions
- 3.25" H x 6.0" W x 8.5" D (90 x 150 x 215 mm)
- Outside dimensions
- 4.5" H x 7.25" W x 9.75" D (115 x 185 x 250 mm)
- Isolation
- −100 dB DC to 1 GHz, −95 dB to 3 GHz, −85 dB to 6 GHz
- Weight
- 5 lbs (2.3 kg)
- Shipping Weight
- 6 lbs (2.7 kg)
- Shipping Dimensions
- 13" x 10" x 9" (330mm x 255mm x 230mm)
- RF Feedthru
- 2 each of SMA female bulkheads
- RF Filtered Interface
- One JRE USB2-1 Filtered interface
- Connector Covers
- Dust cover caps with tether chains included for all RF connectors
- RF Absorbing Foam
- 1/2" (13 mm) thick; Temperature rating 90°C; UL 94V-0 flammability rating
- Construction
- Rugged welded aluminum
- Hinge
- Heavy duty stainless steel friction hinge
JRE 0709-USB2 overview
A compact test that needs one USB2 connection but not SuperSpeed has a direct fit in the JRE 0709-USB2. I recommend this preconfigured path when the required data and power connection is already settled.
- USB2-1 low-pass filtered interface supplies the required USB connection through the shield wall.
- Interior measures 3.25" H x 6.0" W x 8.5" D (90 x 150 x 215 mm).
- Isolation is −100 dB from DC to 1 GHz, −95 dB to 3 GHz, and −85 dB to 6 GHz.
- 2 SMA female bulkheads include tethered dust caps for protected RF connection points.
- 1/2" (13 mm) RF absorbing foam helps control reflections and hot-spots.
- Welded aluminum construction and a heavy-duty stainless steel friction hinge support repeated use.
The JRE 0709-USB2 is $1,030.00 and in stock. Its value is the clean match between a compact DUT and a known USB2 requirement, without buying a more capable interface than the link needs. Choose it for that settled USB2 use case rather than treating the enclosure as an open-ended I/O platform.
