Fast Track Populated I/O Plate — JRE C4-4T-LAN-USB2
Type C Fast Track plate with LAN, USB2, a 250VAC/20A max terminal feed through, and 4 Female SMA bulkheads.
JRE C4-4T-LAN-USB2 specifications
- Part Number
- C4-4T-LAN-USB2
- SMA Female Bulkhead Connectors
- 4
- Filtered Interface 1
- LAN-USB 2 Dual Filtered Interface: RJ-45 Ethernet and USB 2
- Filtered Feed Through
- 4 Terminal filtered feed through rated at 250VAC/20A max, 100VDC/20A max
- Compatible Plate Size
- Type "C" I/O plate
- Compatible Enclosures
- JRE 0814, JRE 0814-2R, JRE 0814-2R-A, JRE 0814-A, JRE 1522, JRE 1714, JRE 1720, JRE 2233, JRE 2525, JRE 2830, JRE 3036
JRE C4-4T-LAN-USB2 overview

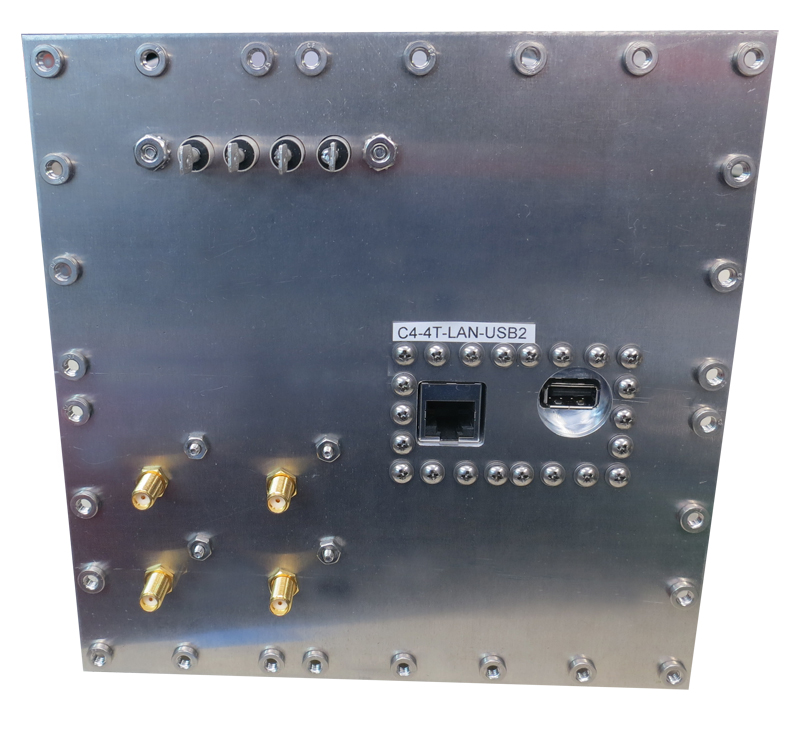

The JRE C4-4T-LAN-USB2 is a populated C-size I/O plate carrying filtered AC or DC power, LAN, USB2 and RF connections.
- 1 LAN-USB 2 Dual Filtered Interface combines RJ-45 Ethernet and USB 2 on one housing.
- LAN and USB 2 channels use low-pass filtering for their respective signal families.
- 1 4 Terminal filtered feed through provides the separate power crossing.
- Terminal rating is 250VAC/20A max and 100VDC/20A max.
- 4 Female SMA bulkhead connectors with dust caps provide RF signal paths.
- Type "C" format is field-replaceable with simple hand tools.
- Fast Track population can support delivery in days with an in-stock enclosure.
At $925.00, the standardized population provides a cost saving over a comparable custom layout. Keep this plate when terminal power, wired Ethernet, USB 2, and the listed RF count all match. If the DUT takes power through a filtered mains entry module instead, the PEM plate family is the closer fit.
