Fast Track Populated I/O Plate — C2-4T-LAN1-USB3-2
In-stock Type C plate with 1 LAN, dual USB3, 4 SMA Female bulkheads, and a 4 Terminal filtered feed through.
01 Specifications
- SMA Female bulkhead connectors
- 4
- Filtered LAN Ethernet interface
- 1
- Dual USB3 filtered interface
- 1
- 4 Terminal filtered feed through
- rated at 250VAC/20A max, 100VDC/20A max
- Plate size
- Type "C"
- Compatible enclosures
- JRE 0814, JRE 0814-2R, JRE 0814-2RA, JRE 0814-A, JRE 1522, JRE 1714, JRE 1720, JRE 2233, JRE2525, JRE 2830, JRE3036
02 Overview

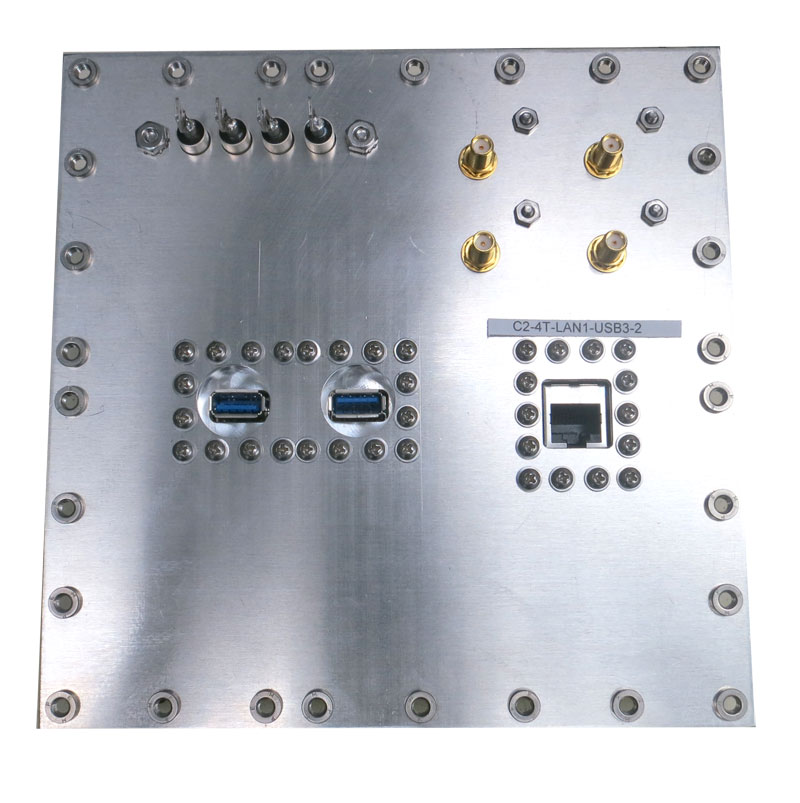

The one-to-two data balance defines this plate: one standard Ethernet connection beside two SuperSpeed USB paths. I use the C2-4T-LAN1-USB3-2 when filtered power and four RF crossings complete that C-size layout.
- 1 filtered LAN Ethernet interface uses the low-pass approach assigned to the standard network family.
- 1 dual USB3 interface discriminates by mode: differential data passes while common-mode RF is low-pass filtered out.
- 4 SMA Female bulkhead connectors provide the RF crossings, with dust caps included.
- 4 Terminal filtered feed through supports 250VAC/20A max or 100VDC/20A max.
- Outside screw terminals and inside 1/4" fast-on lugs give direct access to power wiring.
- Type C format is removable with simple hand tools when the setup changes.
The plate is in stock at $1,605.00 and can support delivery in days with an in-stock enclosure. I verify that only the USB side needs the higher-speed interface before settling the build. If Ethernet also requires LAN10G, the matching LAN10G-USB3 configuration is the appropriate step.
Tell us what connections your device needs.
Tell us what connections you need to your device under test — USB, Ethernet, RS-232, RF connectors, etc. We'll spec it out with you. No cart, no checkout: you send an inquiry and we quote it.
