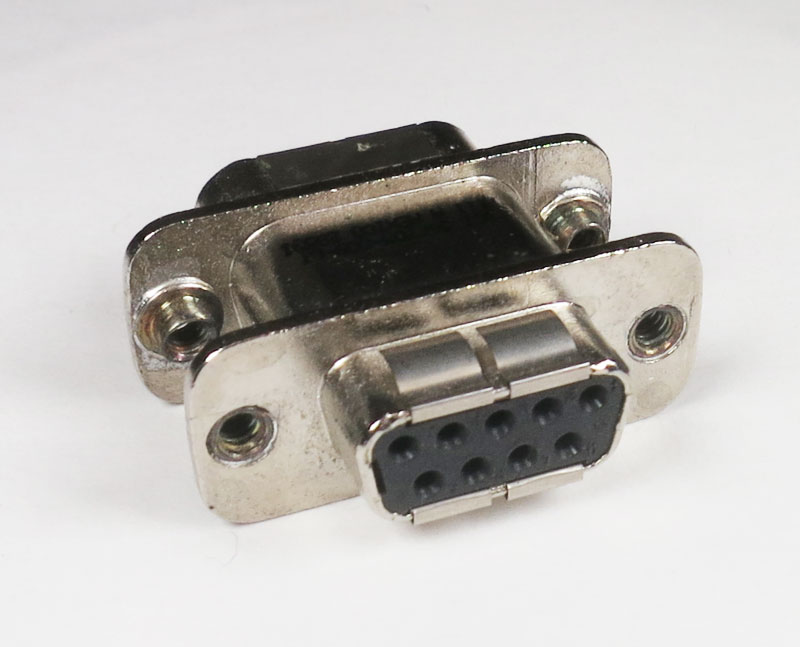

Filtered DB9 Connector
Capacitance-filtered DB9 connector with 100 pF or 1000 pF options for DC and low-frequency signal connections.
Price
$105.00
published · no quote wall
Filtered DB9 Connector specifications
- Isolation
- 50 dB attenuation at 500 MHz and beyond
- Capacitance values
- 100 pF or 1000 pF (specify with order)
Filtered DB9 Connector overview
Available with 100 pF or 1000 pF capacitance, the filtered DB9 connector supports DC and low-frequency power, audio, or control signals, including RS-232/485. Specify the filter value with the order based on the required tradeoff between data rate and isolation. It is not for high-speed USB, Ethernet, or HDMI; use the purpose-built JRE filtered interface for those connections.
