Filtered Banana Jack, 6 Terminals

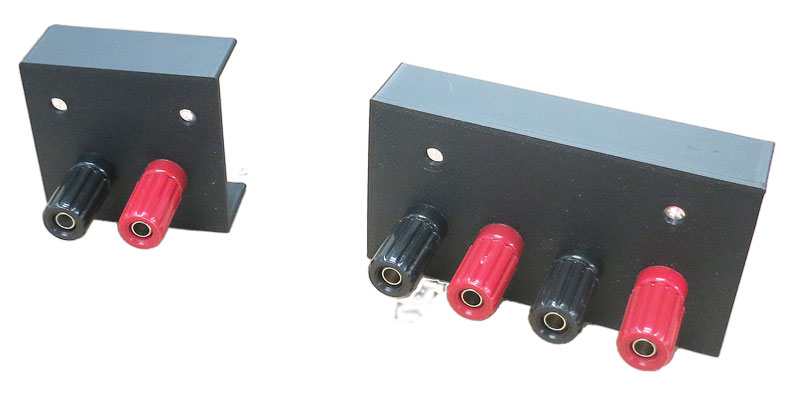

Both the 2- and 4-terminal jack sets are shown for illustration; the 6-terminal set looks the same with 6 jacks.
Accessories · Accessory

Filtered Banana Jack, 6 Terminals

6-terminal filtered banana-jack assembly rated for 20 Amps and 250VAC/100VDC.

Price $257.00 published · no quote wall
Ask an Engineer

Filtered Banana Jack, 6 Terminals specifications

Isolation
greater than 80 dB attenuation at 500 MHz and beyond
Terminals
6
Max Current
20Amps
Max Voltage
250VAC/100VDC
Filter Type
Pi style
Filter Capacitance
2500pF
Attenuation
greater than 80 dB at 500 MHz and beyond

Filtered Banana Jack, 6 Terminals overview

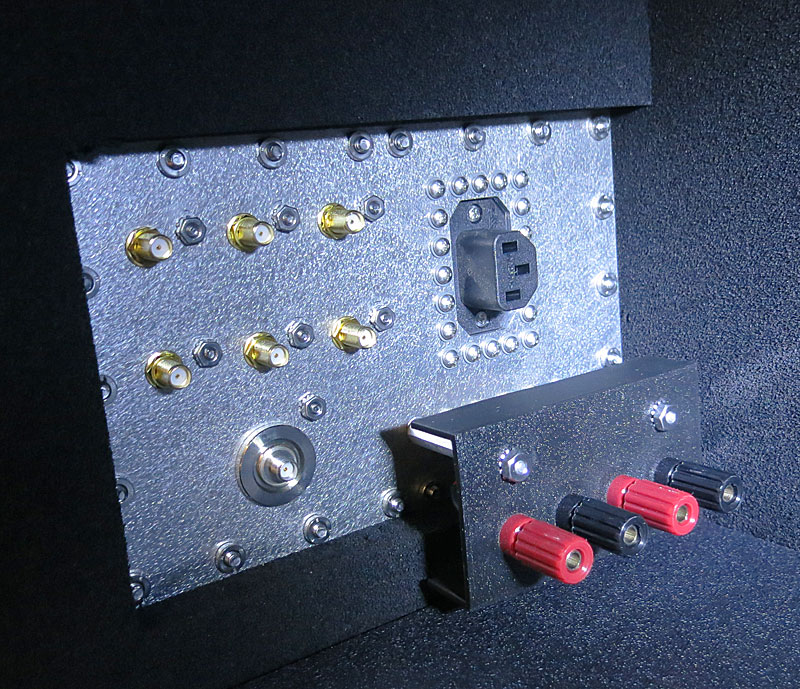

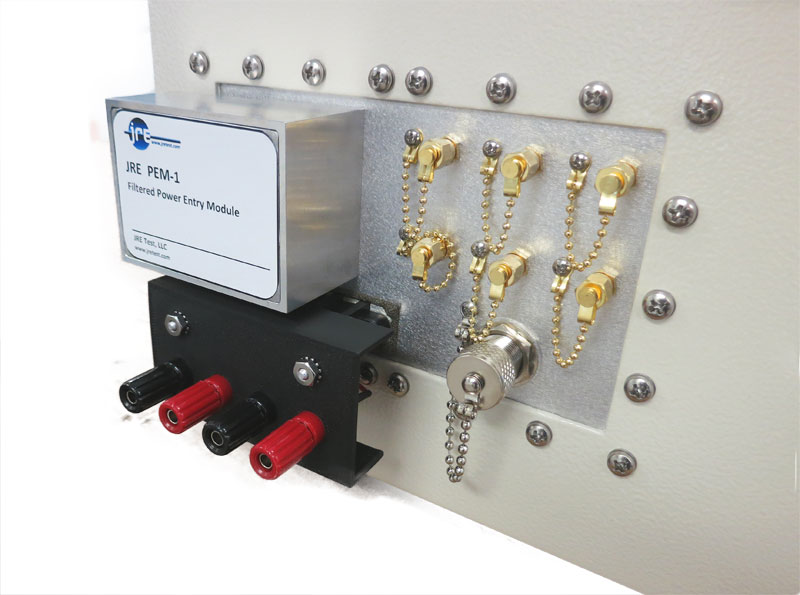

For 6 filtered connections, this assembly places banana jacks on each side of the test chamber and protects the underlying terminal strip with a plastic mount. Ratings are 20 Amps and up to 250VAC/100VDC; the 2500pF Pi-style filter provides greater than 80 dB attenuation at 500 MHz and beyond.
