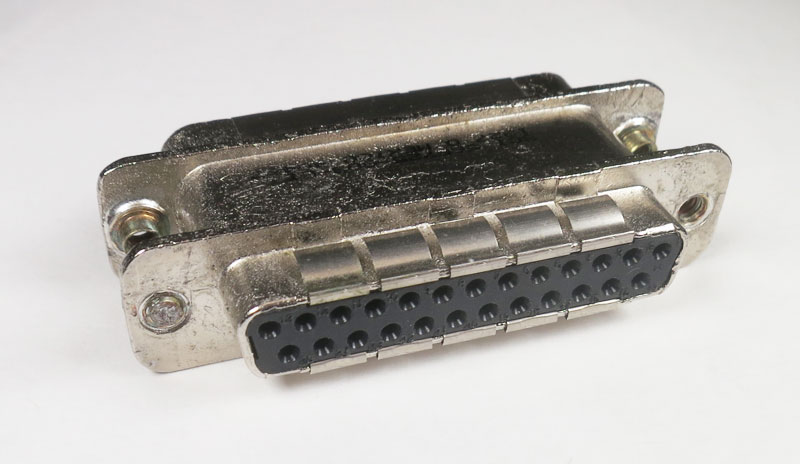

Filtered DB25 Connector

$169.00

DB25 100 or 1000pf connector

SKU: DB25-100 or 1000pf Category:

If you wish a quote, please add your shipping address in the 'Message' field so we may provide shipping cost. If you have particular questions not answered on the web page, please provide details. If you wish a quote, please add your address so we may provide shipping cost. Please note that test chambers do not include any RF connectors or interface filters. Any connections to a device inside the chamber have to be suitably filtered in order to maintain shielding isolation. Be sure to specify any connectors or interface filters needed. If you wish a quote, please add your shipping address in the 'Message' field so we may provide shipping cost.

If you wanted a quote - did you provide your address?

Description

Capacitance filtered DB25 style connector. Available in two capacitance values, 100 and 1000pf (specify with order). Suited for DC and low frequency connections such as power, audio and control signals like RS-232/485. Provides typical shielding isolation of 50dB attenuation at 500MHz and beyond. Not recommended for use when maximum shielding isolation of the test chamber is required. For greater isolation, consider using the JRE UFI-1 Universal Filtered Interface which provides 8 lines of filtered connection.
