4 TERM FILT AC/DC

$118.00

4 terminal feedthru filter

SKU: 4 TERM FILT AC/DC Category:

If you have particular questions not answered on the web page, please provide details. If you wish a quote, please add your address so we may provide shipping cost. Please note that test chambers do not include any RF connectors or interface filters. Any connections to a device inside the chamber have to be suitably filtered in order to maintain shielding isolation. Be sure to specify any connectors or interface filters needed. If you wish a quote, please add your address so we may provide shipping cost.

If you wanted a quote - did you provide your address?

Description

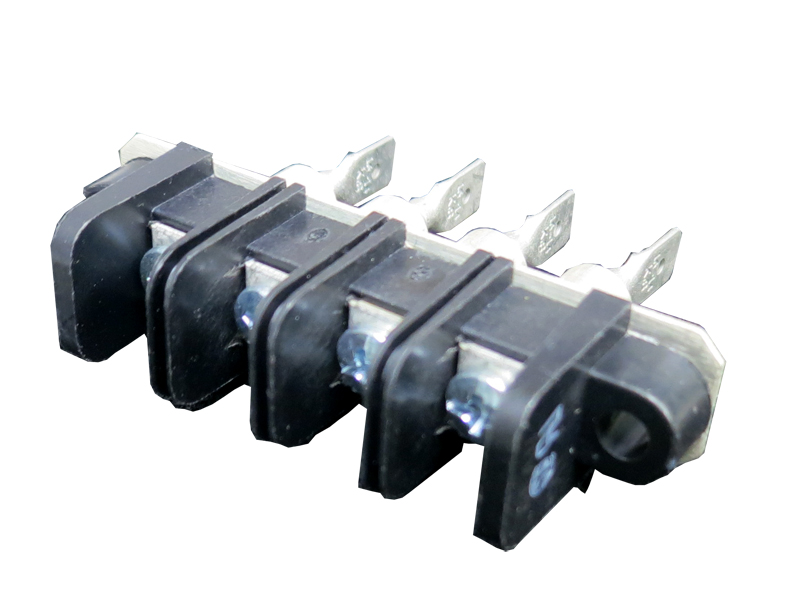

Filtered 4 terminal Pi style feedthru filter with screw terminals on outside and 1/4″ fast-on connector lugs inside. Ideal for DC and low frequency connections such as power, audio and control signals. Capable of both high current (20Amps) and voltages upto 250VAC/100VDC. Filter capacitance of 2500pF. Provides greater than 80dB attenuation at 500MHz and beyond.

Also available with Banana jack connectors on both inside and outside the test chamber. Shown in the pictures is a 4 terminal feedthru with 4 banana jacks to show how the banana jack option is mounted. Note that for a 2 terminal feedthru there would be 2 banana jacks each side, and a 6 terminal feedthru would have 6 banana jacks each side.
