Fast Track Populated I/O Plate — JRE B3-PEM-LAN10G-USB3

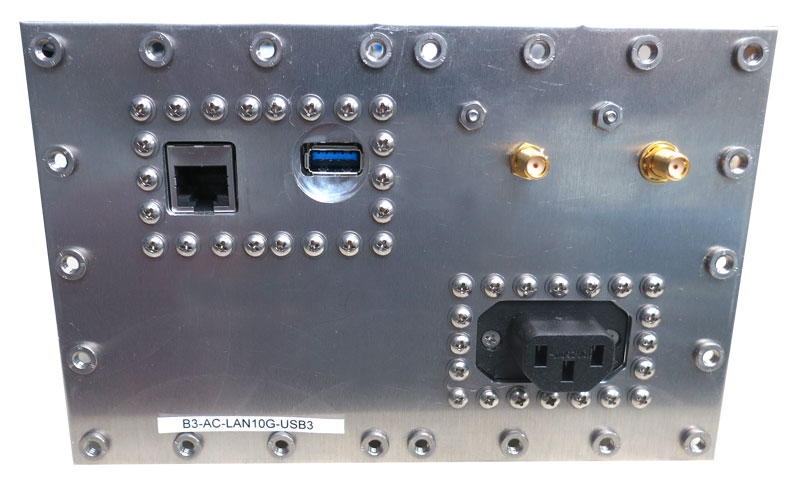

Type B plate with USB3-1/RJ-45 10G filtering, PEM-1 mains entry, and 2 SMA Female bulkheads.
JRE B3-PEM-LAN10G-USB3 specifications
- Part Number
- B3-PEM-LAN10G-USB3
- SMA Connectors
- 2 SMA Female bulkhead connectors
- Filtered Interface
- 1 Dual filtered interface with USB3-1 and RJ-45 10G Ethernet Filters
- Power Entry
- 1 PEM-1 Filtered AC mains power entry module
- Plate Size
- Type "B" I/O plate
- Compatible Enclosures
- JRE 0612CLAM, JRE 0912, JRE 1724, JRE 1729, JRE 1812, JRE 2218
JRE B3-PEM-LAN10G-USB3 overview
B-size plate fit is the first check I make for this dense Fast Track configuration. The B3-PEM-LAN10G-USB3 then brings RJ-45 10G Ethernet, USB3-1, filtered AC mains entry, and two RF paths onto one populated panel.
- 1 dual filtered interface combines USB3-1 with RJ-45 10G Ethernet
- USB3-1 and LAN10G discriminate by mode: differential data passes while common-mode RF is low-pass filtered out
- 1 PEM-1 filtered AC mains power entry module supplies the powered DUT
- 2 SMA Female bulkhead connectors with dust caps carry the RF signals
- Type "B" plate format can be replaced in the field with simple hand tools
- In-stock populated assembly supports delivery in days with an in-stock enclosure
The populated data, power, and RF combination is $1,320.00. Include the enclosure model with the quote request so we can confirm B-size fit before mounting and final-testing the plate. I treat a missing crossing as a signal to change the layout, not to adapt the DUT around it.
