Fast Track Populated I/O Plate — JRE C1-4T-LAN2-USB3-2

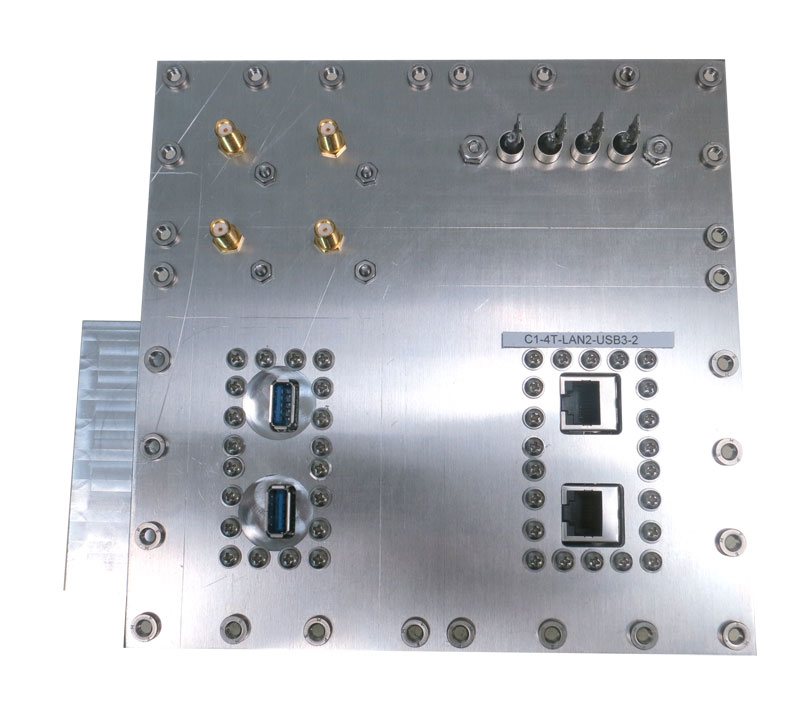

Type C Fast Track plate with dual LAN, dual USB3, 4 SMA Female bulkheads, and a 4 Terminal filtered feed through.
JRE C1-4T-LAN2-USB3-2 specifications
- Part Number
- C1-4T-LAN2-USB3-2
- SMA Connectors
- 4 SMA Female bulkhead connectors
- LAN Interface
- 1 Dual filtered LAN Ethernet interface
- USB Interface
- 1 Dual filtered USB 3 interface
- Terminal Feed Through
- 1 4 Terminal filtered feed through rated at 250VAC/20A max, 100VDC/20A max
- Plate Size
- Type "C" I/O plate
- Compatible Enclosures
- JRE 0814, JRE 0814-2R, JRE 0814-2R-A, JRE 0814-A, JRE 1522, JRE 1714, JRE 1720, JRE 2233, JRE 2525, JRE 2830, JRE 3036
JRE C1-4T-LAN2-USB3-2 overview
SuperSpeed on both USB paths is the deciding detail for this populated plate. I specify the C1-4T-LAN2-USB3-2 when paired standard-network connections, filtered power, and four RF crossings belong beside them.
- 1 dual LAN Ethernet interface uses low-pass filtering for the standard network paths.
- 1 dual USB3 interface discriminates by mode: differential data passes while common-mode RF is low-pass filtered out.
- 4 SMA Female bulkhead connectors carry RF signals through the plate, with dust caps included.
- 4 Terminal filtered feed through is rated at 250VAC/20A max and 100VDC/20A max.
- Screw terminals outside and 1/4" fast-on lugs inside simplify access to the power crossing.
- Type C plate can be changed in the field with simple hand tools.
The $1,985.00 Fast Track price makes sense when all of these interfaces belong in the same build. If the DUT only calls for USB 2, I would use the LAN2-USB2-2 sibling as the more economical match. SuperSpeed earns its place here only when both USB paths require it.
