JRE USB 2-2 Dual USB 2.0 High Speed Filtered Interface

$725.00

Dual channel USB 2.0 filter. Test USB 2.0 compliant devices in a shielded RF Enclosure.

SKU: JRE USB2-2 Category:

Description

Easily test all high speed USB 2.0 devices in an RF Shielded test environment ! Latest design includes new LTE cellular bands.

  • Fully USB compliant with proper USB enumeration!
  • Works with ANY enclosure or screen room
  • Dual channel filter in one housing
  • Passes all USB 2.0 signals while rejecting Cellular, LTE, WiFi and other signals above 700 MHz
  • Over 80 db attenuation > 1 GHz with flat response < 480 MHz
  • Rugged machined aluminum construction
  • Balanced filtering for minimal ringing
  • Excellent RF Isolationion

The USB 2-2 Filter consists of two USB 2.0 compliant low pass filters inside a machined aluminum housing which provides exceptional RF shielding on all data and power lines. The filter is designed to reject frequencies greater than the Cellular frequencies of 700 MHz while passing data and power between a host computer on one side and a USB device on the other.

Fully USB compliant, correct enumeration process ensures any test ‘hiccups’ will be properly exchanged between devices, ie: no hang-ups are undetected, a problem when using fiber optic or other such interfaces!

Each USB interface consists of a balanced pair of bi-directional data lines and an unbalanced power and return pair. Standard USB Type A connectors are used allowing simple and reliable connection to your USB devices. The data line filters pass the up to 480 Mbps of USB Type 1 or 2 data while providing rejection greater than 80dB from 1 GHz through 6 GHz. The power line filters pass the DC power and return while providing rejection greater than 80dB from 400 MHz through 6 GHz. Included are two USB Type A Male to Male jumper cables.

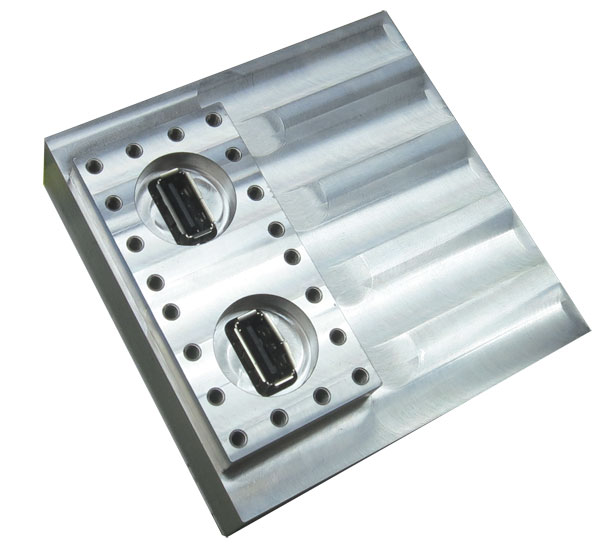

Tight RF shielding to the enclosure wall is assured by the use of a series of 4-40 size mounting screws (template included for stand alone installation). Tests made on competitive filters utilizing a single hole mount with large securing nut were prone to leakage since the coarse thread pitch does not allow a reliable flat seat against the enclosure wall. Additionally, the single mechanical point of securing the filter is subject to loosening and even a tiny loss of tightness results in leakage. Our specifications are measured with the filter installed in an enclosure - and with the same reliability no matter how many times connectors are inserted or the filter bumped or jostled. The smaller size also allows more filters on the I/O plate.

Download datasheet: USB2-2

Download hole pattern: HDMI2, USB2-2, USB3-2 LAYOUT
Mounting screws are 4-40 and included with filter. Clearance hole size is 0.1285" diameter - #30 or 3.3mm drill

Features and Benefits

  • Reduces interference from Cellular and WiFi
  • Dual channel USB 2.0 RF filtered interface
  • Heavy duty machined aluminum case for reliable shielding and ruggedness
  • Multiple points of attachment secures without rotation or loosening
  • Precision designed filtering for minimal ringing on data lines
  • Excellent RF filtering at all wireless frequencies

Specifications

Data Line Balanced Impedance: 90 Ohms typical

Typical Insertion Loss (all eight signal lines):

  • 10 MHz  0.1 dB
  • 150 MHz  1.2 dB
  • 250 MHz  1.5 dB
  • 350 MHz  2.0 dB
  • 480 MHz  3.0 dB
  • 700 MHz  > 70 dB
  • 800 MHz to 6 GHz > 80 dB
  • DC Power lines: 0.1 ohms DC resistance, -3 db @ 10 MHz, -60 @ 100 MHz, -80 db, 400 MHz to 6GHz
Click image to enlarge

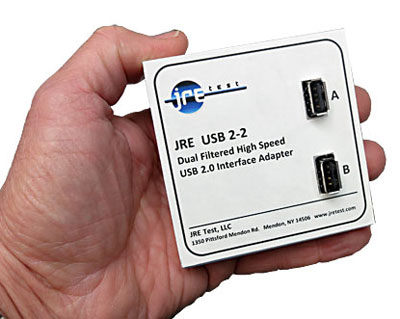

Dimensions

Outside: 3.2" H x 3.2" W x 0.8" D (80 x 80 x 20 mm)

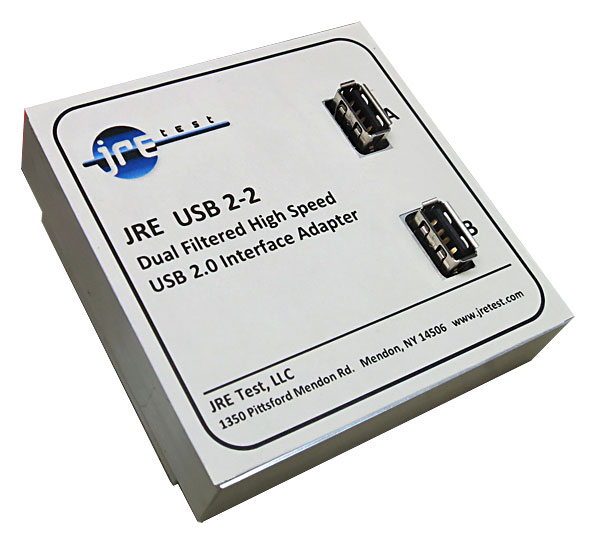

JRE USB 2-2 High Speed Filtered USB Interface Connector

USB Inside: USB 2.0 Type A Female connector

USB Outside: USB 2.0 Type A Female connector

Cable: Type A Male to Male jumper cables included

Power capability: USB standard or up to 50 VDC at 1 amp. DC resistance each leg, 0.1 ohms max.

Compatibility

JRE Test’s RF Shielded Test Enclosures deliver real value and save time over in-house fabricated test solutions. Our fast off-the-shelf delivery, unbeatable price and performance make us the first choice for all your RF test needs. The industry's widest line of enclosures provides superior RF isolation from 10 MHz to over 6 GHz, covering the entire range of popular commercial, private and government communications systems. Whether you are designing, integrating, or conformance testing the next generation Wi-Fi, WLAN, 3G Cellular device, you can rely on JRE Test to provide a seamless solution that is compatible with today’s technology and is ready for the future.
