Forensics Analysis Enclosure — Benchtop — JRE 1812F

Pre-configured for investigation of Smartphones and wireless devices

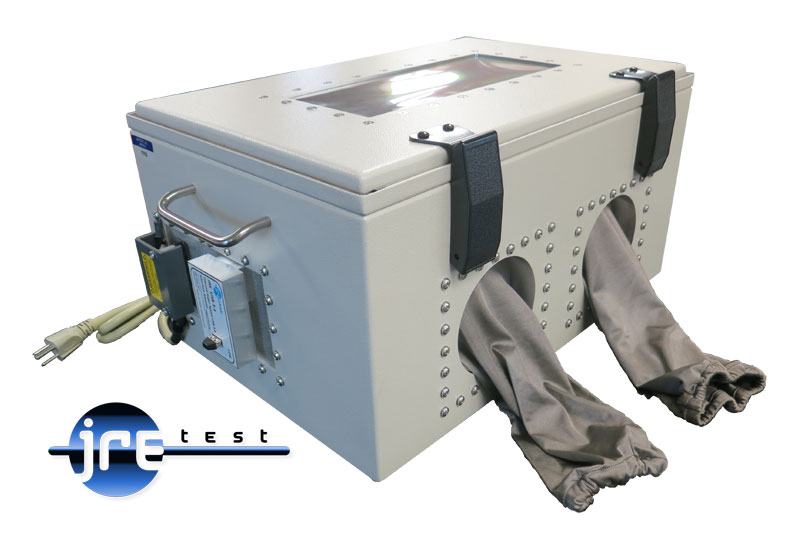

• Choice of hand entry: patented conductive sleeve, or legacy shielded glove entry — both originated by JRE Test's founder
• Easily view device inside, bright LED lighting
• Patented high performance window design
• Includes multiple outlet universal AC power strip
• USB 2.0 filtered interface connection
• Rugged welded aluminum construction
• Dual latches ensure tight RF shielding
• Excellent RF isolation across cellular, Wi-Fi, GPS and Bluetooth bands through 6 GHz

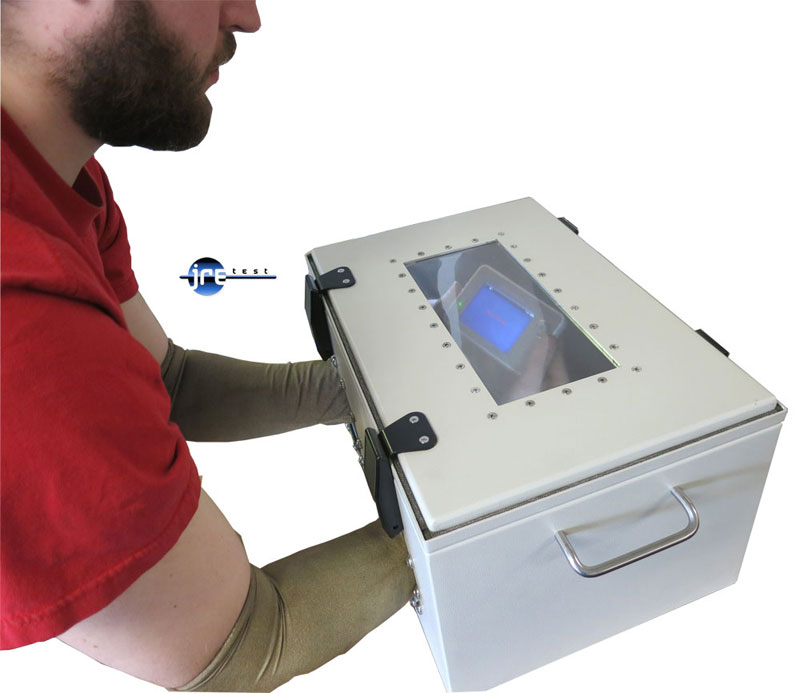

Ideally suited for easy access and control of smartphones, tablets and even small laptop computers in a completely shielded test environment. The 1812F offers your choice of two hand-entry methods, both originated by JRE Test's founder: our patented conductive sleeve design, which lets the examiner work with completely free hands and full tactile feel, or legacy shielded glove entry — the original approach, whose covering patent was sold along with the founder's earlier company and has since expired into the public domain. We continue to offer glove entry because a number of labs prefer it, whether for contamination or trace-evidence handling reasons or simple familiarity. Neither option is a compromise version of the other; tell us which way your examiners work and we'll configure the enclosure that way. Brilliant white LED lighting is provided, allowing clear vision inside the enclosure. A Li-Ion rechargeable battery pack powers the LEDs for many hours and is easily charged using the provided charger. The use of a battery pack does not requiring any additional wiring, filtering or connections on the I/O plate interface.

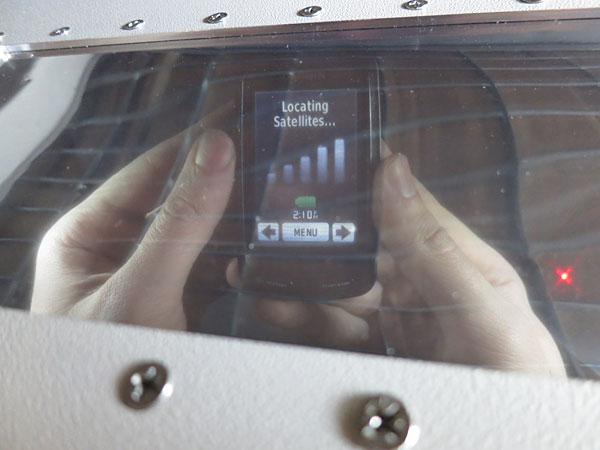

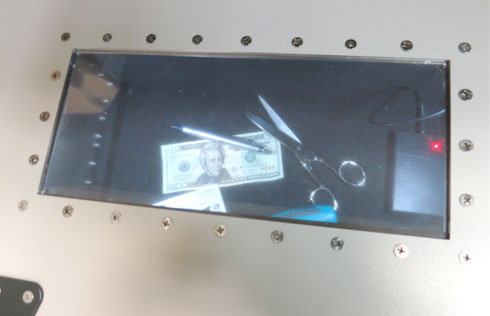

The patented high performance viewing window utilizes a unique lamination of conductive PET plastic layers with novel grounding to provide RF shielding of over 70 db while still allowing a light transmission of greater than 70%.

The included USB filtered interface allows external forensic analysis equipment — including tools such as GrayKey or Cellebrite UFED — to connect to the device inside while filtering out the external cellular, Wi-Fi and GPS signals that would otherwise reach the device; the extraction tool sits outside the shield and reaches the phone through the filtered USB port. JRE Test does not supply extraction tools or services, and is not affiliated with any extraction-tool vendor. The universal power strip allows easy connection for chargers or AC adapters to power the device inside. A shielded 'Faraday' carrier bag is included to allow convenient transfer of the wireless device from point of seizure to investigation within the test enclosure, thus keeping the device safe from any remote shutdown, erasure, 'kill' or GPS location tracking.

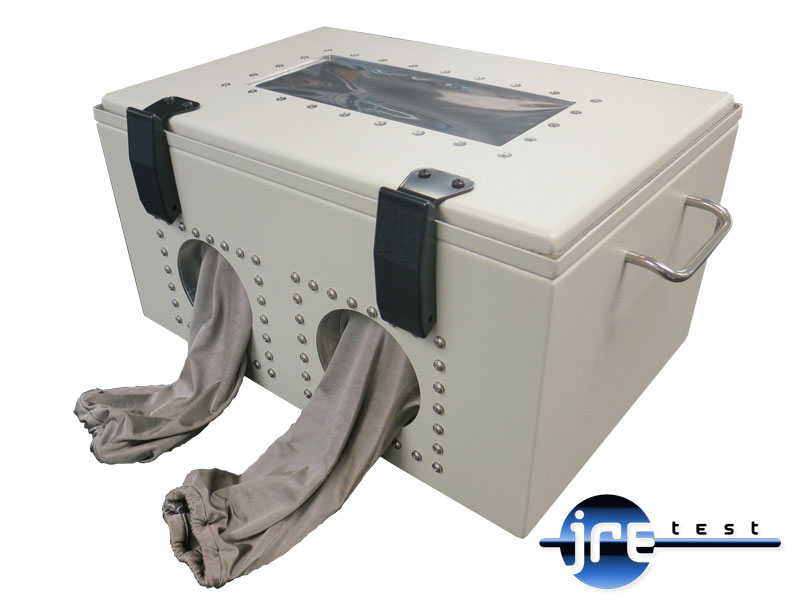

Featuring rugged welded aluminum construction, you can be assured of its tight RF shielding effectiveness. Long life door gasket material along with double edge engagement not only provides solid RF shielding, but smooth trouble-free operation over its lifespan.

Download datasheet: JRE1812F

Patents on this enclosure: Electromagnetic isolation chamber with unimpeded hand entry: https://patents.google.com/patent/US8294044

Low Impedance RF Shielded Window: https://patents.google.com/patent/US9497894

Features and Benefits

• Choice of patented conductive sleeve or legacy shielded glove hand entry
• Pre-configured 'ready-to-operate' with AC power and USB interface
• Internal LED lighting with rechargeable battery pack
• Includes shielded 'Faraday' evidence bag
• Double contact door shields ensures repeatable measurements
• 3/4” (19 mm) thick RF absorbing foam deadens standing waves and reflections. Temperature rating of 90 degrees Celsius, UL 94V-0 flammability rating
• Heavy duty stainless steel friction hinge holds lid steady
• Rugged welded aluminum construction for long life

Connectors

Includes JRE USB 2-1 filtered USB interface and multi outlet AC power strip with filtered power entry. Can be customized with additional I/O connections, uses universal I/O plate (4.5" x 7" 115 x180mm) with incredible connector options. Easily changed in the field for multiple uses. JRE Test "B" size I/O plate.

Dimensions and weights

Shipping weight and dimensions: 20 lbs 9.1 kg 22" x 16" x 13", 560mm x 410mm x 330mm

JRE 1812F Standard I/O Connections

Power connection: Universal AC power 120/240 VAC power strip.

Optional I/O interfaces and connections available

Compatibility

JRE Test's RF Shielded Test Enclosures deliver real value and save time over in-house fabricated test solutions. Off-the-shelf delivery, published per-SKU pricing, and a catalog spanning enclosures, filtered interfaces and populated I/O plates mean you can spec a configuration and get a quote fast. Enclosures cover 10 MHz to over 6 GHz, the range used by today's commercial, private and government communications systems. Whether you are designing, integrating, or conformance testing Wi-Fi, WLAN or cellular devices, JRE Test builds enclosures that are compatible with today's technology and ready for what's next.
