JRE 1724A RF Shielded Test Enclosure

Slim, rack-mountable RF shielded test enclosure — ideal for multiple-unit device tests, with a wide flat footprint and two I/O plates for flat-form-factor devices that need plenty of connections.

• Roomy 5.5 x 15.5 x 22.5 inches inside (140 x 390 x 570 mm) in a wide 17" x 24" footprint just 7" tall
• Excellent RF shielding isolation: −100 dB DC to 1 GHz, −95 dB to 3 GHz, −85 dB to 6 GHz
• Fits on any benchtop or into any standard sliding 19" rack shelf
• Dual removable D-size I/O plates — room for a multitude of connectors and interfaces, reconfigurable as your test needs change
• Large footprint holds multiple devices at once
• Two 'honeycomb' vents — one front, one rear — optional fan available for additional airflow
• Rugged welded aluminum construction with cover stiffeners, made in the USA on our own fabrication line
• Optional MW upgrade extends isolation to 28 GHz for 5G FR2, UWB, and Wi-Fi 6E/7 work
• Please note: test chambers do not include any RF connectors or interface filters. Any connection to a device inside the chamber must be suitably filtered to maintain shielding isolation. See the filtered interface and connector options below.

Flat Footprint, Multiple Devices

Designed for testing devices with a flat form factor that need plenty of I/O, the rack-mountable JRE 1724A is ideal. Similar to our JRE 1724B but not as tall, its wide, low footprint lets you place multiple devices inside at once — handy for batch testing or any setup where several units share the chamber. The dual D-size I/O panels allow for a multitude of connectors and interfaces, and the whole enclosure drops onto a benchtop or slides into a standard 19" rack shelf. The JRE 1724A comes standard with two honeycomb-style vents, one front and one rear; a fan is optional.

Featuring rugged welded aluminum construction with cover stiffeners, you can be assured of its tight RF shielding effectiveness. Long-life door gasket material along with our double-edge contact engagement provides solid RF shielding and smooth, trouble-free operation over the life of the chamber. Our wide selection of I/O connectors allows almost any device to be interfaced inside the enclosure. Inside, LS-30 RF absorbing foam tames reflections and hot-spots so your measurements stay clean and repeatable.

The Removable I/O Plate — Your Chamber Never Becomes Obsolete

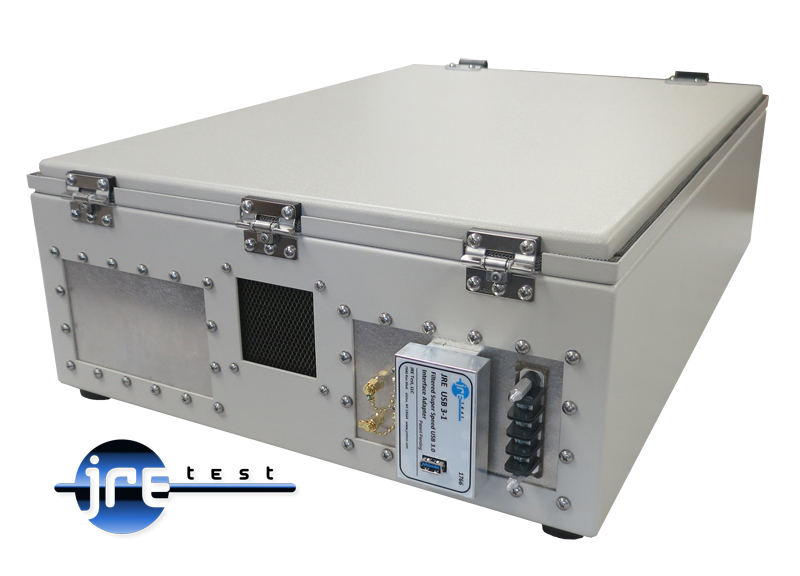

Every JRE chamber uses a removable, CNC-machined I/O plate — a design JRE engineers originated over forty years ago. The two D-size plates recess into the chamber wall and do not intrude into your test volume. Because they swap out in the field with a few screws, one 1724A can be reconfigured for many different test setups over its life. Our wide selection of filtered I/O interfaces — USB, Ethernet, power, HDMI and more — lets almost any device be connected inside while keeping the RF environment sealed up tight. Browse the D-size populated I/O plates for the most common pre-built configurations.

Not sure what connections you need? The Configuration Worksheet is a quick way to organize your interface and connector needs before you order. Tell us exactly what RF connectors and filtered interfaces you require and we will build and final-test your chamber in the exact configuration you will be using.

Download datasheet: JRE1724A

• Double contact door shields ensures repeatable measurements
• 3/4” (19 mm) thick RF absorbing foam deadens standing waves and reflections. Temperature rating of 90 degrees Celsius, UL 94V-0 flammability rating
• Heavy duty stainless steel friction hinges
• Rugged welded aluminum construction for long life
• Includes 'honeycomb' style vents, AC or DC fan optional
• Wide variety of connector options for every use

Two universal I/O plates (4" x 6" 100 x150mm) with incredible connector options. Easily changed in the field for multiple uses. JRE Test "D" size I/O plate.

-100dB from DC to 1GHz, -95dB to 3GHz, -85dB to 6GHz

All JRE Test chambers, and many JRE filtered interfaces, can be optionally ordered to operate to 28 GHz @ > 85dB isolation, contact the factory for details

Outside: 7" H x 17" W x 24" D
180 x 430 x 610 mm
Inside: 5.5" H x 15.5" W x 22.5" D
140 x 390 x 570 mm
Weight: 22 lbs  10 kg
Shipping weight and dimensions: 28 lbs  12.7 kg
31" x 22" x 13", 790mm x 560mm x 330mm

Configuring your JRE RF Test Chamber is simple, fast and easy. Choose from these ready-to-go I/O plates with the most common filtered interfaces and connectors and your test chamber can be shipped in just a few days - or have a custom design in about a week, with whatever connectors and filtered interfaces you desire. To help organize your thoughts on what interfaces and connectors you may need, here is a link to a handy 'Configuration Worksheet'.

See all the Fast-Track, in stock I/O plates with the most common filtered interfaces and connectors here.

Want a different set of connectors or filtered interfaces? Contact JRE with your requirements and a custom I/O plate will be designed expressly for your test chamber. This plate will then be populated with the selected interfaces, mounted on the test chamber, final tested and then shipped to you. Other options such as fans, vents. internal AC power strips, fiber optic connectors can all be accommodated. JRE’s extensive inventory allows us to ship your custom configured test chamber in as little as one week!
